Thermal Arc 500 - 8.05 Front Panel Parts (Power-Master 500 and 350)

POWERMASTER 500, 500P, 350, 350P
March 17, 2006
8-5
WARNING
POWER
10A
REMOTE
LOCAL
CONTACT
OR
10
3
13
11
2
4
8
1
5
6
9
7
12
12
Art # A-06929

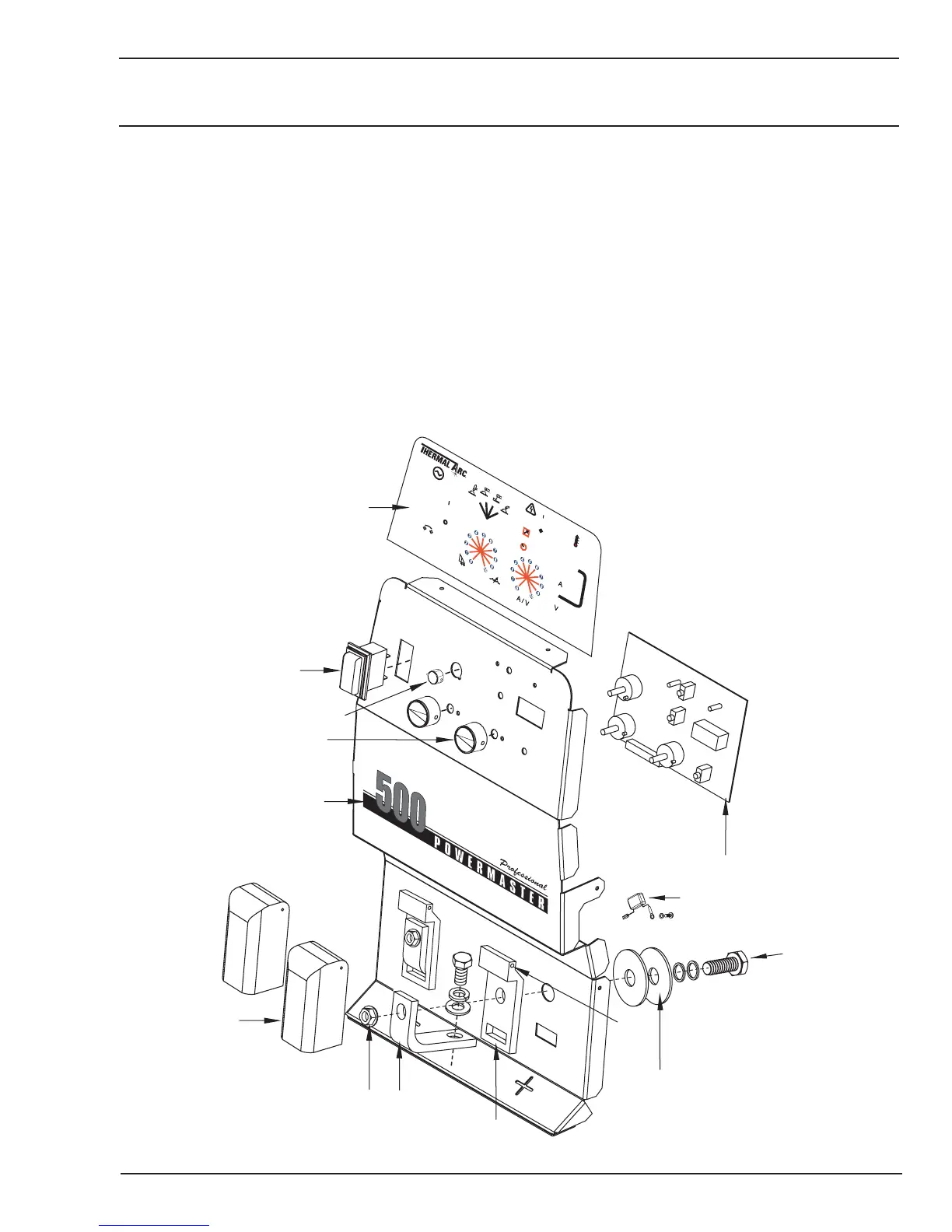

8.05 Front Panel Parts (Power-Master 500 and 350)
ItemItem
ItemItem
Item
QtyQty
QtyQty
Qty
..
..
.
DescriptionDescription
DescriptionDescription
Description
Part NumberPart Number
Part NumberPart Number
Part Number
1 1 PCB,Non-PulseDisplay, PM, IPS 830906
2 2 Capacitor, 47nF 630V, PM, IPS 707158PKD
3 2 Bushing, Insulator, PM, IPS 357654
4 2 Bus Stud Cable, PM, IPS 5CW974
5 2 Nut, Hex, 1/2"-13 400614-001
6 2 Screw,Hex HD,1/2"-13x1.75" 351505
7 1 Circuit, Breaker, 10A, 2 Pole 830362
8 2 Knob,Control,1/4" IDx1.6" 870696PKD
9 1 Knob,Control,1/4" IDx.57" 870734
10 2 Cover, Terminal 357655
11 2 Pin, Roll 1/8" x 2", PM, IPS 831125PKD
12 1 Overlay,Front Controls PM500 831073PKD
12 1 Overlay,Front Controls PM350 831138PKD
13 4 Washer,Insulation,Flat,PM,IPS 5CW976A
