Thermal Arc 500 - 8.10 Center Chassis Parts

POWERMASTER 500, 500P, 350, 350P
8-12
March 17, 2006

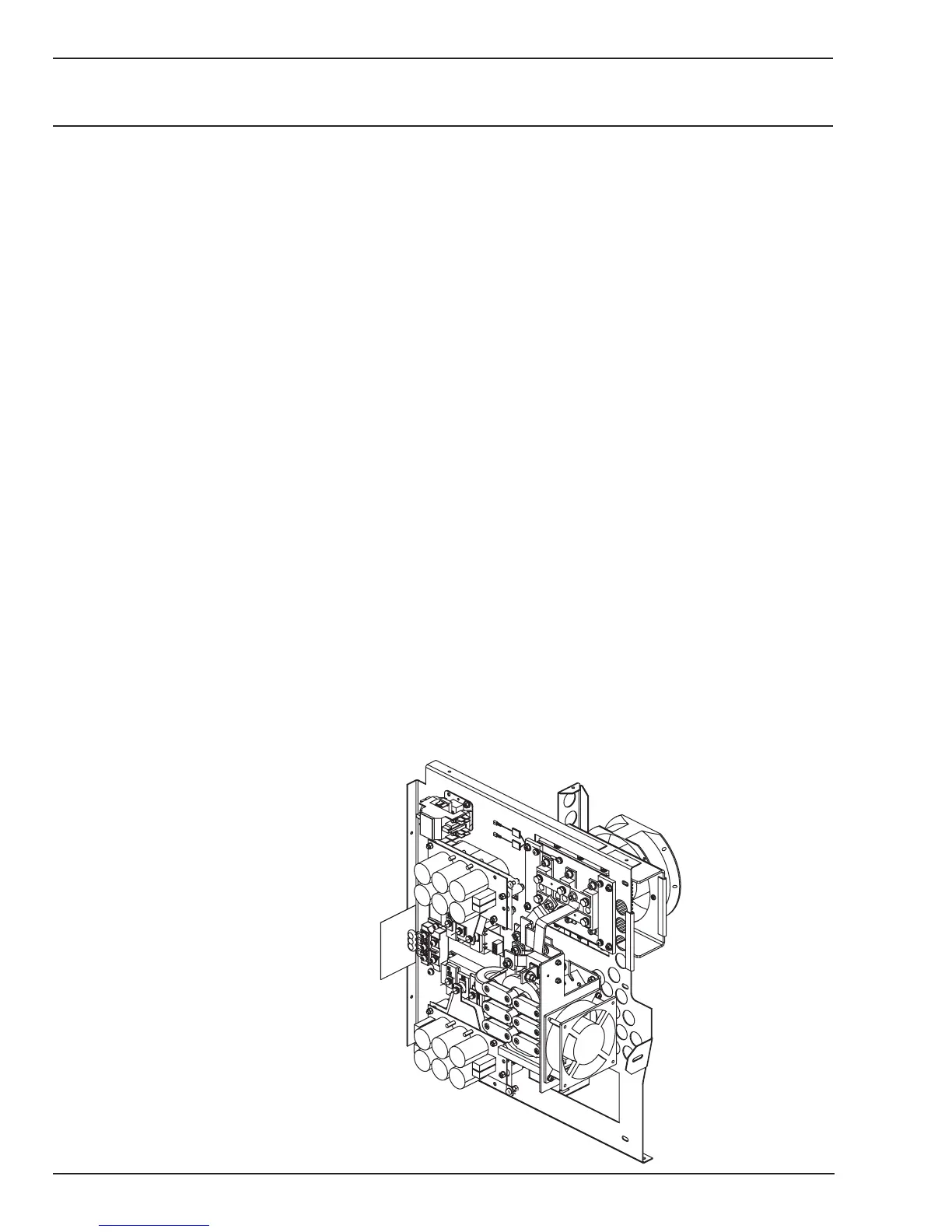

8.10 Center Chassis Parts
ItemItem
ItemItem
Item
QtyQty
QtyQty
Qty
..
..
.
DescriptionDescription
DescriptionDescription
Description
Part NumberPart Number
Part NumberPart Number
Part Number
1 2 PCB,Capacitor,Neg,“B”, PM, IPS 830413
2 2 PCB,Capacitor,Pos,“B”, PM, IPS 830414
3 1 Capacitor,Snubber,2x47nF,IPS 707159PKD
4 1 Contactor,40A,2 Pole, PM, IPS 406241-002
5 2 Diode,Dual,320A,400V, PM, IPS 830358
6 2 Fan, Cooling, 6", PM, IPS 830353
7 1 Fan, Transformer,4", PM, IPS 830360
8 1 Heatsink,IGBT, PM, IPS 707107
9 2 IGBT Module Assembly, PM, IPS 830962
10 1 Rectifier,1600V,100A, PM, IPS 830911
11 1 Sensor, Current, 500A, PM, IPS 205018-001
12 3 Suppressor,1350V,50A, PM, IPS 202258-006
13 1 Thermostat Assy,85°C, PM, IPS 830934
14 1 Transformer, Current, PM, IPS 830351
15 1 Transformer, Inverter, PM, IPS 830912
16 1 Thermostat Assy,85°C, PM, IPS 831194
17 2 Screw, PHCR, M4-.7x50,STZC See Note 1
18 8 Nut, Hex, 1/4"-20, Keps See Note 1
19 2 Nut,Hex,1/4"-20,conical washer See Note 1
20 1 Screw, Hex M8-1.25x20, STZP See Note 1
21 2 Screw,PHCR,M5-.8x20mm,blinding See Note 1
22 6 Screw,Hex HD,M5-1.4x13 STZC See Note 1
23 8 Screw, PHCR, M5-.8x50, STZP See Note 1
24 6 Screw, Hex HD,1/4-20x.5" See Note 1
25 4 Screw, SHC, 1/4-20x5/8" See Note 1
26 8 Screw,PHCR,M6-1.0x16mm,STZP See Note 1
27 4 Screw, PHCR, #10-32x3/4" See Note 1
28 1 Bracket, IGBT Fan,PM,IPS 830898
29 1 Heatsink,Output Diodes,PM,IPS 830896
30 1 Bracket,Diode Fan,PM,IPS 830806
Note 1:
This part is available at most hardware stores.
Art # A-06940
