Thermal Arc 500 - 8.07 PC Board Parts

POWERMASTER 500, 500P, 350, 350P
8-8
March 17, 2006
8.07 PC Board Parts
ItemItem
ItemItem
Item
QtyQty
QtyQty
Qty
..
..
.
DescriptionDescription
DescriptionDescription
Description
Part NumberPart Number
Part NumberPart Number
Part Number
1 1 PCB, Control, PM, IPS 830894
2 1 Cable,Ribbon,26 P,13", PM, IPS 204038-002
3 1 Cable,Ribbon,16P,20", PM, IPS 204038-012
4 1 Contactor,30A,2 Pole, PM, IPS 406240-002
5 1 Resistor,50 Ohm,50w,QC,PM,IPS 830394
6 2 Resistor,10 Ohm,55W, PM, IPS 830345
7 1 Transformer, Control, PM, IPS 830336
8 4 Rivet,4mmx6.4,BLIND STEEL See Note 1
9 2 Screw,PHCR,M4-.7x30mm,STZP See Note 1
10 4 Rivet,4mmx6.4,BLIND STEEL See Note 1
11 2 Nut, Hex, M4x.7, STZP See Note 1
12 2 Rivet,4mmx6.4,BLIND STEEL See Note 1
13 2 Screw,Hex HD,M5-1.4x13, STZC See Note 1
14 2 Nut, Hex, M4x.7, STZP See Note 1
15 4 Washer,4.4mm,Int Lock See Note 1
Note 1:
This part is available at most hardware stores.
5
4
13
1
12
10
8
6
7
8, 15
14
9, 15
3
2

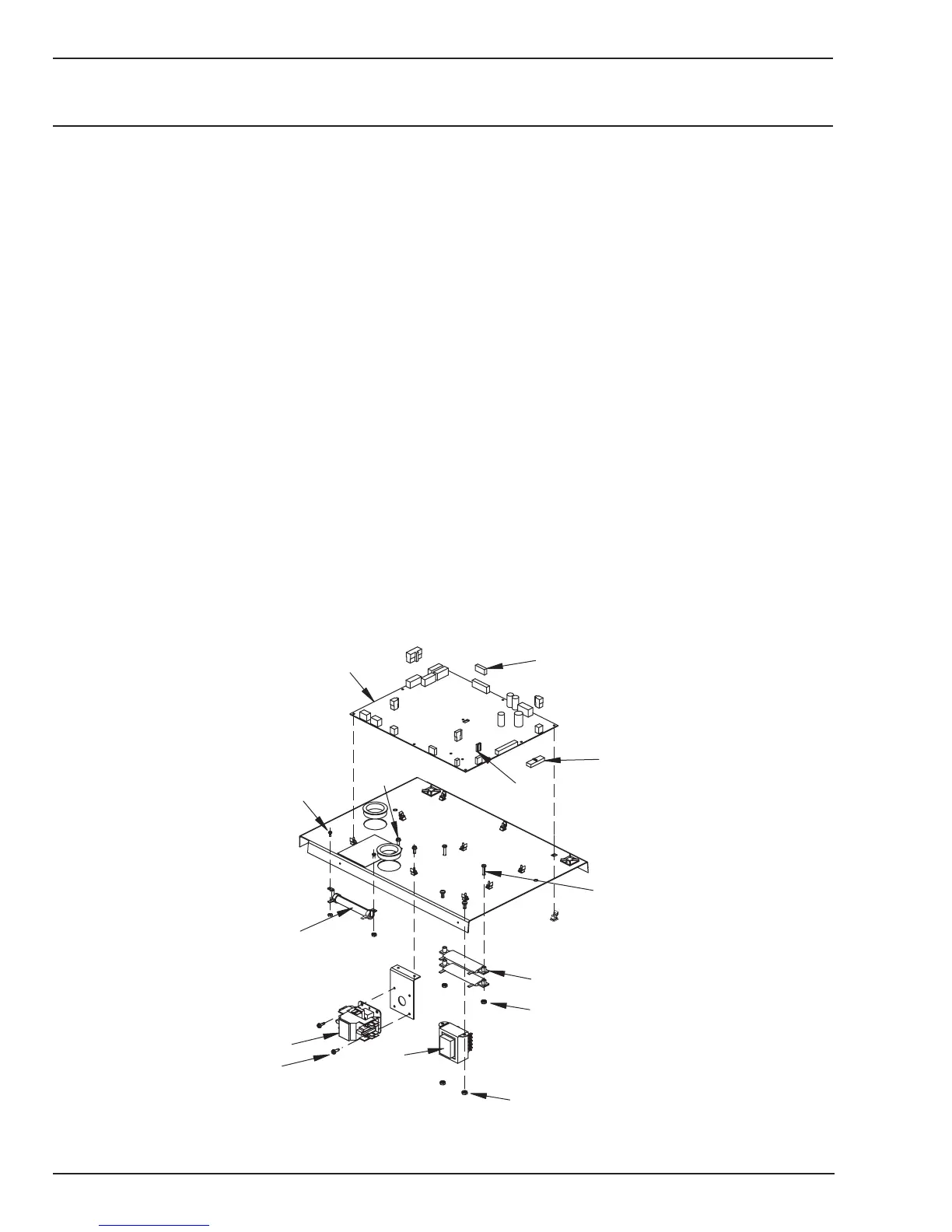

Art # A-06934
