APPENDIX A-14 Manual 0-2725

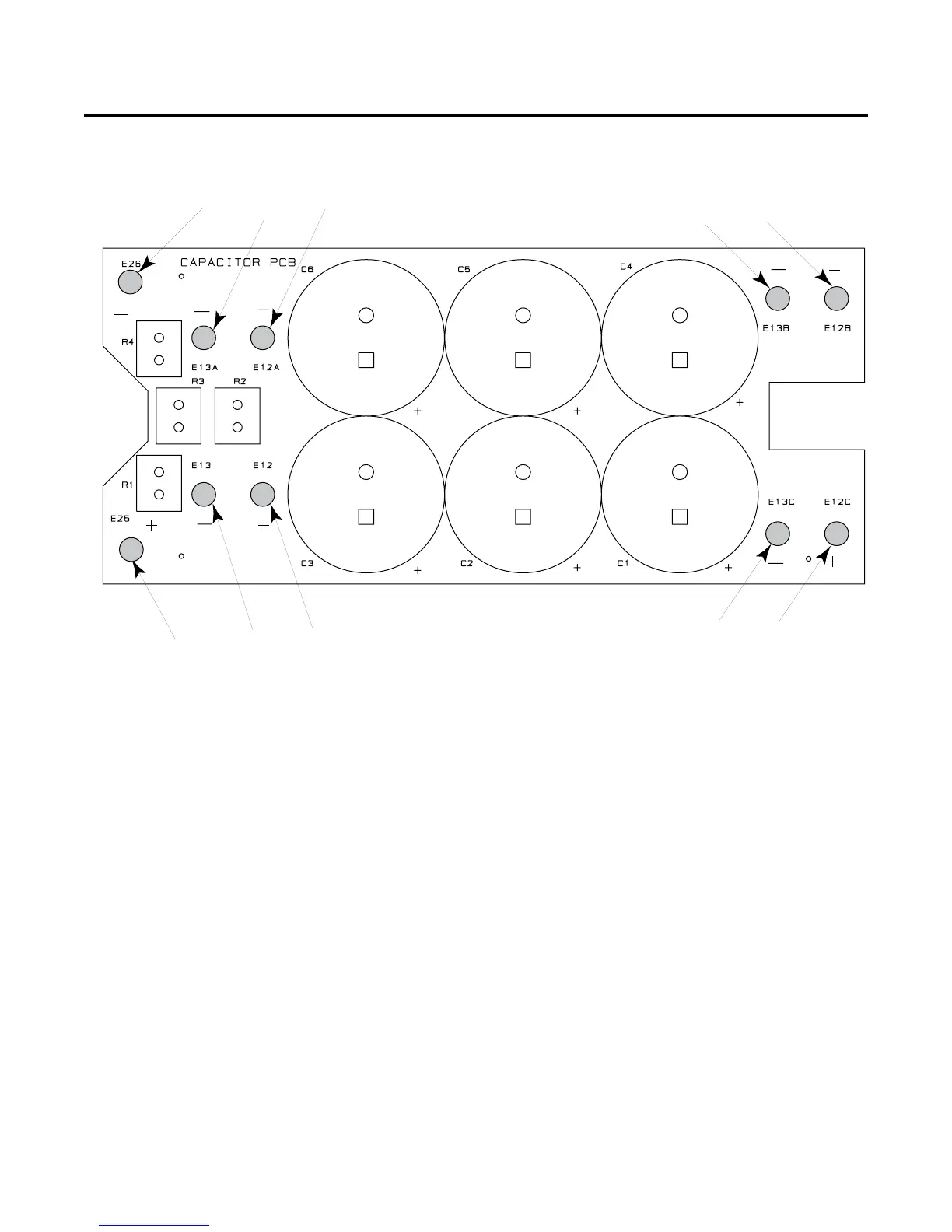

APPENDIX 10: CAPACITOR PC BOARD LAYOUT
E26
E25
E13B
E12B
E12CE13C
E12A
E13A
E12
E13
A-00484
Capacitor PC Board Signals
E12 Positive Rail to FET Board
E12A Positive Rail to FET Board
E12B Positive Rail to FET Board
E12C Positive Rail to FET Board
E13 Negative Rail to FET Board
E13A Negative Rail to FET Board
E13B Negative Rail to FET Board
E13C Negative Rail to FET Board
E25 Positive Input from Input Board (+) SCR Cathode
E26 Negative Input from Input Board (-) Rectifier (-)
