Thomas 95 User Manual

2-49
2
C2293
C2292
C2290
C2289

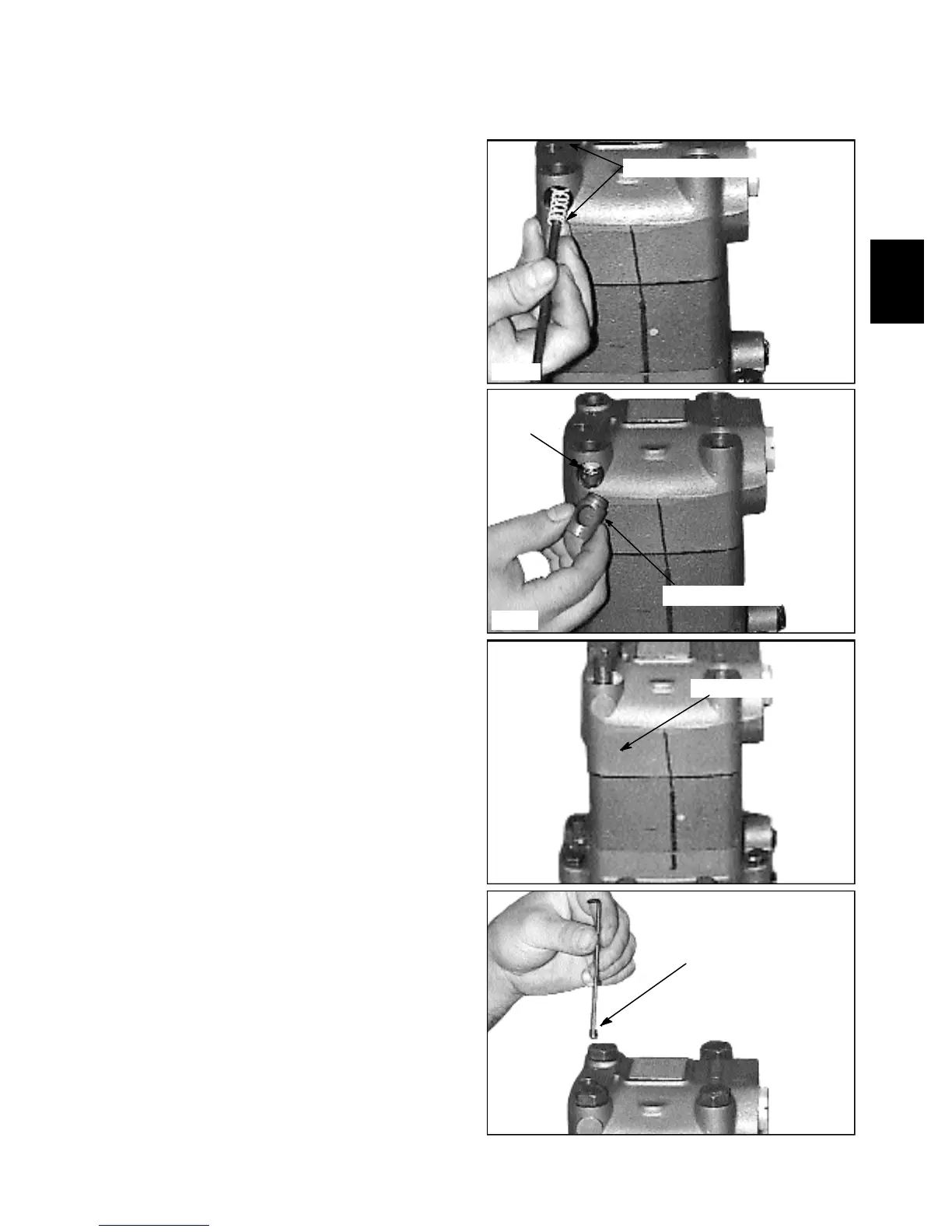

Assembly (cont’d)
DRIVE MOTOR 2.12
25 Install the shuttle valve springs to either side of the
piston. (fig. C2293).
26 Install the shuttle valve plugs. (fig. C2292) Be sure to
use new seals when assembling the motor.
28 Install the restrictor and replace the plug. (fig.
C2289).
27 Install the bolts to the drive motor and torque in a
criss cross pattern to 135 lbs / ft. (183 Nm).( fig. C2290).
Restrictor
Torque bolts
Shuttle valve plug
Seal
Shuttle valve springs
