3-3
LUBRICATION 3.2
Checking The Oil Level
The loader has 2 independent final drive housings. When
checking the oil level, ensure the loader is on a level sur-
face.
1 Remove any attachment, raise the boom arms and
engage the boom support pins. Shut off the engine.
2 Remove the top (upper) check plug located between
the 2 tires at the very front of the loader. (fig. C597)
The oil level should be at the top of the check hole with a
little to trickle out.
Adding Oil
Oil should be added with the loader on a level surface.
1 Remove any attachment, raise the boom arms and
engage the boom support pins. Shut off the engine.
2 Remove the seat and hydrostatic shield (fig. C2358).
3 Remove the vented oil filler plug (fig. C2360).
4 Add 10W30 API classification SE/CD oil until it
begins to flow out the upper check hole. Total final drive
housing capacity per side is 7 liters (1.9 gal).
6 Replace all plugs. Apply thread sealant to vented
filler plug (fig. C2279).
Changing The Oil
Ensure the loader is on a level surface before changing
the oil.
1 Remove any attachment, raise the boom arms and
engage the boom support pins. Shut off the engine.
2 Slide a drain pan under one of the lower drain plugs
located at the front of the loader, between the 2 front
wheels. (fig. C597) Be prepared to contain 7 liters (1.9
gal) of oil.
3 Remove the drain plug. Allow the oil to drip com-
pletely out of the final drive housing. Replace the drain
plug . Dispose of the waste oil in an environmentally
friendly manner. If the oil is contaminated, remove the
side inspection cover to flush the housing.
4 Replenish the oil as outlined above in Adding Oil
with 10W30 API classification SE/CD oil.

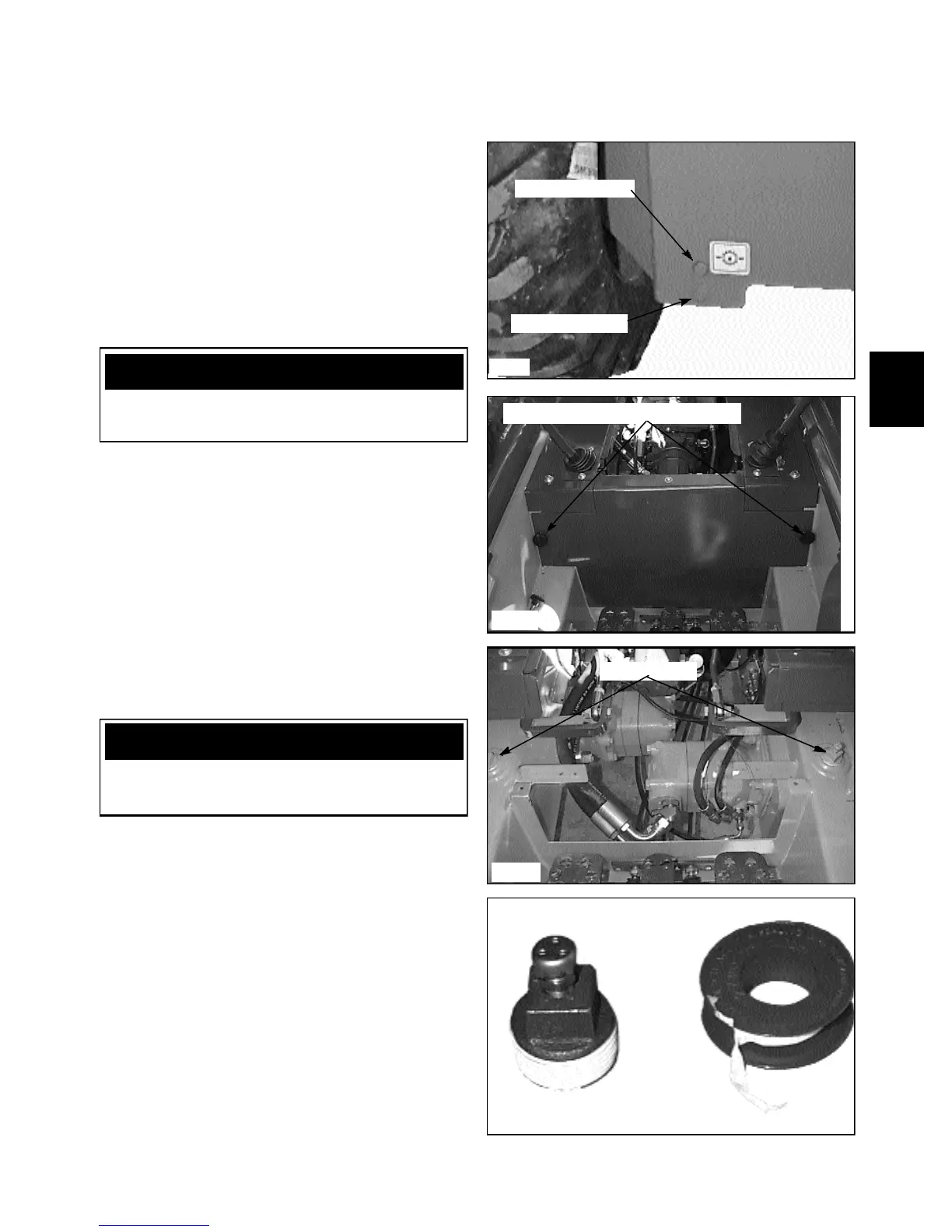

C597
Upper check plug
Lower drain plug
C2360
Oil filler plugs
C2358
Remove seat and hydrostatic shield.
WARNING
Never work under a raised boom arm without the
boom supports engaged and the engine shut off.
WARNING
Check the final drives closely for damaged seals or
other leaks if the oil level is excessively low.
C2279
Apply thread sealant to plug
