1-2

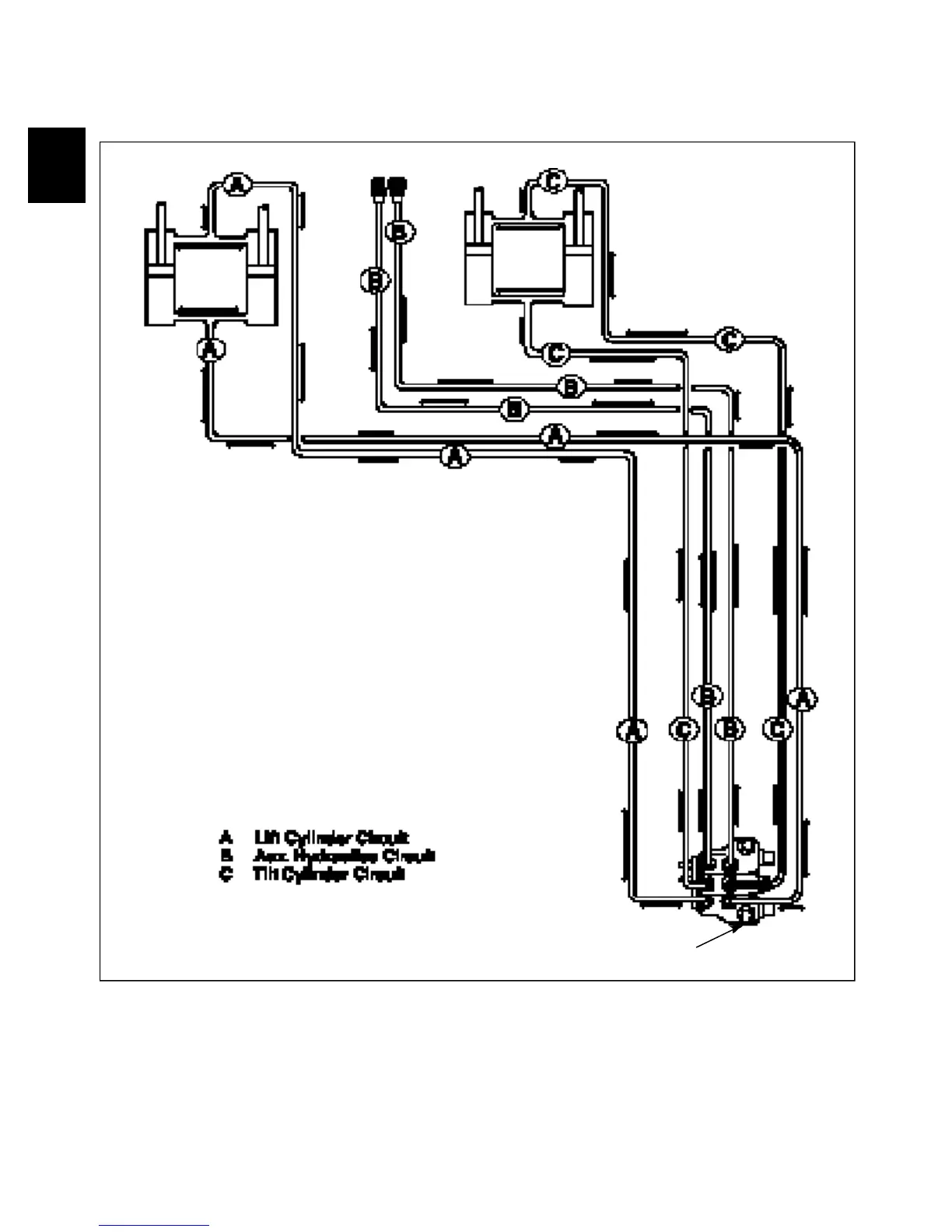

HYDRAULIC CIRCUIT 1.1
C1008
Lift Cylinders Tilt CylindersAuxiliary Couplers
Control Valve Outlet
NOTE: Foot pedal control operated machine illustrated. Hydraulic fluid comes out the port closest to the spool
end of the valve when the spool is pushed in.
Hydraulic fluid received at the fixed end of the cylinder
pushes it out. When the hydraulic cylinder receives fluid
at the ram (rod) end, it retracts.
1

Thomas 95 Specifications

General

Brand	Thomas
Model	95
Category	Compact Loader
Language	English
