AXLE ASSEMBLY 3.5
Axle Stud Replacement
1 Lower the boom arms and shut off the engine.
2 Raise and block clear of the surface the loader side of
the loader the wheel studs are to be changed on.
3 Remove the wheel the studs are to be replaced on.

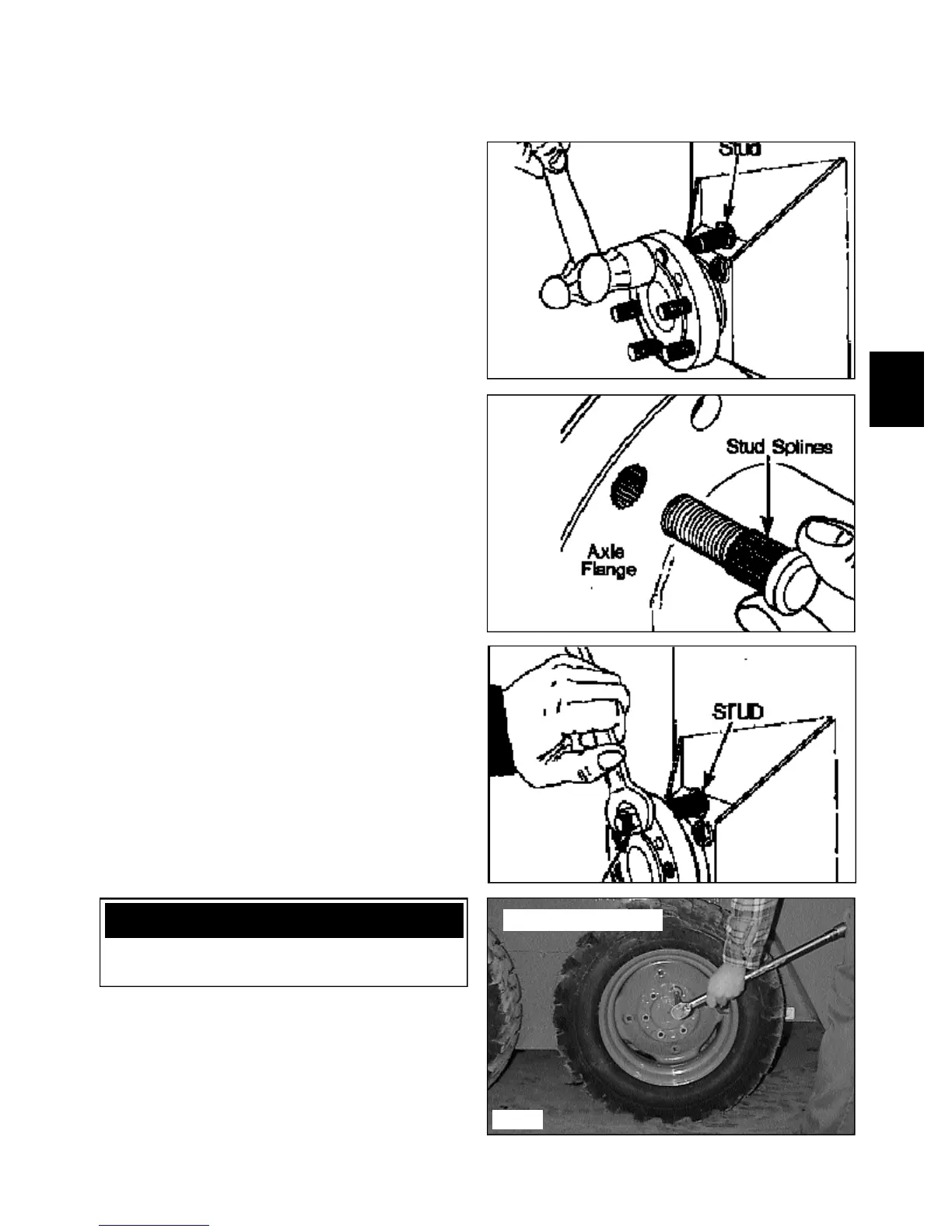

4 Remove the damaged or broken stud by rotating the
axle so the damaged stud is at the 12:00 o’clock position
as shown in fig. C209. The axle “tower” is relieved, or
notch, in this location to allow stud removal without
removing the axle assembly.
2 Strike the stud with a hammer to remove from the
axle flange. (fig. C209).
3 Place a new stud in position behind the axle flange.
Line up the splines on the stud with the splines cut into
the axle flange. (fig. C210).
C209
C210
C211
4 Place a wheel nut on the stud and use it to draw the
stud into place in the axle flange as you tighten it. (fig.
C211)
5 Replace the wheel and torque the wheel nuts to 100
to 110 lbs/ft. (135 to 149 nm)
C1658
Torque wheel nuts daily
IMPORTANT
Torque the wheel nuts daily to prevent stud and/ or
wheel damage.
