Thomas 95 User Manual

1-28
1
CONTROL VALVE 1.3
C2251
C2252
C2238
C2242
Center return cover
Tapered
cup
Detent ball carrier
Spool spring
and bushings
Spool
Detent
Beveled seal washer
Spool O-ring
Disassembly Repair (cont’d)

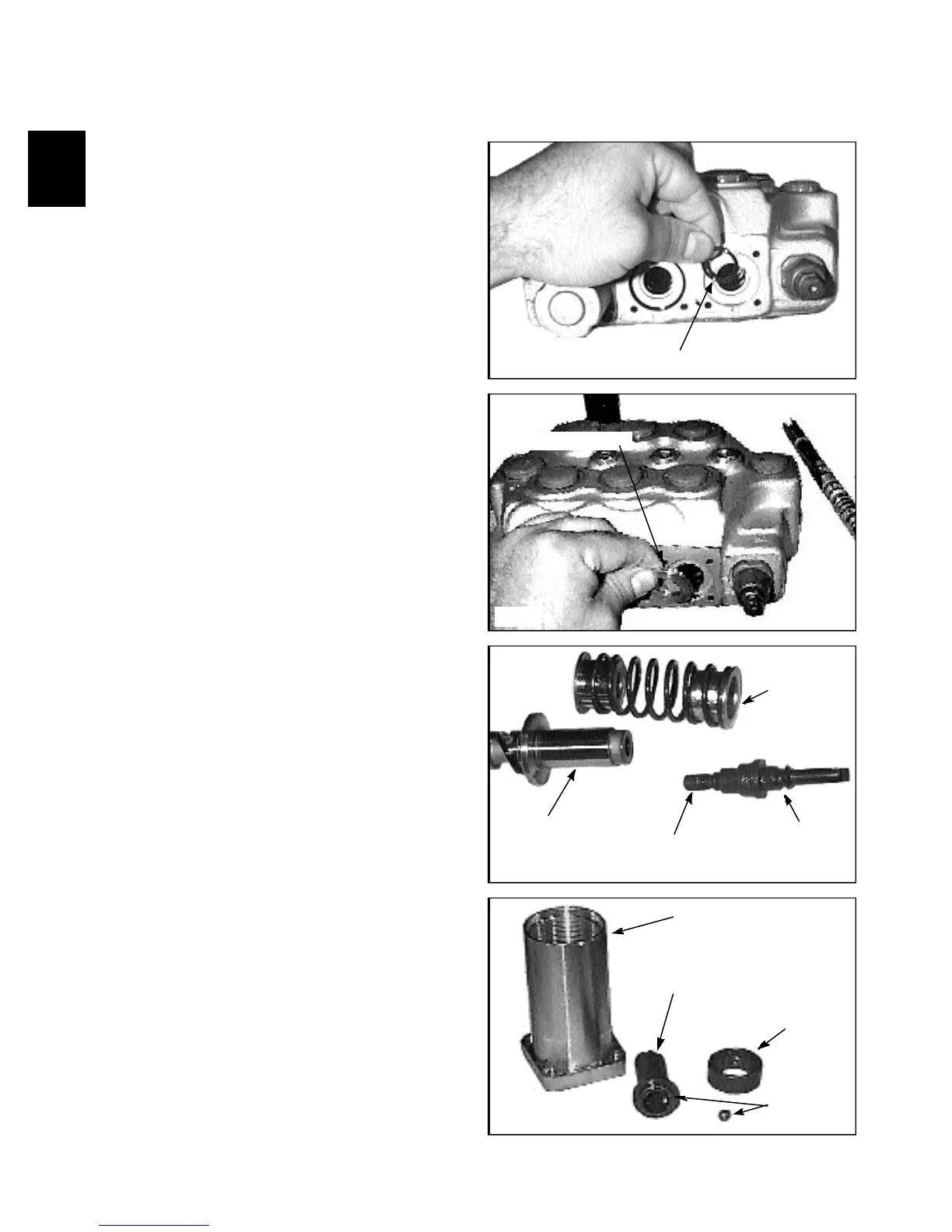

8 When replacing the spool to the control valve, use
new O-ring seals and apply system oil to the O-rings and
spools. (fig. C2251).
Apply Loctite 542
Detent balls
10 Photographs C2238, C2242 are exploded views of
the lift spool detent mechanism. Place the cable end of
the spool in a vice, or insert a screw driver through the
clevis pin holes, to keep it from turning. The detent is
threaded to the spool and can be removed for inspection
or repairs.
Replace broken springs, worn detents and / or damaged
detent balls with a new detent kit.
Apply Loctite 542 to the threads of the detent when
installing to the spool.
Apply Castrol “Spheerol” TN grease to the inside of the
spring cover.
9 Fit the seal washer to the control valve with the
beveled side of the washer facing the control valve. (fig.
C2252) Fit the spool to the control valve now if repairs
are not needed to the detent or spring return mechanism.
Use system oil to lubricate the spool before inserting to
the control valve.
