Thomas 95 User Manual

1-35
C127
C130

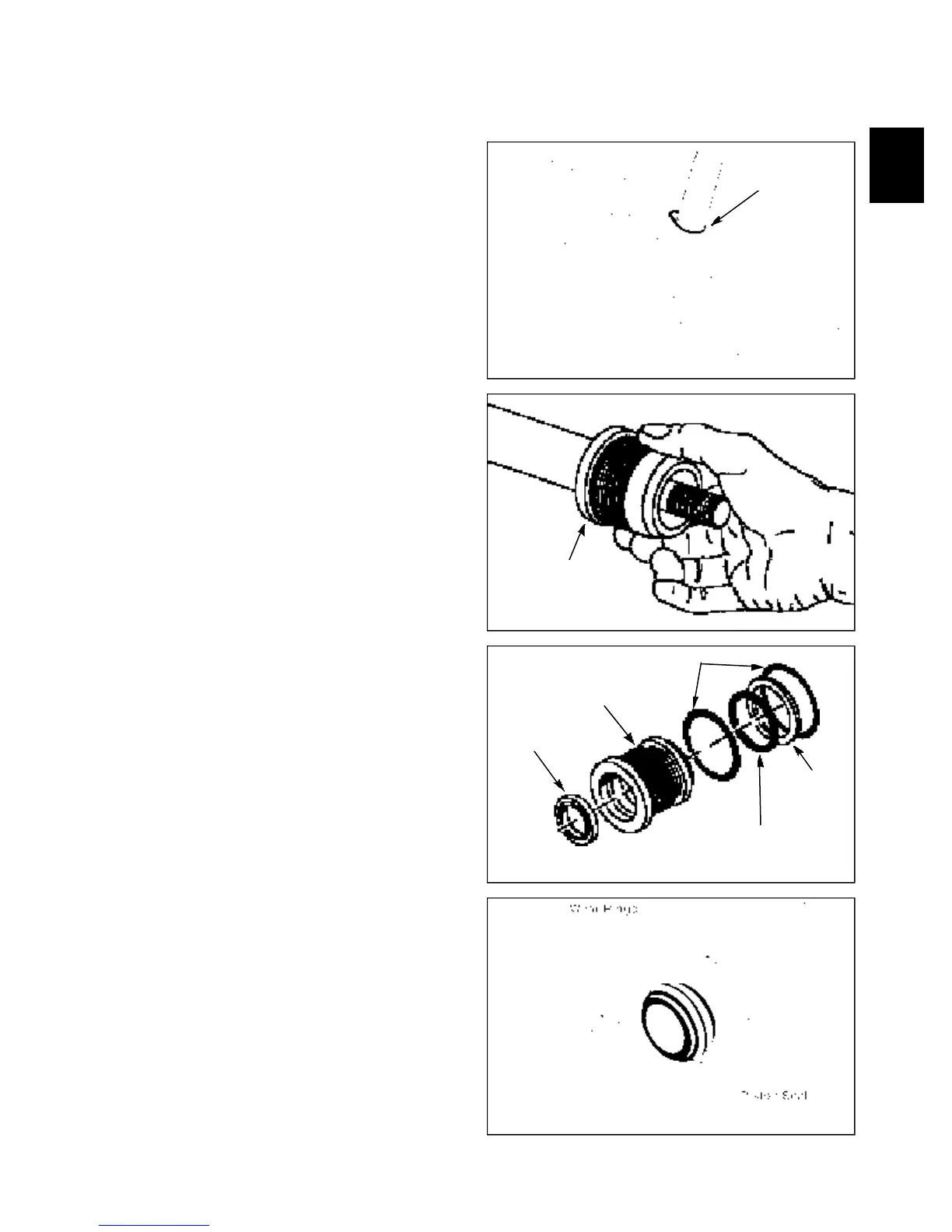

11 Remove and discard the wear rings and piston seal
from the piston assembly. (fig. C130)
10 Remove and discard the wiper seal, rod seal and o-
ring seals and teflon back up washer, (if used), from the
gland nut assembly. (fig. C612) NOTE: Some seal
designs may vary from illustration
9 Remove the gland nut assembly from the cylinder
rod. (fig. C330)
8 Depending on the design of the rear piston, non
threaded type, remove and discard the o-ring seal from
the end of the cylinder rod. (fig. C127)
C330
C612
Wiper seal
Gland o-ring
Back up
washer
Rod seal
Gland nut
HYDRAULIC CYLINDERS 1.4
O-ring seal
Gland nut
1

Thomas 95 Specifications

General

Brand	Thomas
Model	95
Category	Compact Loader
Language	English
