8 Install the adapter fittings to the drive motor.
9 Install the brake lines to the drive motor. (fig.
C2360a)
10 Install the high pressure drive hoses. (fig. C2360b)
11 Clean the final drive housing and inspection cover
thoroughly before applying silicone sealant. (fig. C2424)
12 Install the inspection cover. When installing the nuts,
do not over tighten. The mounting torque should not
exceed 11 lbs / ft. (15 N.m.)
14 Start the engine and check for hydraulic leaks. Do
not use your hands to trace hydraulic leaks. Shut off the
engine and inspect each fitting for proper torque.
15 Install the wheels and torque the nuts at 100 to 110
lbs / ft. (136 to 149 nm.)
16 Install shields and seat, let loader down to ground
and test drive to check performance.
DRIVE MOTOR 2.12

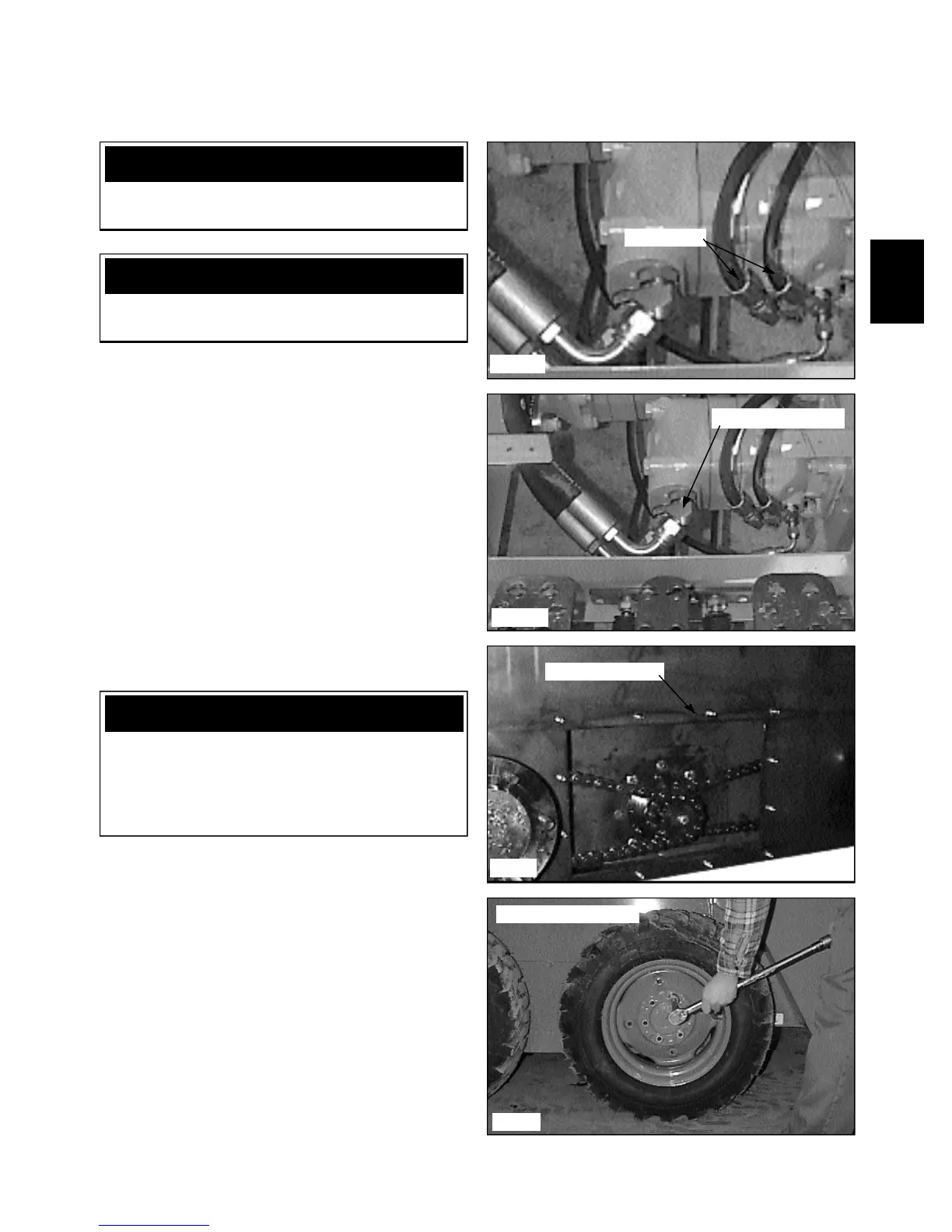

C2424
Clean sealing area
C2360a
C2360b
Brake hoses
High pressure hoses
C1658
Torque the wheel nuts
IMPORTANT
Refer to the torque chart in Section 8 when tighten-
ing hydraulic hoses and fittings
IMPORTANT
Inspect fitting o-rings and flares for marks or dam-
age. Replace if necessary.
WARNING
To prevent personal injury never make repairs to
the hydraulic system while the engine is operating.
Use caution when dealing with hydraulic fluid
under pressure. Escaping fluid under pressure can
penetrate the skin and cause serious injury.
