DRIVE MOTOR 2.12
C2297
C2295
C2296
C2298

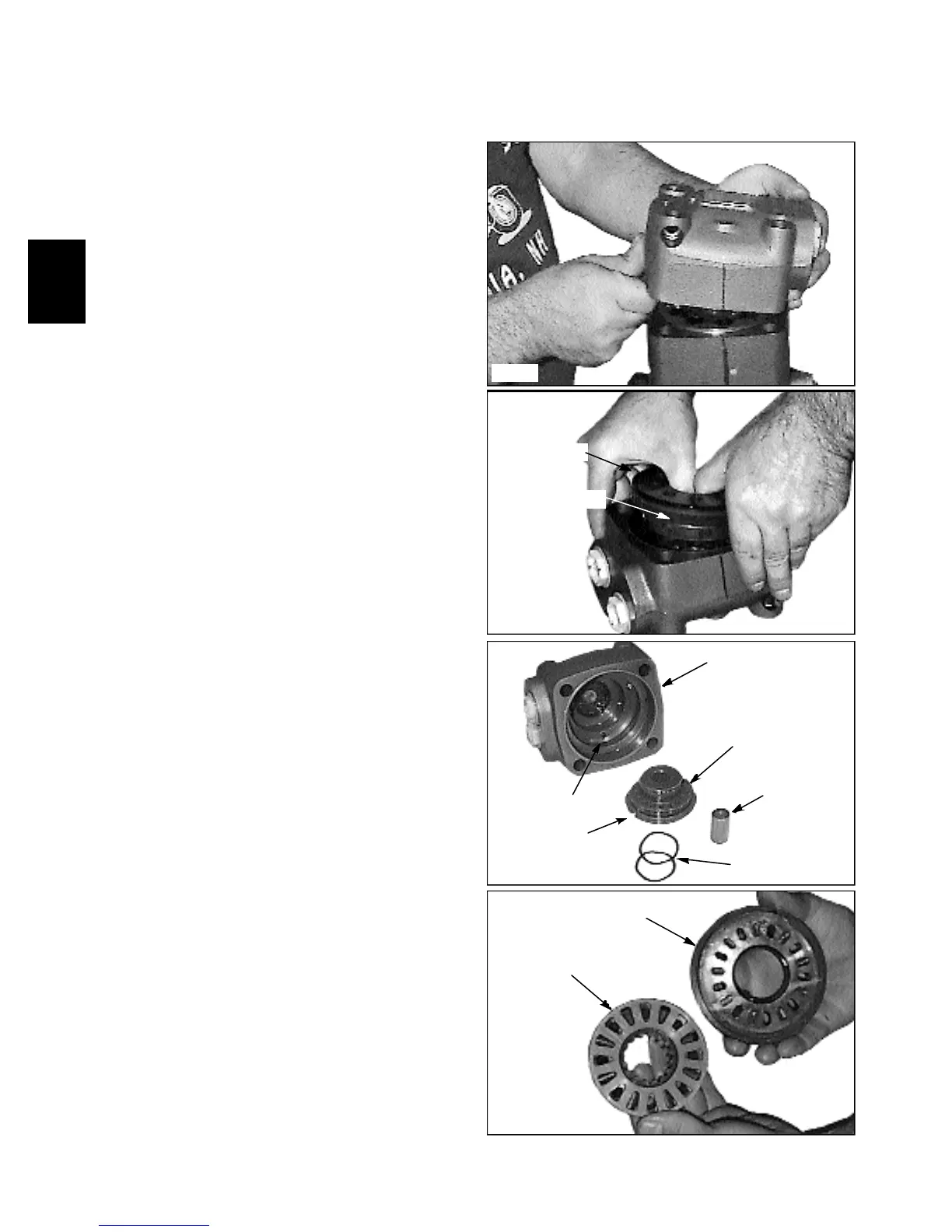

9 Carefully lift the valve housing straight up. (fig.
C2295) Place your fingers under the valve housing to
hold the channel plate in place.
Disassembly (cont’d)
Spacer
Valve housing
Balance plate
Spring washers
Notch
Locating pin
Channel plate
Disc valve
Channel plate
Disc valve
11 Remove the disc valve and balance plate from the
valve housing section. (fig. C2297, C2298)
12 Inspect the parts for wear and replace as required.
Replace all seals with new when assembling the drive
motor.
10 Remove the channel plate. (fig. C2296)
