5
5-4

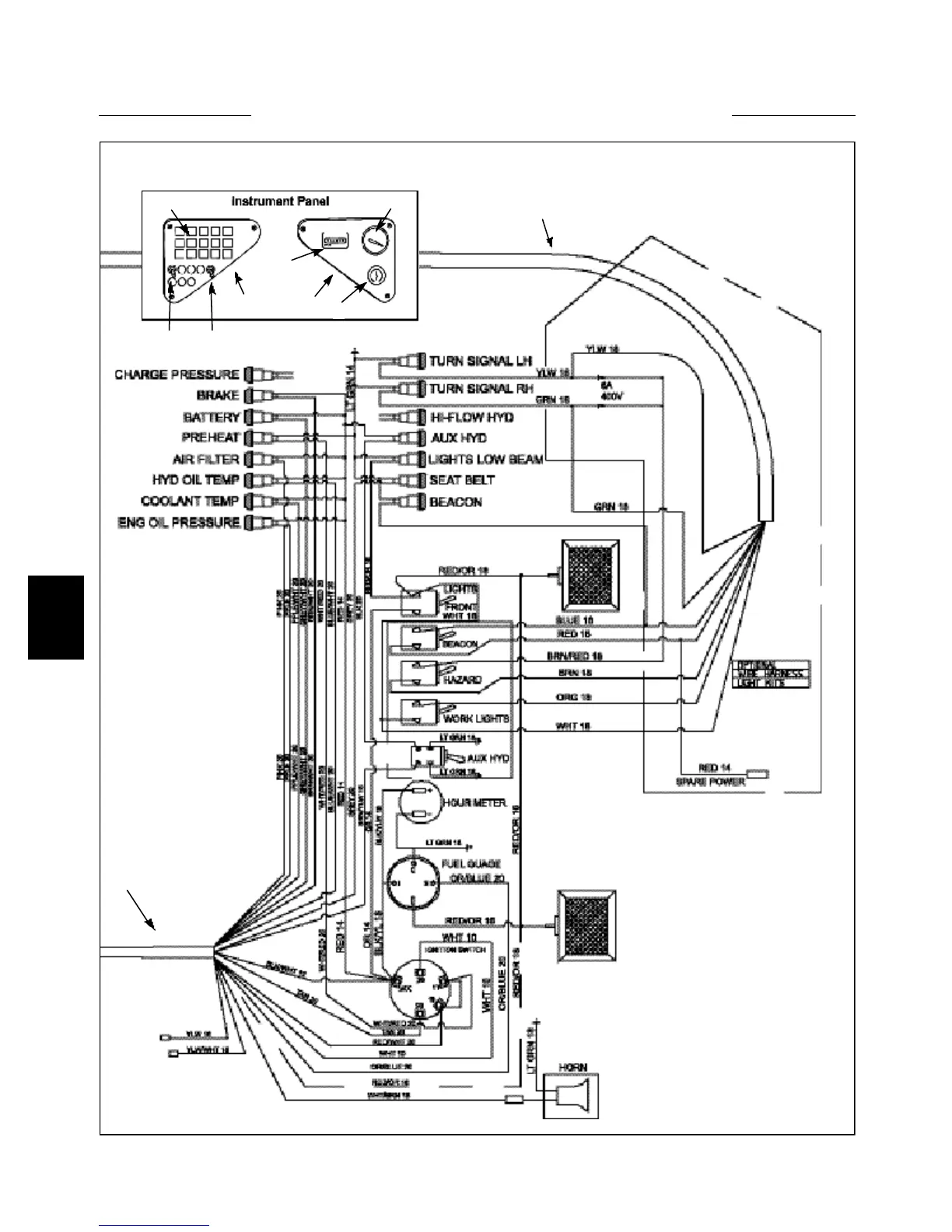

WIRING SCHEMATIC 5.2
ROPS Electrical Wiring 175
1. Electrical Harness, Rops
2. Light Kit Harness
3. LH Instrument Panel
4. RH Instrument Panel
5. Indicator Bulb panel
6. Hour Meter
7. Fuel Gauge
8. Ignition Switch
9. Switch, Headlights
10. Switch, Auxiliary Control
1
4
7
8
5
3
2
9
6
C4187
10
144
146
