5-5
5

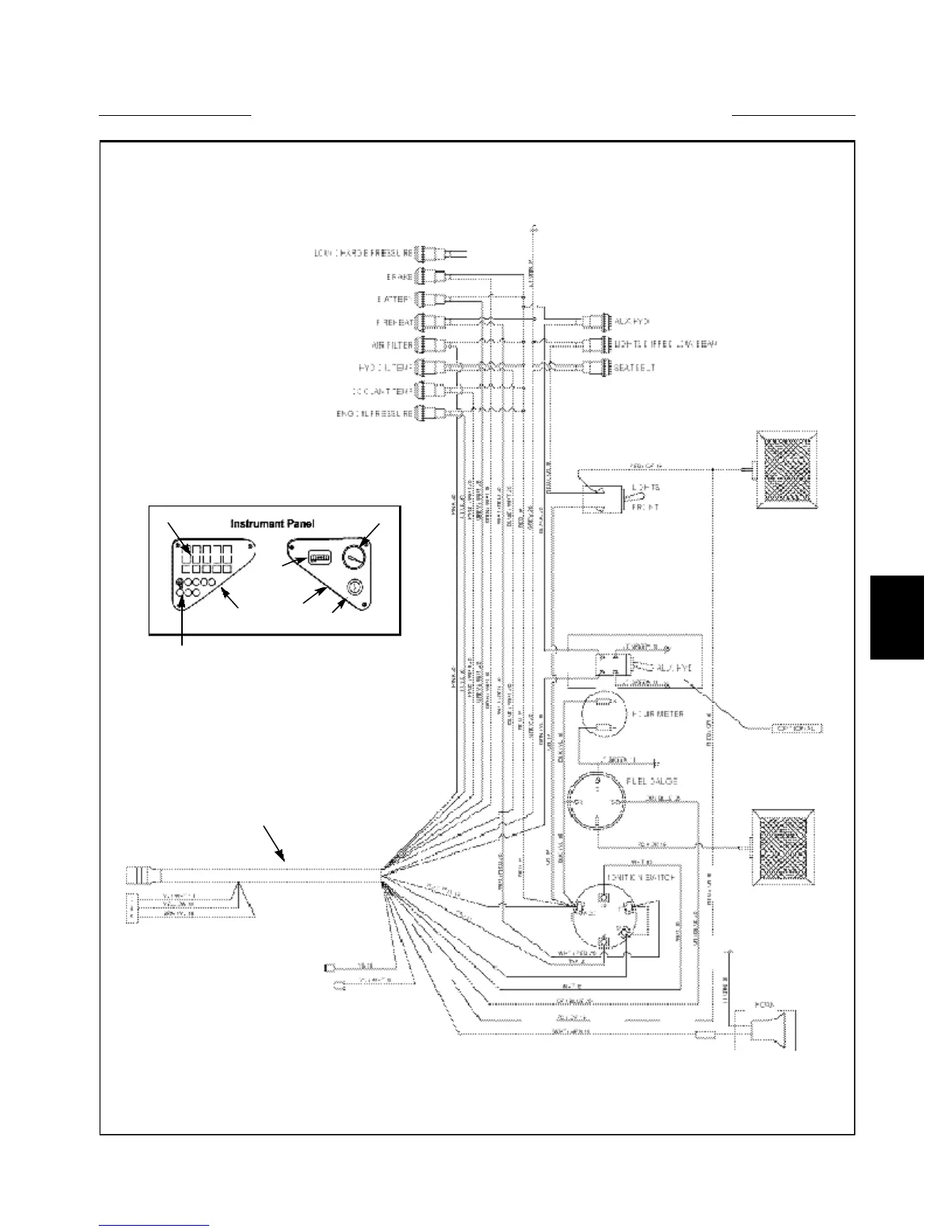

WIRING SCHEMATIC 5.2
ROPS Electrical Wiring 1700
C3688
1. Electrical Harness, Rops
2. LH Instrument Panel
3. RH Instrument Panel
4. Indicator Bulb panel
5. Hour Meter
6. Fuel Gauge
7. Ignition Switch
8. Switch, Headlights
