2-30

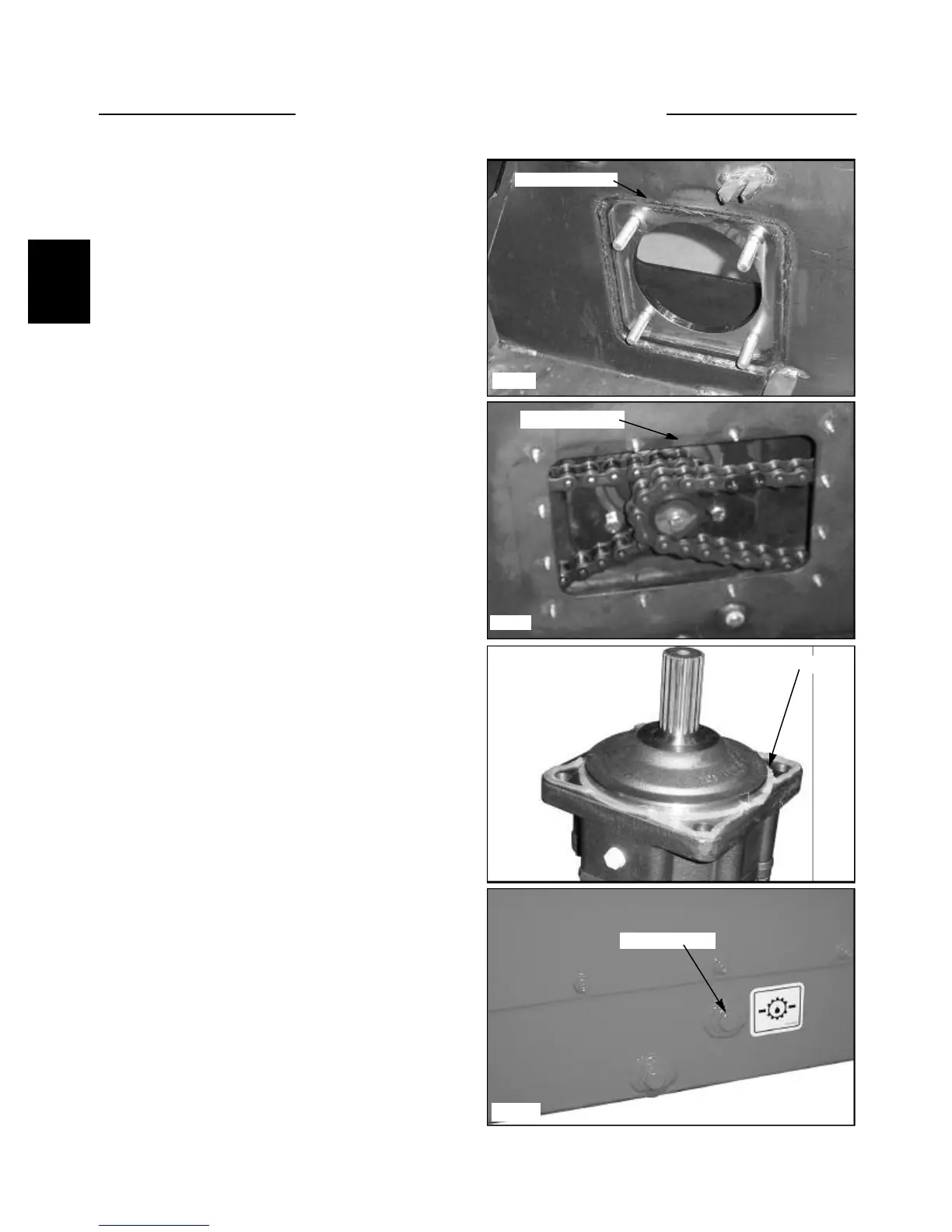

DRIVE MOTOR 2.11
C3495
C3494
Clean sealing area
Apply silicone
C3667
Clean sealing area
C3496
Upper check plug
6 Replace the master link in the dive chain. Section 3.
shows chain replacement procedure.
7 Add oil to the final drive housing until it trickles out
the upper check plug hole. This will require approximate-
ly 17 litres (4.5 gal) of 10w30 API SJ (fig. C3496)
Replacement
1 Clean the mounting areas thoroughly that need to be
sealed with silicone. (fig. C3494, C3495)
2 Apply a bead 1/4 of an inch thick around the drive
motor bearing retainer and around each mounting hole.
(fig. C3667)
3 Install the drive motor and sprocket assembly to the
final drive housing.
4 Install the 4 bolts, lockwashers and mounting nuts
and torque to 80 lbs / ft. (115 nm.)
5 Install the 4 jam nuts. Torque the jam nuts to 40 ~ 60
lbs / ft. (54 ~ 81 nm.)
