2-34

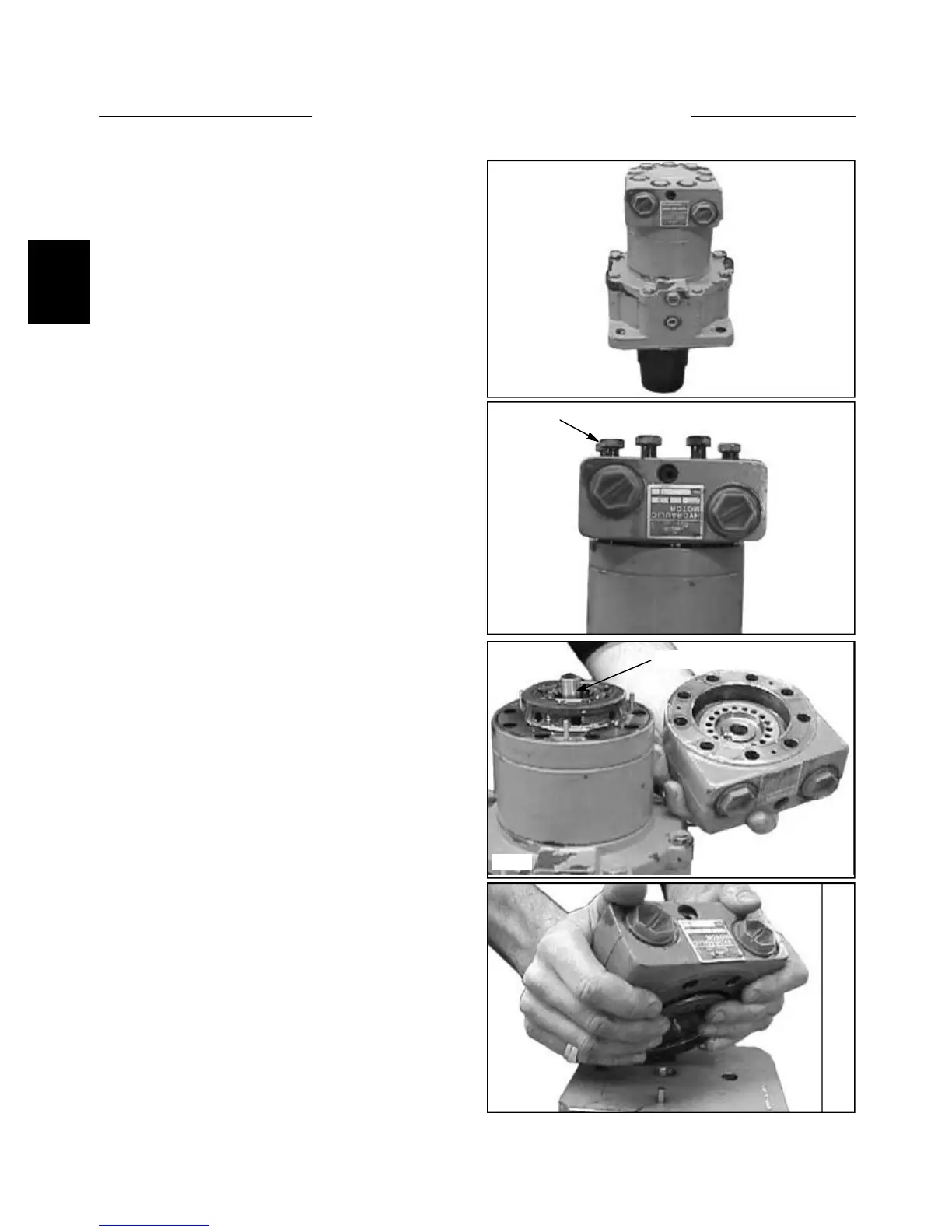

1 Stand unit on end and use a collar or vice to support
shaft. (fig. C3505)
4 On a metal surface, hit the valve housing on the side
to release the balance plate and springs. (fig. C3508)
DRIVE MOTOR 2.11
C3505
C3506
C3507
C3508
Disassembly
3 Lift off the end cover and note that the spacer may
still be in the balance plate or on top of the drive shaft.
(fig. C3507)
2 Alternate the removal of each bolt (9) as the balance
plate will un-spring when the final bolt is removed. (fig.
C3506)
Bolts (9)
Spacer
