2-35

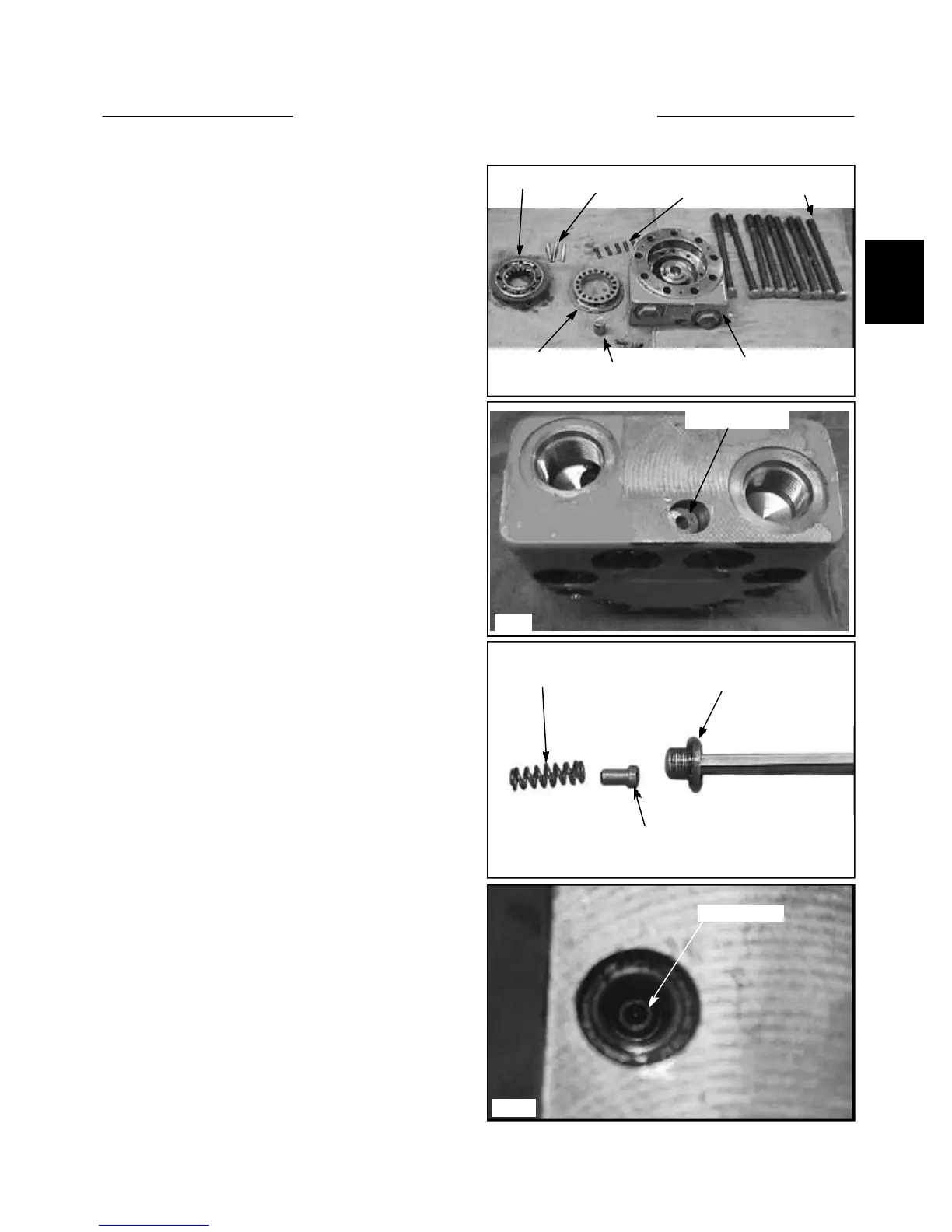

5 Use a 6mm Allen key to remove the flushing valve
plug. (fig. C3510)
DRIVE MOTOR 2.11
C3509
C3510
C3512
C3511
Shuttle valve plug
Disassembly (cont’d)
Spring
Flushing Spool7 The flushing spool is deep within the housing and is
very difficult to remove with a magnet. A pair of long
thin pliers works much better. (fig. C3512)
6 Below the plug, the spring guide and the spring are
easily removed. (fig. C3511)
Disk Valve
Guide Pins(3)
Springs(5)
Bolts(9)
Balance Plate
Spacer
Shuttle Housing
Plug
Spring Guide
To Next Page
