TSC 800 TRANSFER SWITCH CONTROLLER
PM 049 REV 9 06/04/24 Thomson Technology
17
GRD
G:\ENGINEER\PRODUCTS\TSC800\852621.VSD
TSC 800
Transfer
Controller
8 conductor
Shielded Cable c/w
RJ45 connectors
CIM
Communication
Interface Module
Personal
Computer
Port 2A
Port 3B
DC Power
8-35Vdc
Phone
no connection
null modem
connector
RS 232 Signal
15M (50ft)**
maximum
cable length
GRD
+- G
**Communication cable wiring must be suitably routed to
protect it from sources of electrical interference. Refer to
installation section for further information.
305M
(1000ft)**
maximum
cable length

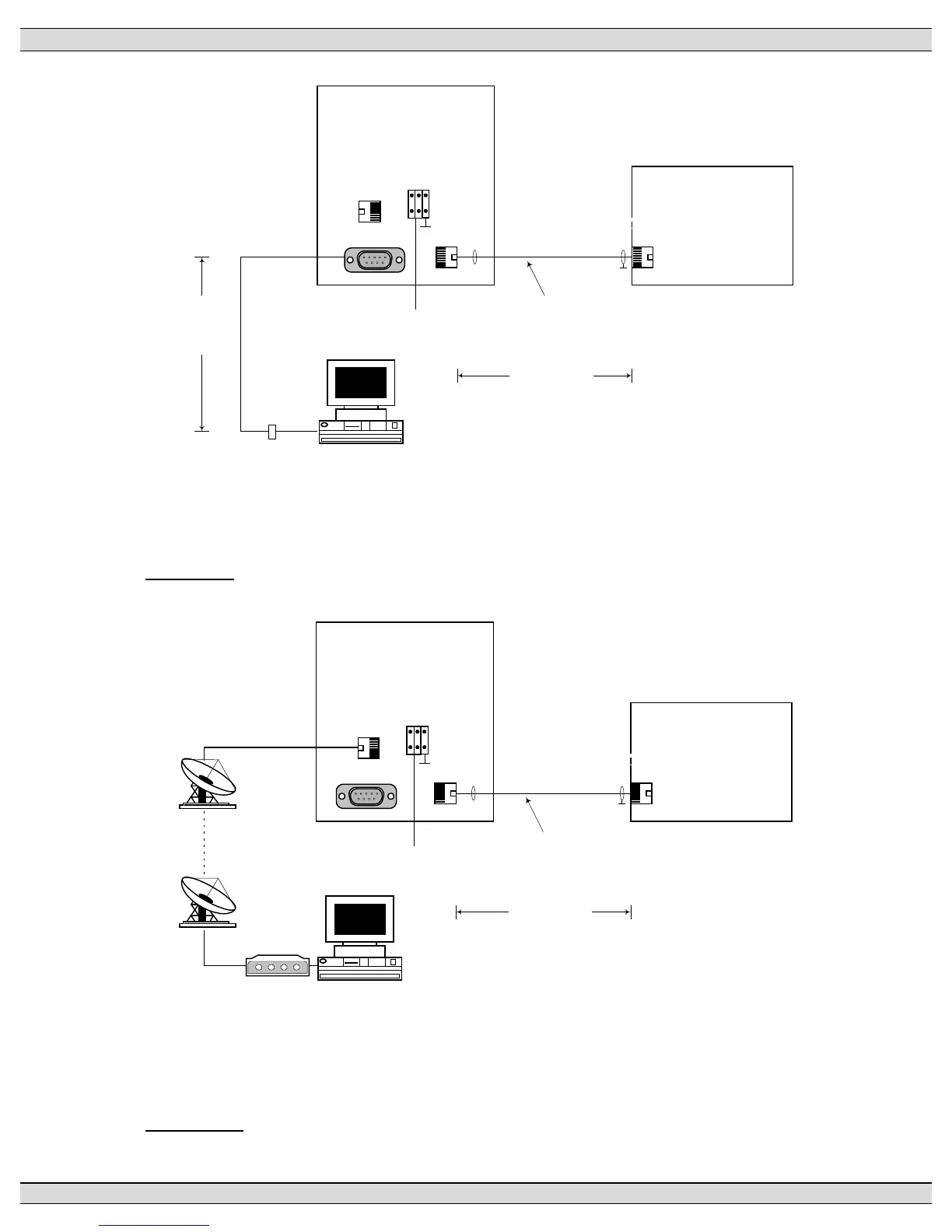

FIGURE #9 TSC 800 WITH CIM MODULE & DIRECT CONNECTED PC (RS232)
GRD
G:\ENGINEER\PRODUCTS\TSC800\852622.VSD
TSC 800
Transfer
Controller
8 conductor
Shielded Cable c/w
RJ45 connectors
CIM
Communication
Interface Module
Personal
Computer
Port 2A
Port 3B
DC Power
8-35Vdc
Phone
GRD
+- G
Modem
no connection
**Communication cable wiring must be suitably routed to
protect it from sources of electrical interference. Refer to
installation section for further information.
305M (1000ft)**
maximum
cable length
FIGURE #10 TSC 800 WITH CIM MODULE & REMOTE CONNECTED PC
