© 2020 Thorlabs GmbH8
DC2200

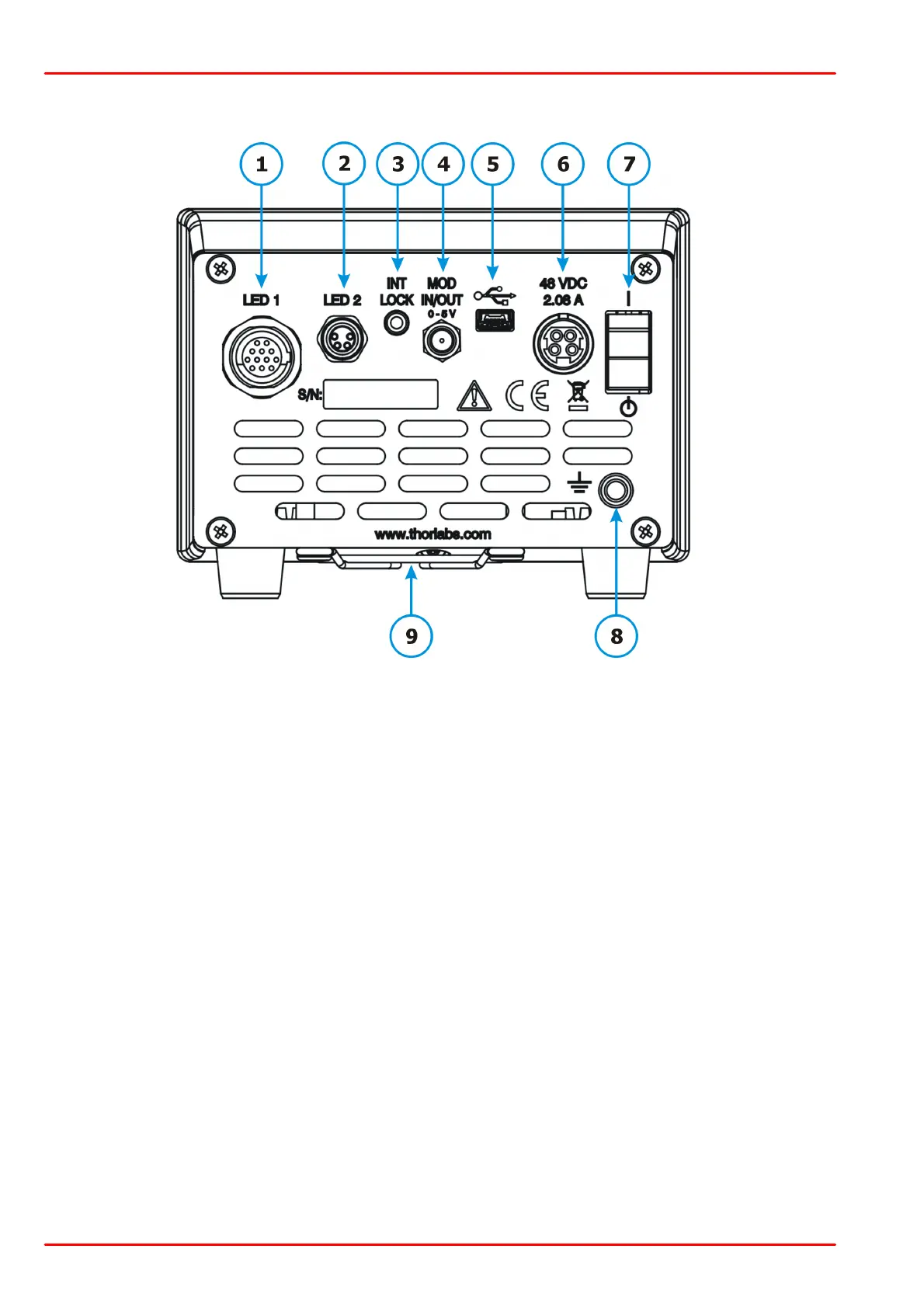

Rear Panel
1
LED1 High-Power Terminal
2
LED2 Standard Terminal
3
Interlock Connector
4
SMA Connector: External Modulation Input / Internal Modulation Monitor
5
USB 2.0 Interface
6
DC Supply Input
7
Power-On Switch
8
Ground Jack
9
Ventilation Slots
