2 Getting Started
7
2 Getting Started
2.1 Parts List
Inspect the shipping container for damage.
If the shipping container seems to be damaged, keep it until you have inspected the contents
and you have inspected the DC2200 mechanically and electrically.
Verify that you have received the following items within the package:
1. DC2200
2. Power Supply 100 - 240 V AC / 48 V 2.08 A DC
3. Custom Cable CAB-DC2200 to connect a custom LED to terminal LED1
4. Custom Cable CAB-LEDD1 to connect a custom LED to terminal LED2
5. USB 2.0 Cable
6. Quick Start Manual
2.2 Operating Elements

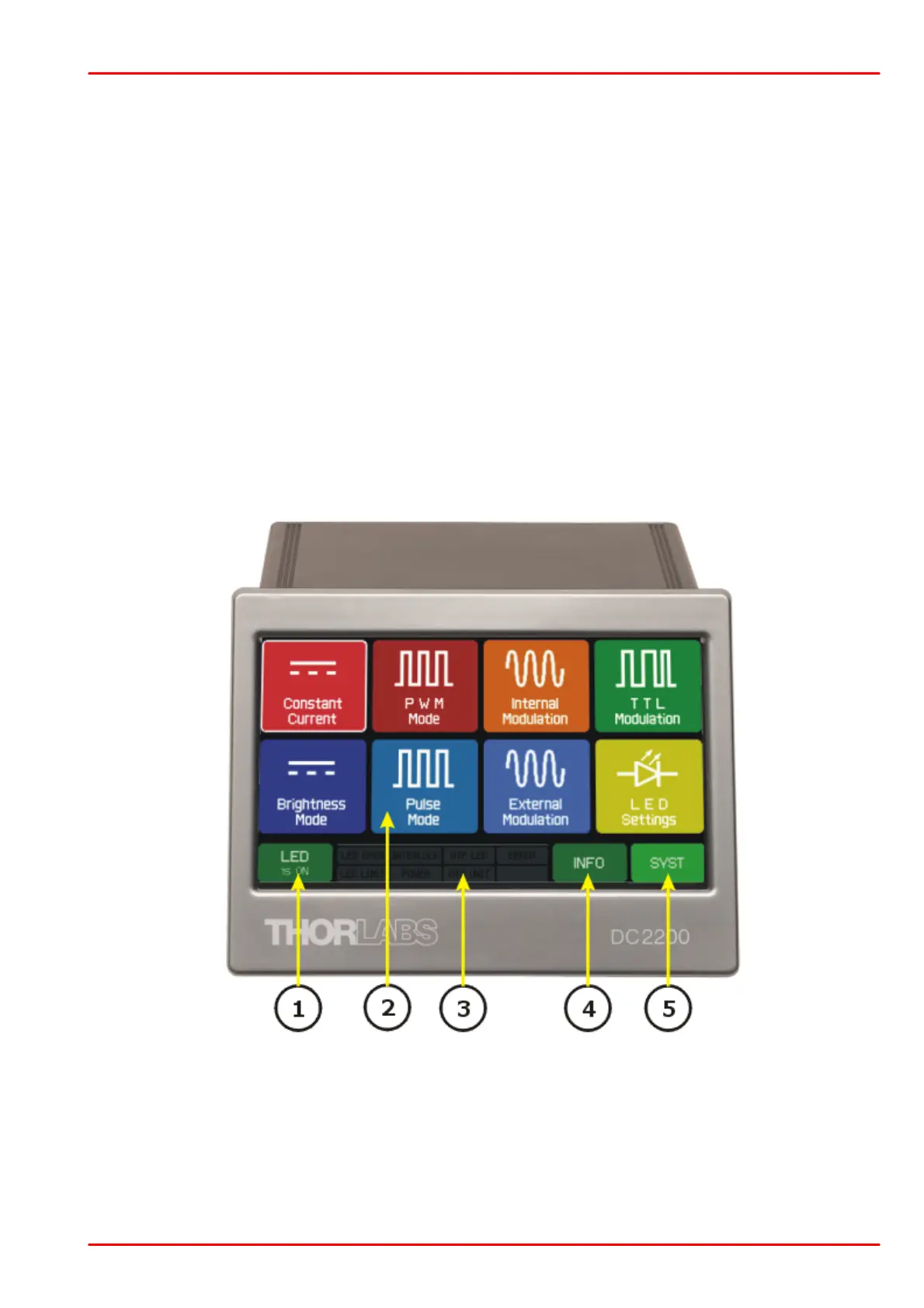

Front Panel
1
LED On / Off Button
2
Main Menu
3
Status Bar
4
Device Information Button
5
System Settings Button
