© 2020 Thorlabs GmbH70
DC2200
Custom Standard LED (up to 2 A - Terminal LED2)

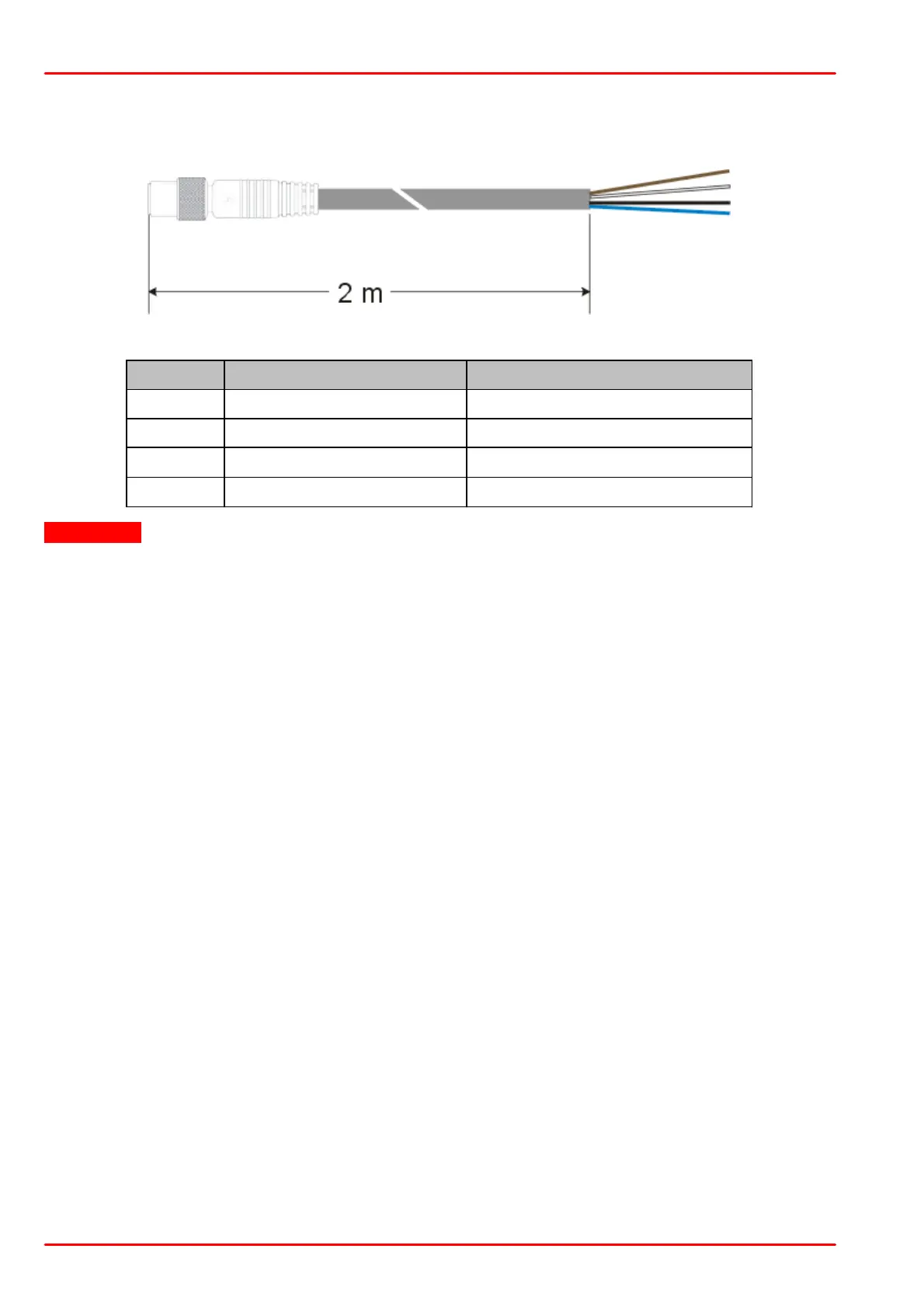

Use the supplied cable CAB-LEDD1:
Connection scheme:
Pin
Color
Description
1
brown
LED anode
2
white
LED cathode
3
black
DO NOT CONNECT
4
blue
DO NOT CONNECT
Attention!
Do NOT connect anything to the black and blue wires! The DC2200 might be damaged!
