THORLABS DCU223 SERIES User Manual

380 DCx camera
© 2010 Thorlabs
Rolling Shutter with Global Start
Some rolling shutter sensors also provide a global start mode, which starts exposure of all rows
simultaneously (see illustration). For best results, use a flash for this mode. No light is allowed to fall
on the sensor outside the flash period because otherwise the image brightness will be distributed
unevenly.

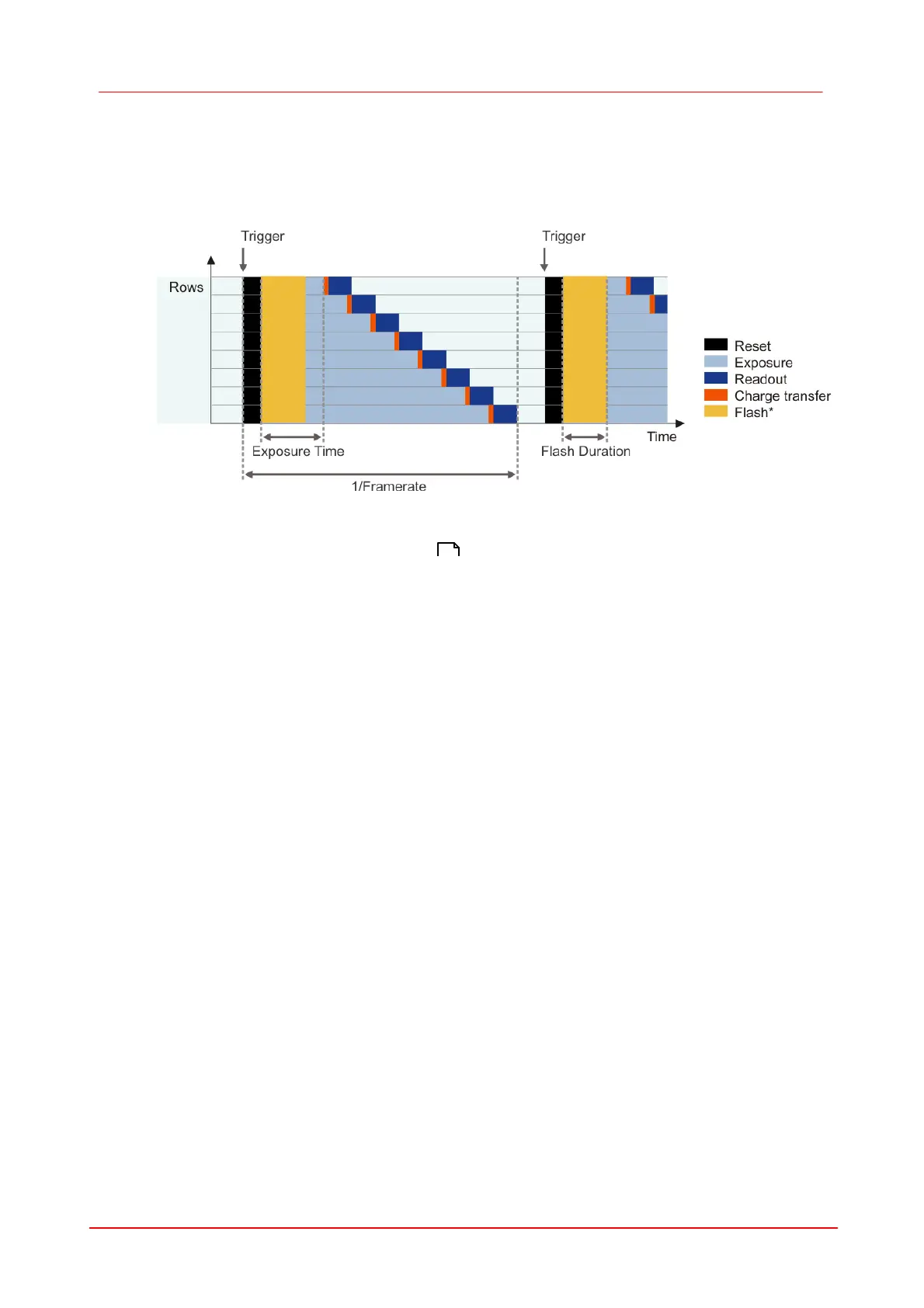

Figure 79 Rolling shutter sensor in trigger mode with Global Start function
*
)
Optional flash function. The start time and duration are defined by the Flash delay and Duration
parameters (see also Camera Settings: I/O ).
61
