401Appendices
© 2010 Thorlabs
10.1.3.3
Pin assignment Sub-D connector
Table 22: Pin-Assignment Sub-D connector
Pin
Assignment

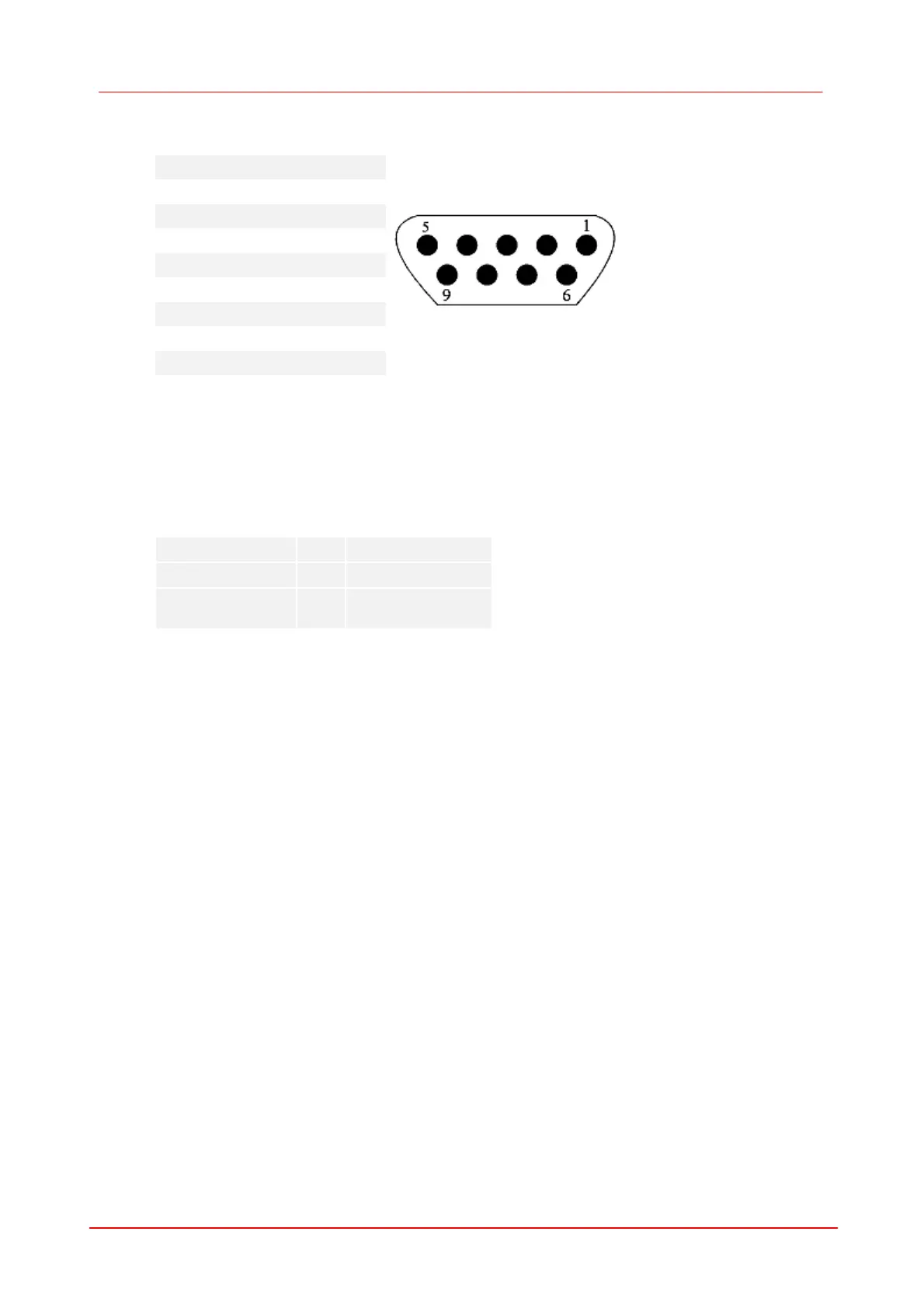

Figure 107 Pin assignment of the
micro D-Sub socket
1
Flash Strobe Output -
2
Trigger Input +
3
Shield
4
USB +5V
5
USB GND
6
Flash Strobe Output +
7
Trigger Input -
8
USB D+
9
USB D-
10.1.4
EEPROM
Table 23: EEPROM Specification
User EEPROM Size
64
Byte
Data Retention
10
Years
Read/write cycles
100,0
00
cycles
