Sensor specification
Subsampling
Mode
Horizontal
*4)
+ Vertical
*4)
Method
H + V: Color subsampling
Frame rate w/ 2x subsampling, 640 x 512
pixels
fps
83
Frame rate w/ 4x subsampling, 320 x 256
pixels
fps
248
Frame rate w/ 8x subsampling, 160 x 128
pixels
fps
512
Connected load
*5)
W
0.3-0.8
*1)
The maximum possible pixel clock frequency depends on the PC hardw are used.
*2)
Requires maximum pixel clock frequency.
*3)
Requires minimum pixel clock frequency.
*4)
Use of this function increases the frame rate.
*5)
The connected load depends on the sensor model and the pixel clock setting.
Color

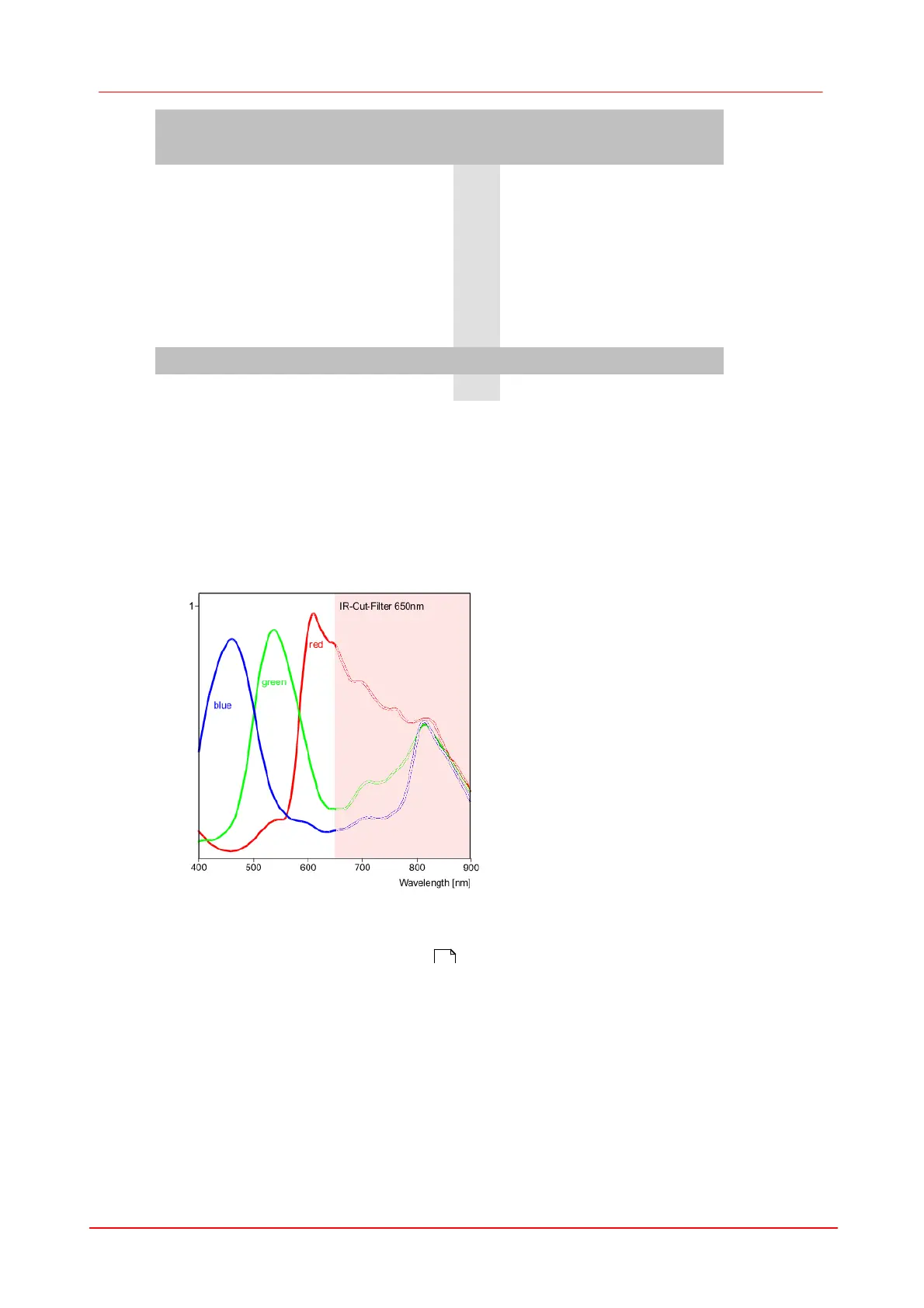

Figure 114: Sensor sensitivity of the DCC1645C, sensitivities in the shaded area (>650nm) are
related to the response without any filter, actual values (with IR-filter) are below 5%
For filter curves, see Technical Data: Filters
402
