PM5020 Dual-Channel Benchtop Power and Energy Meter Chapter 4 Operating Instructions
Rev: 1.0, 18-Aug-2022 © 2022 Thorlabs
Slider Control: Pick and move the slider
Slider Control: Pick and move the
slider
Drop-down list: Scroll
though a list
Swipe horizontally to change display views
Swipe vertically to change channels, or scroll
measurement screens

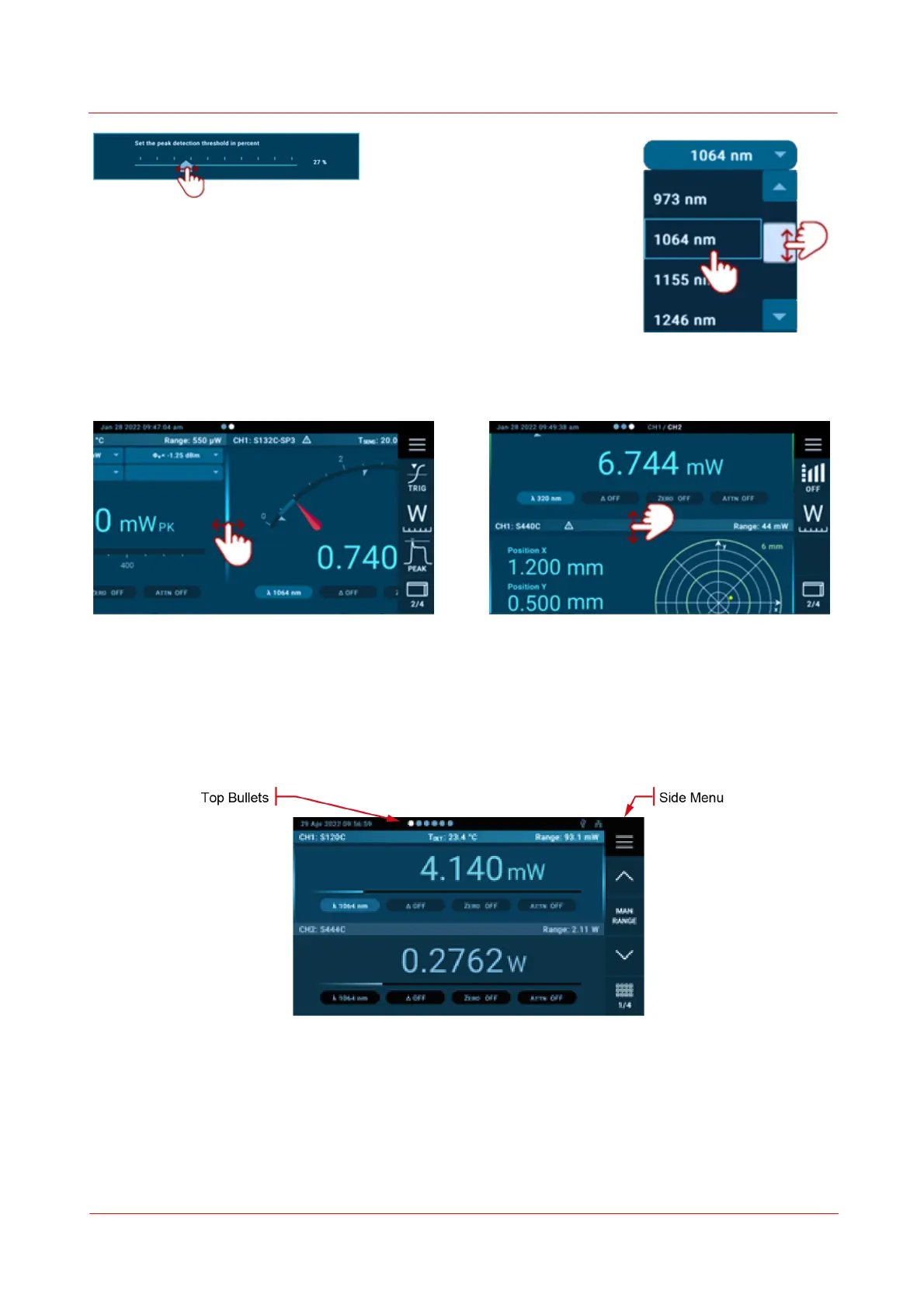

4.11.1.3 Touch Screen Options and Menus
The touchscreen opens with the screen used last upon power-up. The operating regions "Top Bullets" and
"Side Menu" lead to different displays and measurement settings respectively. Shown here is the
Dual/Single measurement screen.
When starting the PM5020 power meter without sensors connected, the screen displays "NO SENSOR
CONNECTED".
