Page 34
MTN028837-D02
PM5020 Dual-Channel Benchtop Power and Energy Meter Chapter 4 Operating Instructions
4.11.1.3.2.1 Settings Menu

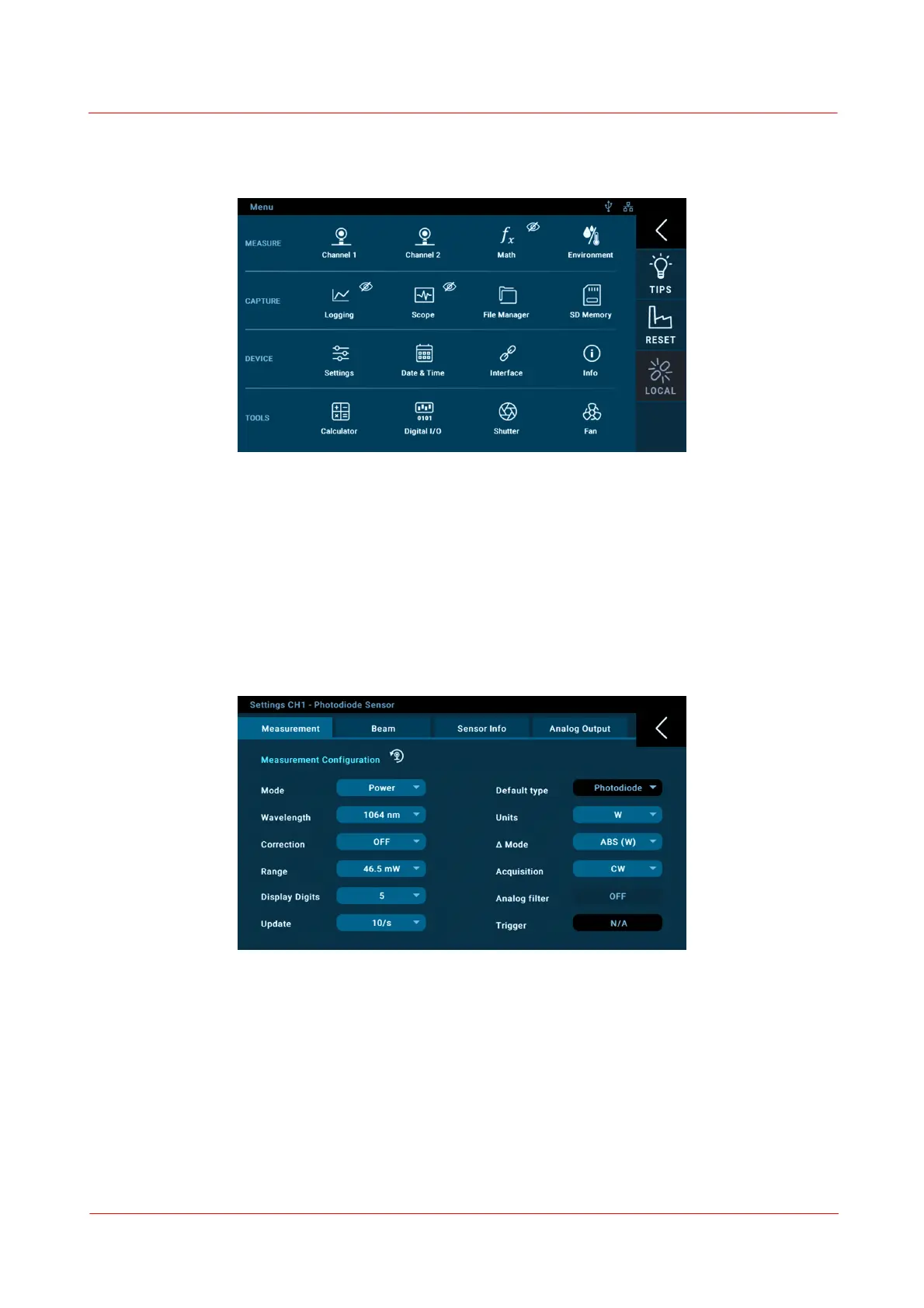

The settings menu shown below leads to all possible settings for a measurement. The following chapter
describes these settings.
Math view, logging view, statistics or scope views are only activated and visible in the top bullets after con-
figuration. The crossed eye symbol means, that the view is not configured.
MEASURE: This line leads to the settings for
· Sensor channels in Channel 1 and Channel 2 (connected sensors and Analog Output settings)
· Mathematical functions
· Environment sensors
Channel1/Channel2
Please adjust the following settings prior to a measurement:
· Set Mode: Power or Iradiance
· Wavelength of measured light to correct for. Set a peak wavelength or load a spectrum.
· Correction: This refers to attenuation in %, dB, off, or times x. Set a value or load a curve.
· Range of the measurements: This can be set to automatic (auto) or numerical in W or W/cm
2
.
· Display digits
· Update rate
· Sensor Type, if not imported from EEPROM of a Thorlabs sensor
