Page 35
PM5020 Dual-Channel Benchtop Power and Energy Meter Chapter 4 Operating Instructions
Rev: 1.0, 18-Aug-2022 © 2022 Thorlabs
· Units
· Delta Mode: This allows zeroing to an absolute given value.
· CW or Pulsed
· Analog Filter (or bandwidth)
· Trigger

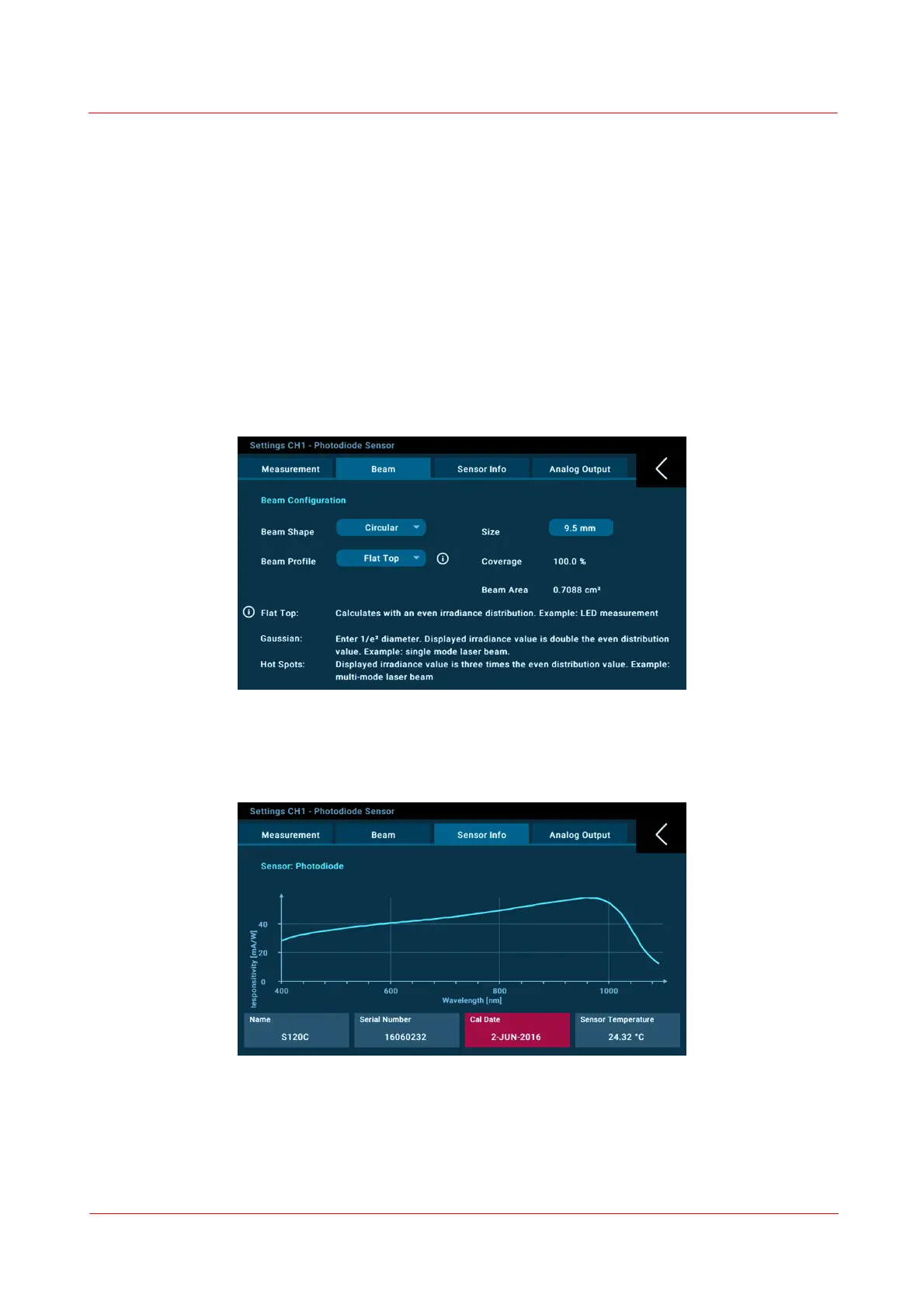

Beam
Please adjust the following settings for the excitation source prior to a measurement:
· Beam Shape
· Beam Profile
· Beam Size/Beam Area
Entering the actual beam diameter, shape and profile is used to calculate the beam area. This enables the
calculation and display of measurement values in irradiance or fluence.
Sensor Info: Information about the sensor, imported from the EEPROM of the senosr, is displayed.
Analog Output: Configured the output port for signal analysis via an external device.
