Save Power Distribution Data
The measured intensities in arbitrary units of the spots visible in the Spotfield Panel
can be saved to a text file. The preferred file extension is .csv (comma separated
values). This file type can be loaded directly into Microsoft Excel®.
You may define some file preferences before storing the measurement data file.

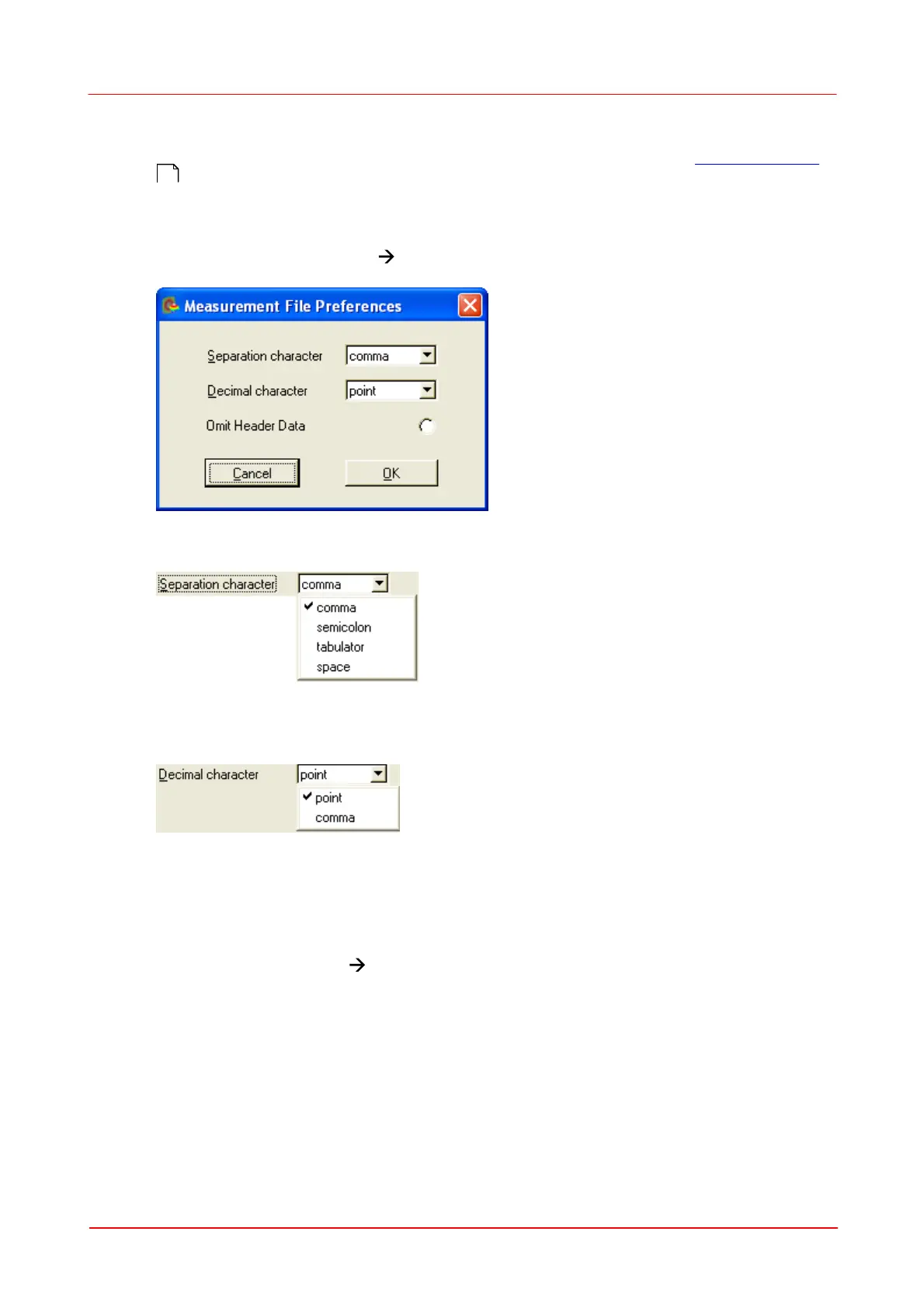

Choose the menu item File Measurement File Preferences.
The separation character between the parameter name and the appropriate value
can be set to four different characters:
'Comma' is selected by default.
The decimal character can be set to a decimal comma or point in order to achieve
the desired output format.
'Point' is selected by default.
If the option 'Omit Header Data' is enabled the entire header including the listing of
camera, beam and pupil data is omitted and only the power distribution data array is
saved.
Choose menu item File Save Power Distribution Data or just press Ctrl + D to
save the power distribution data file to disk using the defined preferences. For the
file content see this printout of a sample file:
Thorlabs Shack-Hartmann Wavefront Sensor
Model , WFS150-5C
Serial Number , M0224955
Date MM-DD-YYYY , 06-22-2011
Time HH:MM:SS , 10:17:32
