each point of the lower curve (gray) displays the minimum intensity of the appropriate
CCD column.

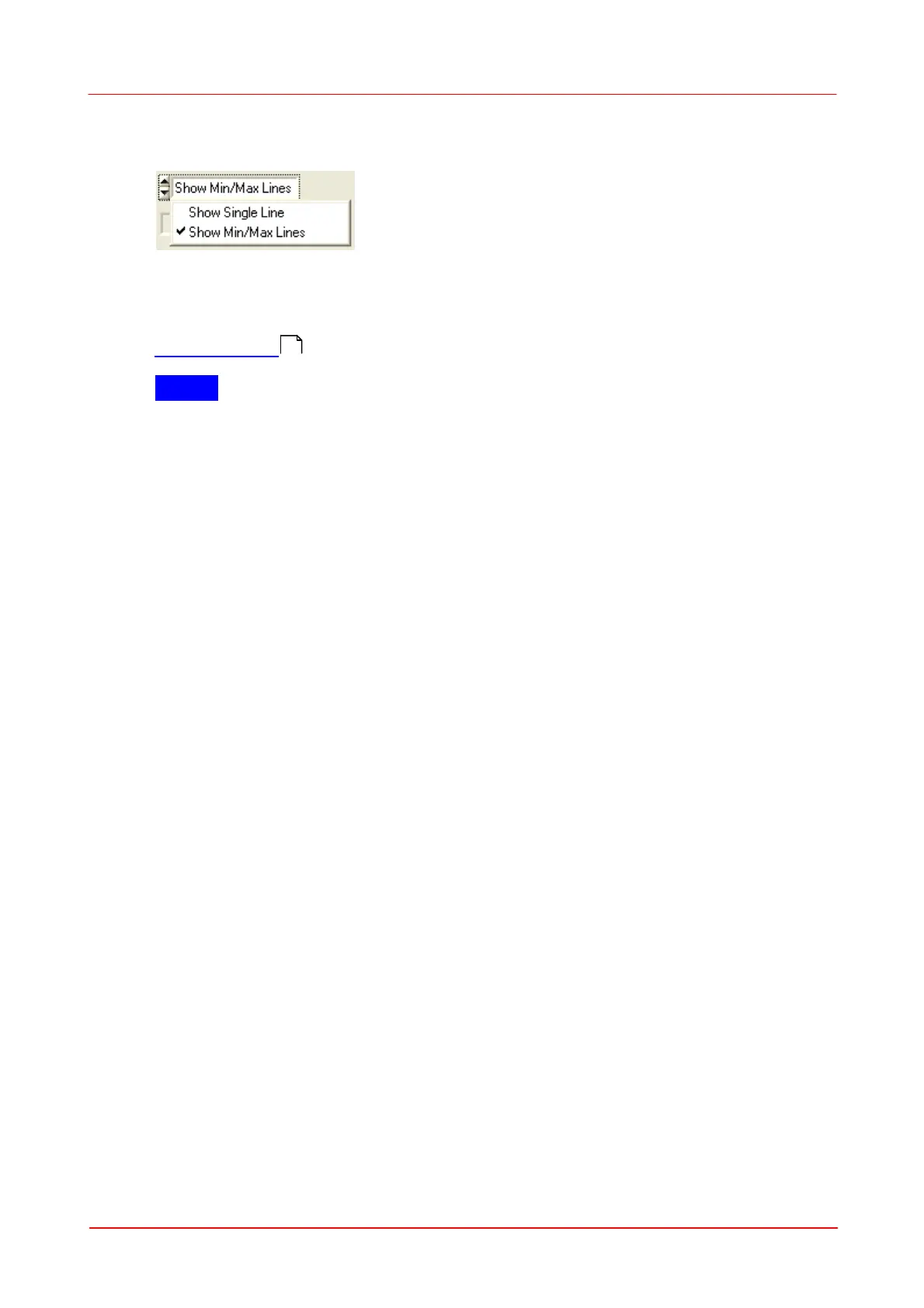

Switch to 'Show Single Line' in order to enable selection of a single line out of the
CCD array. Enter the line number into the control 'Selected Line' to see the
intensity distribution of the appropriate CCD row. The line number ranges from 0
(bottom) to the number of vertical pixels - 1. The selected line is marked within the
Spotfield Panel .
NOTE
This panel display is not available for WFS10 instruments in Highspeed Mode.
4.2.2.3
Spotfield Panel
The Spotfield panel allows a direct view of the image taken by the CCD/CMOS
camera. Intensity levels are displayed as gray scale from 0 = black to 254 digits =
white and saturation is indicated by red colored pixels.
52
