measurement speed increases.
If these setting are made critically or contradictory, warnings or error messages will
appear in the instrument status box, see section Measurement Warnings and Errors
and Minimal Beam and Pupil Diameter .
4.2.3.1
Camera Settings Setup

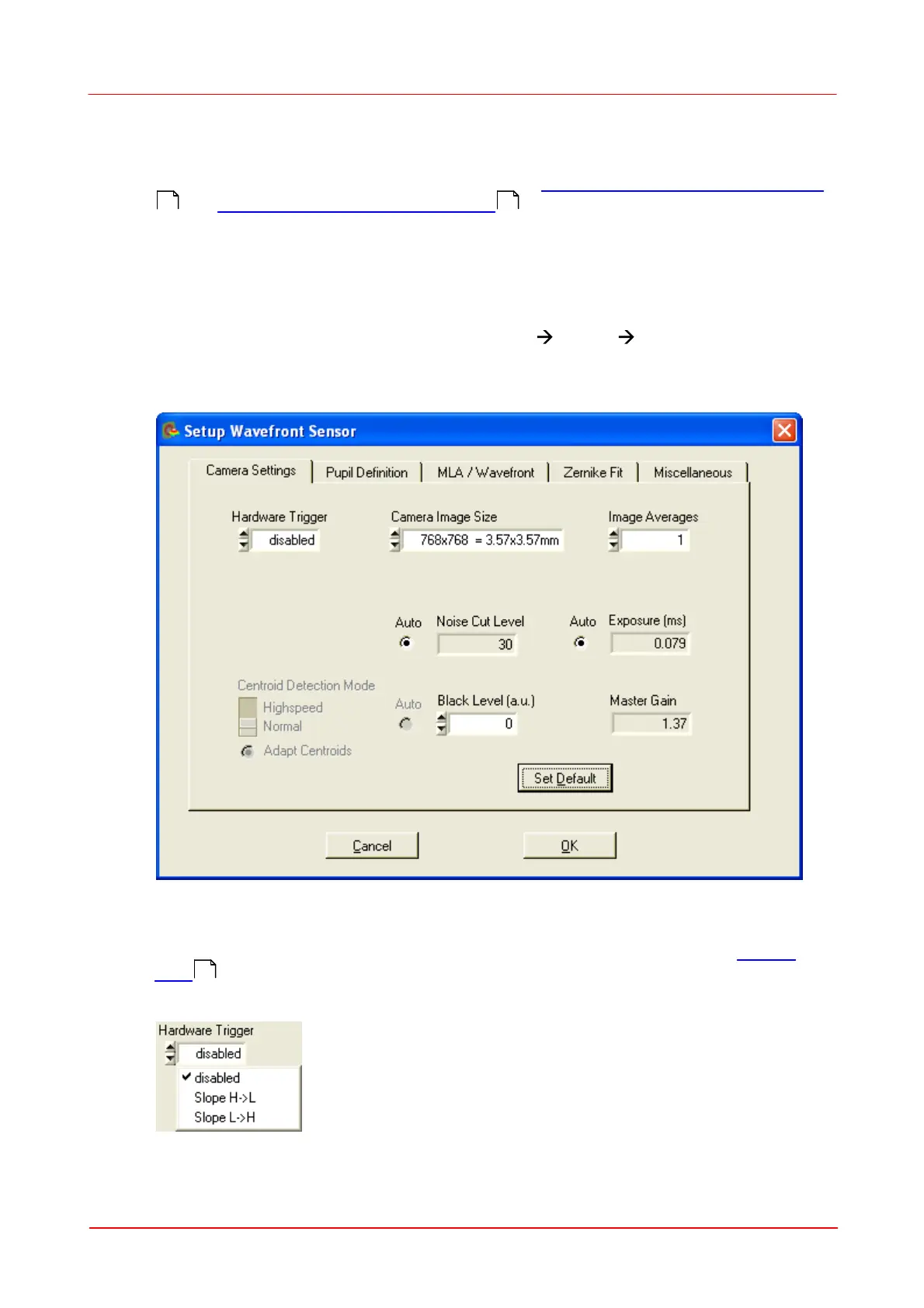

'Camera Settings' handle adjustments concerning the image capturing of the CCD
camera.
To open the setup panel you can use the Menu Setup Wavefront Sensor
entry or simply click right on one of the graphs on the right hand side of the main
panel. Select the tab 'Camera Settings'.
Hardware Trigger enables synchronization to an external trigger signal which may
be a pulsed laser source or an electrical function generator. See chapter Trigger
Input for a detailed specification of this input.
The following trigger options can be selected:
As soon as a trigger slope is selected, the WFS waits for the trigger event at the
