© 2007-2012 Thorlabs GmbH
42 WFS Series

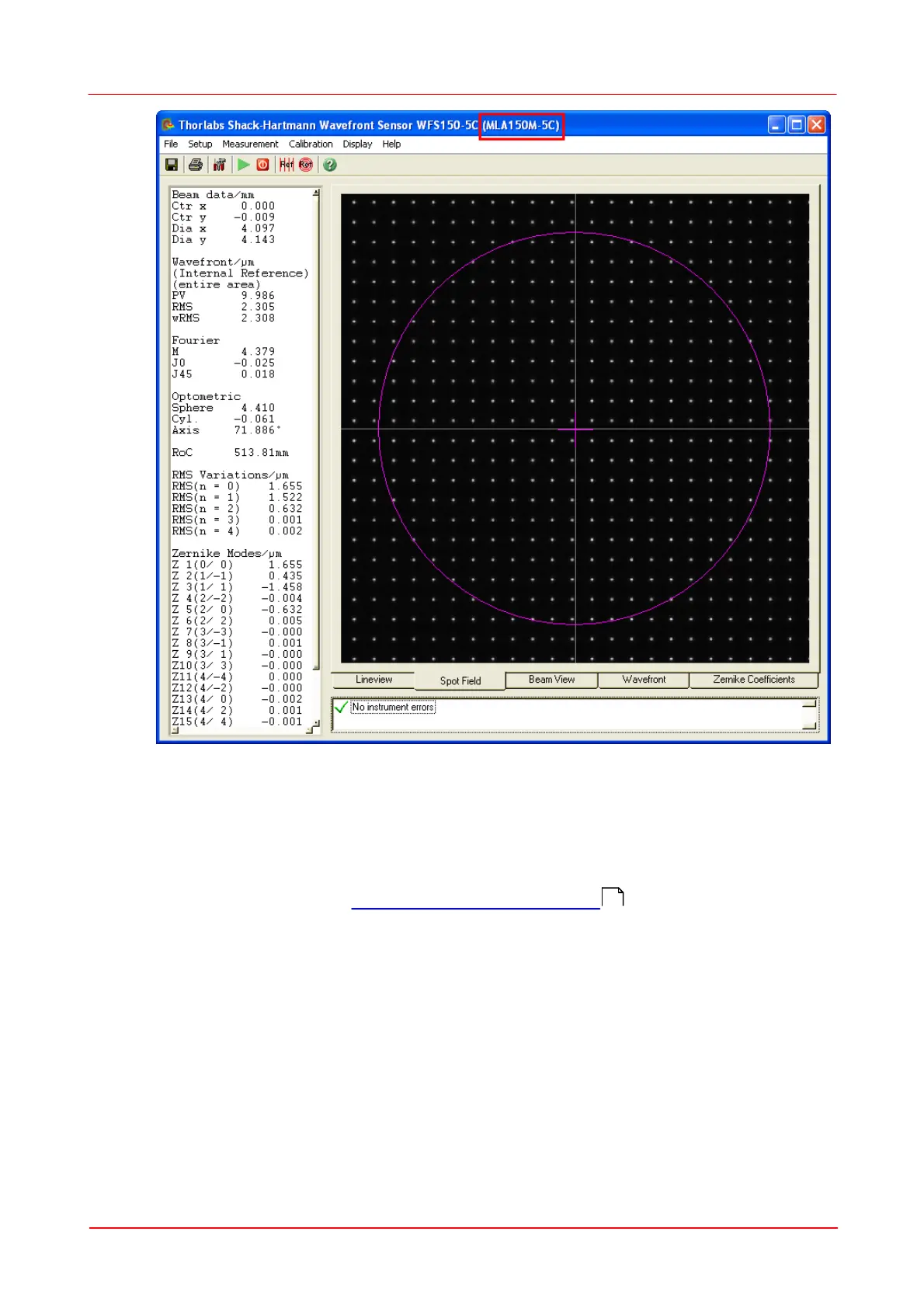

The Wavefront Sensor model is displayed in the title bar of the panel. The software
starts displaying the actual camera image which is called the 'Spot Field'.
Change the program window size according to your preferences. The actual setting
is stored and is applied when the Wavefront Sensor application software is started
again.
At first program start all Wavefront Sensor settings and GUI configurations are set to
default values. Read the Wavefront Sensor Setup Panel chapter carefully and
configure the Wavefront Sensor software according to the beam properties and your
specifications.
4.2.2
Operating the Wavefront Sensor Software
Now let's get familiar with the Wavefront Sensor GUI.
You can either use the menu or just click a symbol on the tool bar to operate the
Wavefront Sensor application software.
6
5
