41Operating Instruction

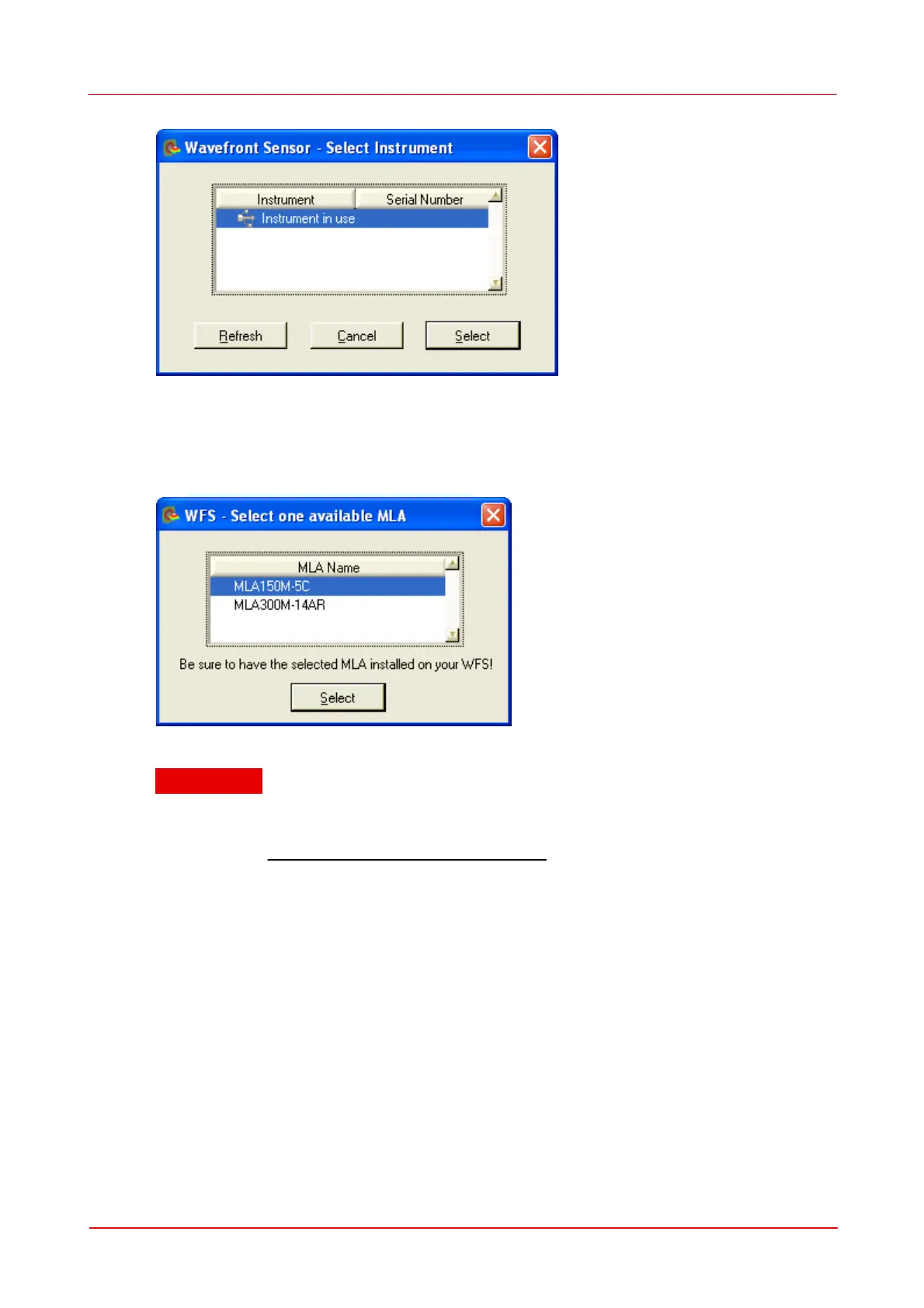

In case your WFS instrument contains calibration data for more than one Microlens
Array (MLA) you need to select one of the available MLAs.
Mark the MLA entry you want to work with and click 'Select' or just double-click on the
MLA entry.
Attention
Be sure to have the selected MLA physically installed in front of your Wavefront
Sensor!
Otherwise, all measurement data become invalid because wrong calibration
data!
The selected Wavefront Sensor starts to work and the Graphical User Interface (GUI)
displays the measured data. You need to verify that the correct MLA name appears
in the title bar of the application window (see red rectangle).
The GUI looks like this:
