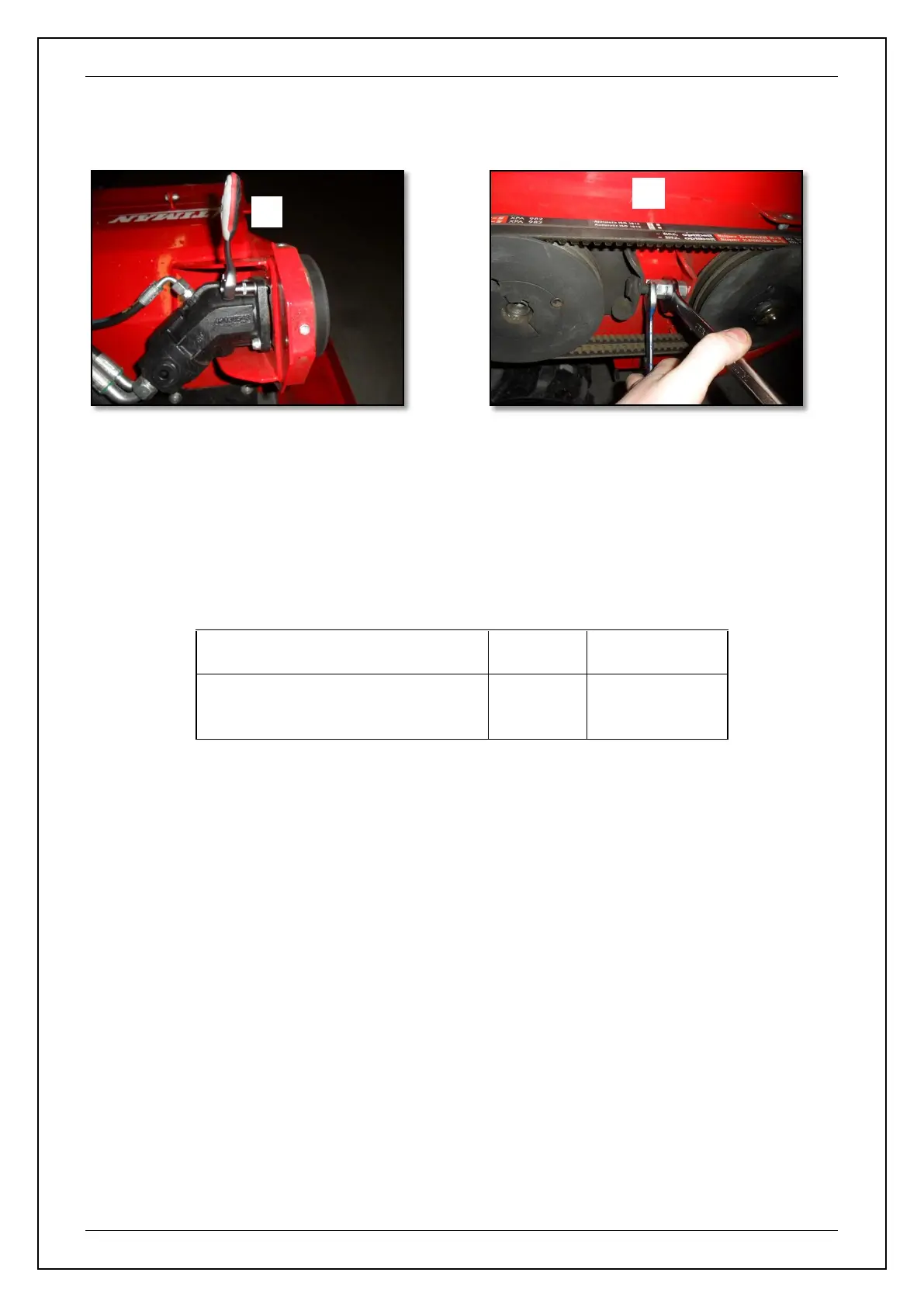

9.1.7 Belt tensioning between the engine and hydraulic pump
The belt tensioning is performed as follows:
1. Remove the protective belt cover, and loosen the 4 screws which are holding the engine.
2. Loosen the locknut on the adjustment screw, and adjust the nut on the adjustment screw until
you achieve the correct belt tension.
3. Tighten the screws on the pump, the locknuts and the protective cover of the belt.
Belts between the oil motor and flail
rod
