SAWMILL ASSEMBLY
Mounting Hardware Specifications
3
3-4 15doc110819 SAWMILL ASSEMBLY

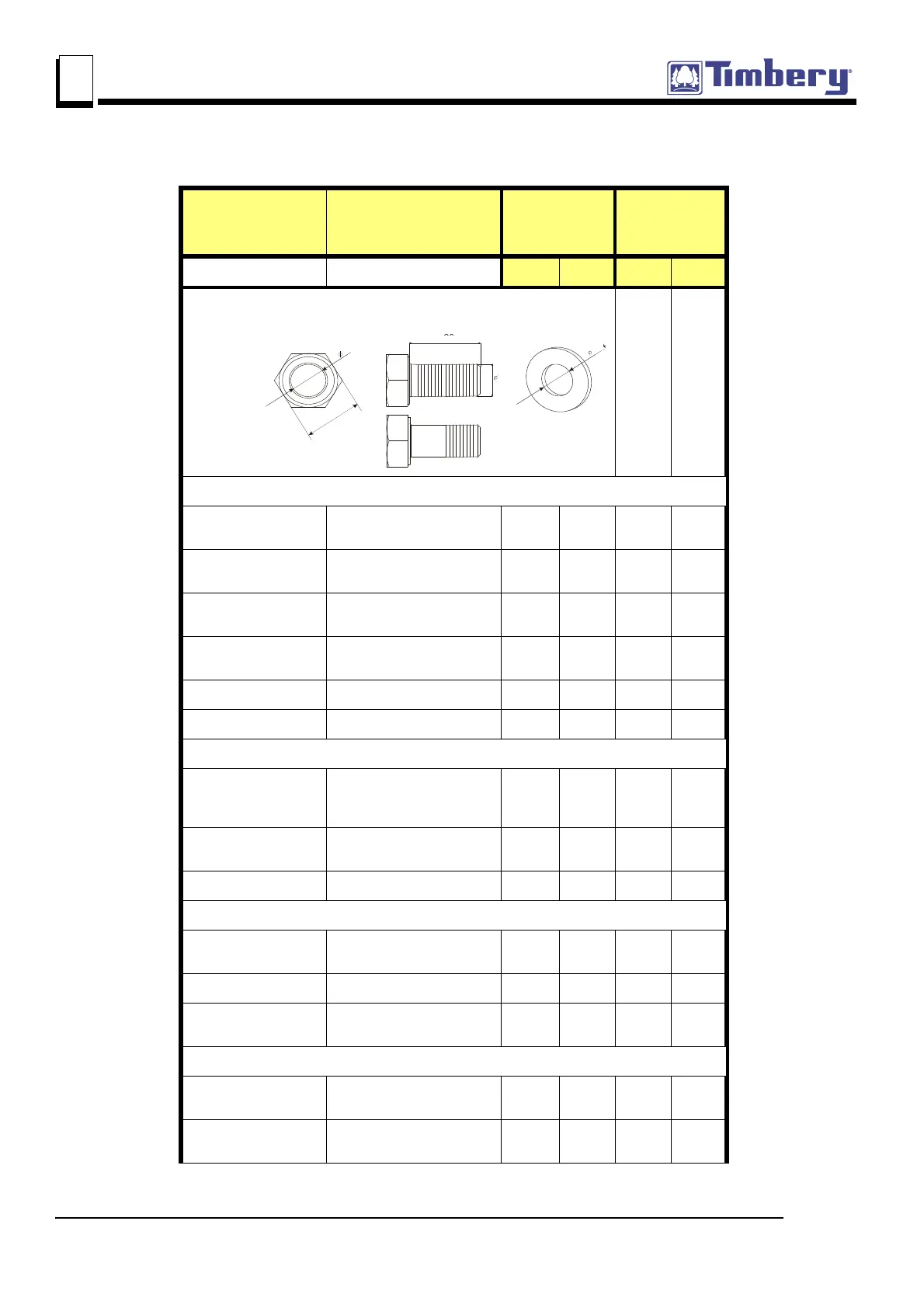

3.1.2 Mounting Hardware Specifications
Table 2:
Timbery Part No. Description Qty
M120
Electric
Qty
M120
Gas
CE RPA CE RPA
Exemplary designations of fasteners
Scale Bracket
F81001-8
BOLT, M6x30-8.8 HEX HEAD
FULL THREAD ZINC
2222
F81002-11
BOLT, M8x20-8.8 CARRIAGE
ZINC
2222
F81031-2
NUT, M6-8-B HEX NYLON
ZINC LOCK
2222
F81032-2
NUT, M8-8-B HEX NYLON
ZINC LOCK
2222
F81053-1
WASHER, 6.4 FLAT ZINC
4444
F81054-1
WASHER, 8.4 FLAT ZINC
2222
Sawdust Chute
F81000-13
SCREW, H M5x10 8.8
CROSS RECESSED PAN
HEAD ZINC
4444
F81030-2
NUT, M5-8 DIN 985 HEX
NYLON ZINC LOCK
4444
F81052-1
WASHER, 5.3 FLAT ZINC
4444
Cover Latch
F81002-4
BOLT, M8x20-8.8-B HEX
HEAD FULL THREAD ZINC
2222
F81054-1
WASHER, 8.4 FLAT ZINC
2222
F81054-4
WASHER, 8.2 SPLIT LOCK
ZINC
2222
Complete Mast
F81003-50
BOLT, M10x80 -8.8 HEX
HEAD ZINC
4444
F81002-71
BOLT, M8x70-8.8 HEX HEAD
ZINC
8888
6
,
5
8
8
,
4
20
1
3
Nut M8
Bolt M8x20
Washer 8.4
6
,
5
8
8
,
4
20
1
3
