Timbery M120 Series - Blade Guide Horizontal Tilt

OPERATION
4
4-17 doc110819 OPERATION
4.14 Blade Guide Horizontal Tilt
See Figure 4-14.
1. Place the Blade Guide Alignment Tool against the face of a blade guide roller and center it on the
roller as shown above.
2. Measure between the back edge of the blade and the tool at one end of the tool ("B").
3. Measure between the back edge of the blade and the other end of the tool ("A").
4. The blade guide roller should be parallel to the blade (A=B) or slightly tilted in the horizontal plane as
shown in Figure 4-13 (A=B-6 mm). If this condition is not met, adjust the roller in the horizontal plane
using the side set screws on the blade guide.
5. Repeat the above steps for the other blade guide.
NOTE: Once the blade guides have been adjusted, any cutting variances are most likely caused by
the blade.

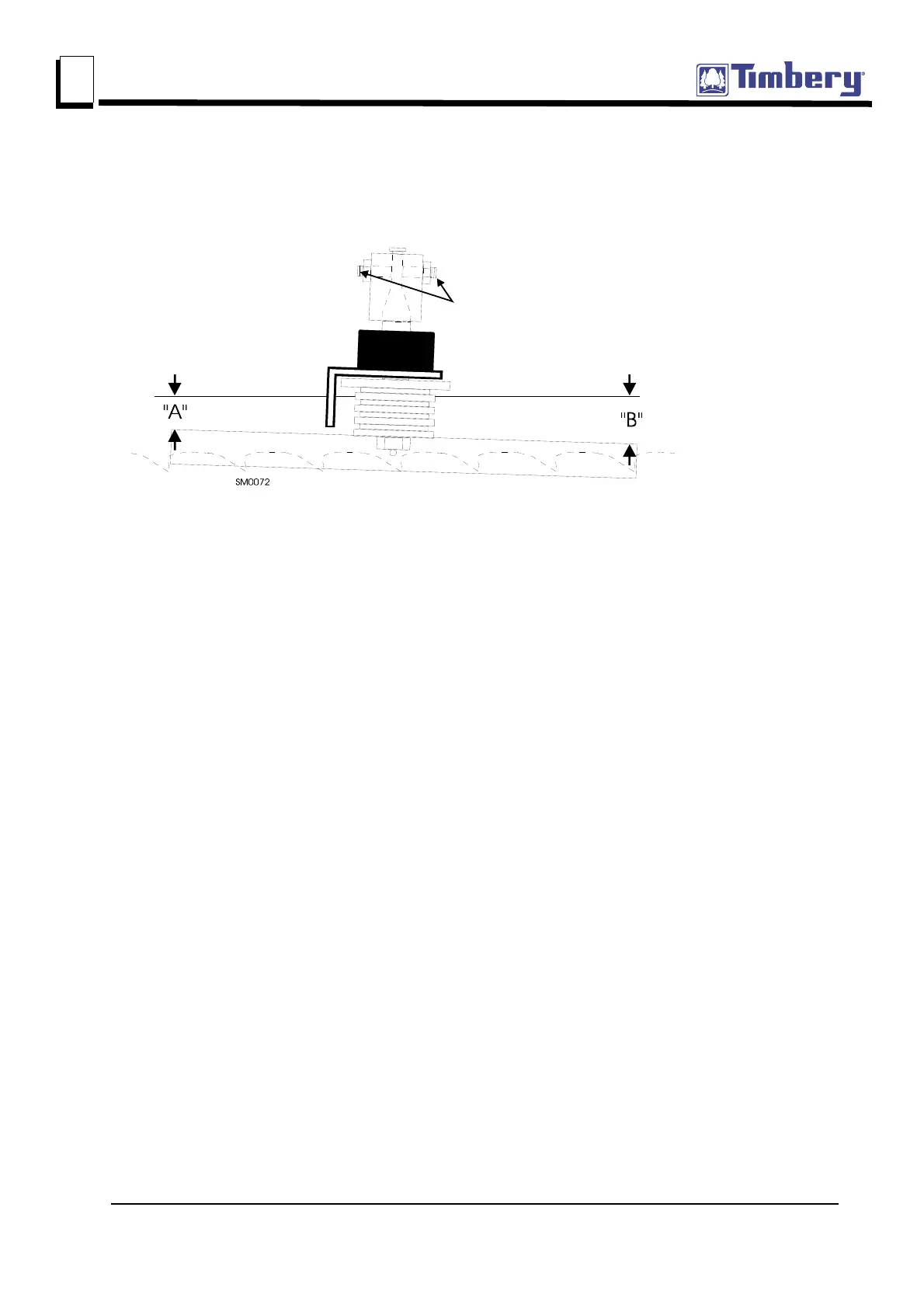

FIG. 4-14
Obrócić odpowiednio boczne wkręty
dociskowe by wyregulować ustawienie
prowadnika w płaszczyźnie pionowej
Turn side set screws
to adjust horizontal tilt
