Timbery M120 Series - Stop Bolt Adjustment

OPERATION
4
4-33 doc110819 OPERATION
4.26 Stop Bolt Adjustment
Adjust the saw head stop bolts so that the distance between the top of the bed rail and a down-set
tooth of the blade is 25 mm. One of the stop bolts is shown below.

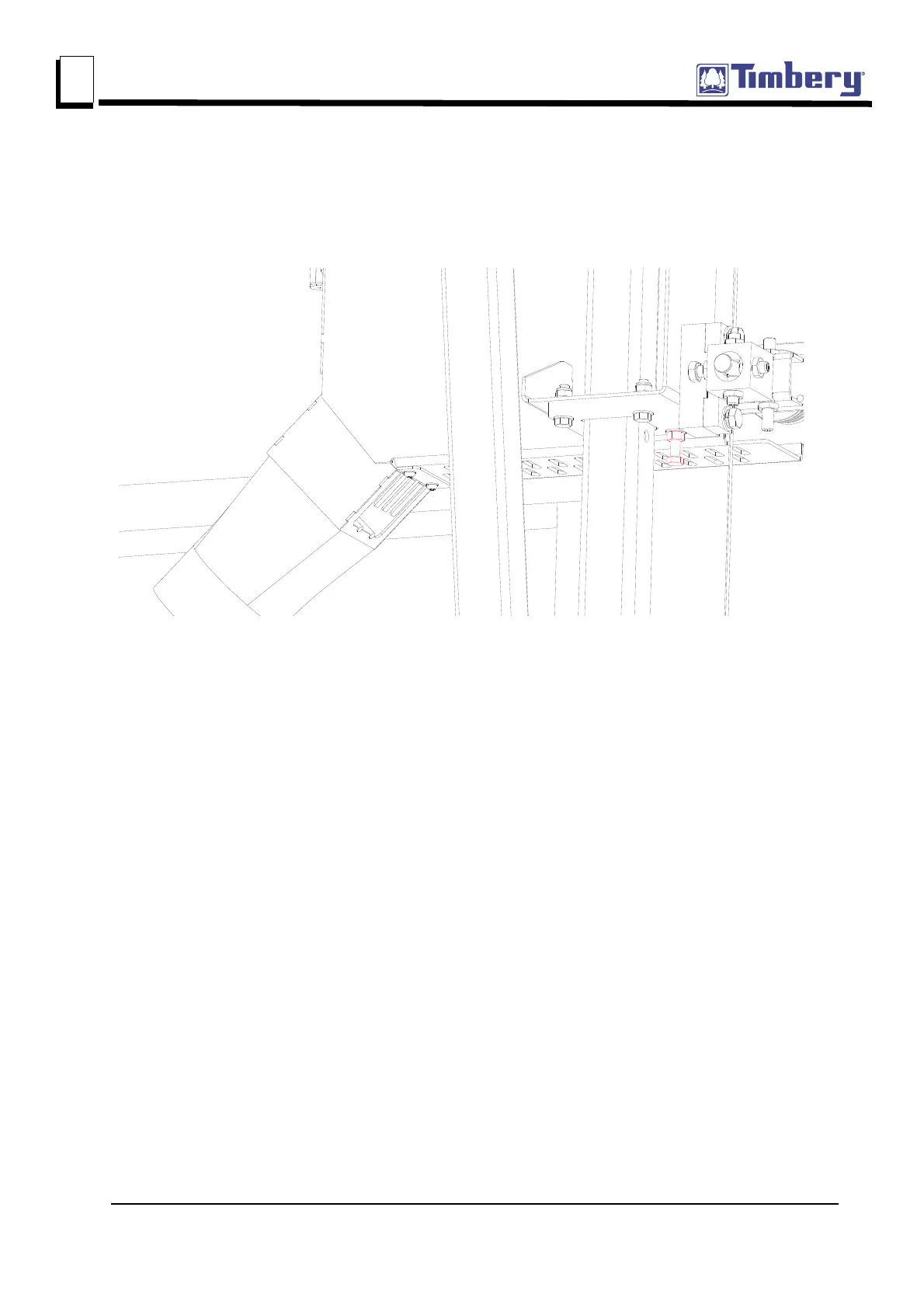

FIG. 4-25
