SAWMILL ASSEMBLY
Stop Bracket Installation
3
3-14 15doc110819 SAWMILL ASSEMBLY
3.6 Stop Bracket Installation
1. Install the stop brackets at both ends of the bed to prevent the saw head from sliding off the bed.
Attach the stop brackets on the outside surfaces of the front and last bed sections. Tighten the
nuts. The stop brackets can also be used to prevent accidental saw head movement as described
in Section 3.7 Saw Head Installation, step 5.
WARNING! Failure to apply the stop brackets to both ends of the
track rail may result in serious injury or equipment damage.
See Figure 3-10.

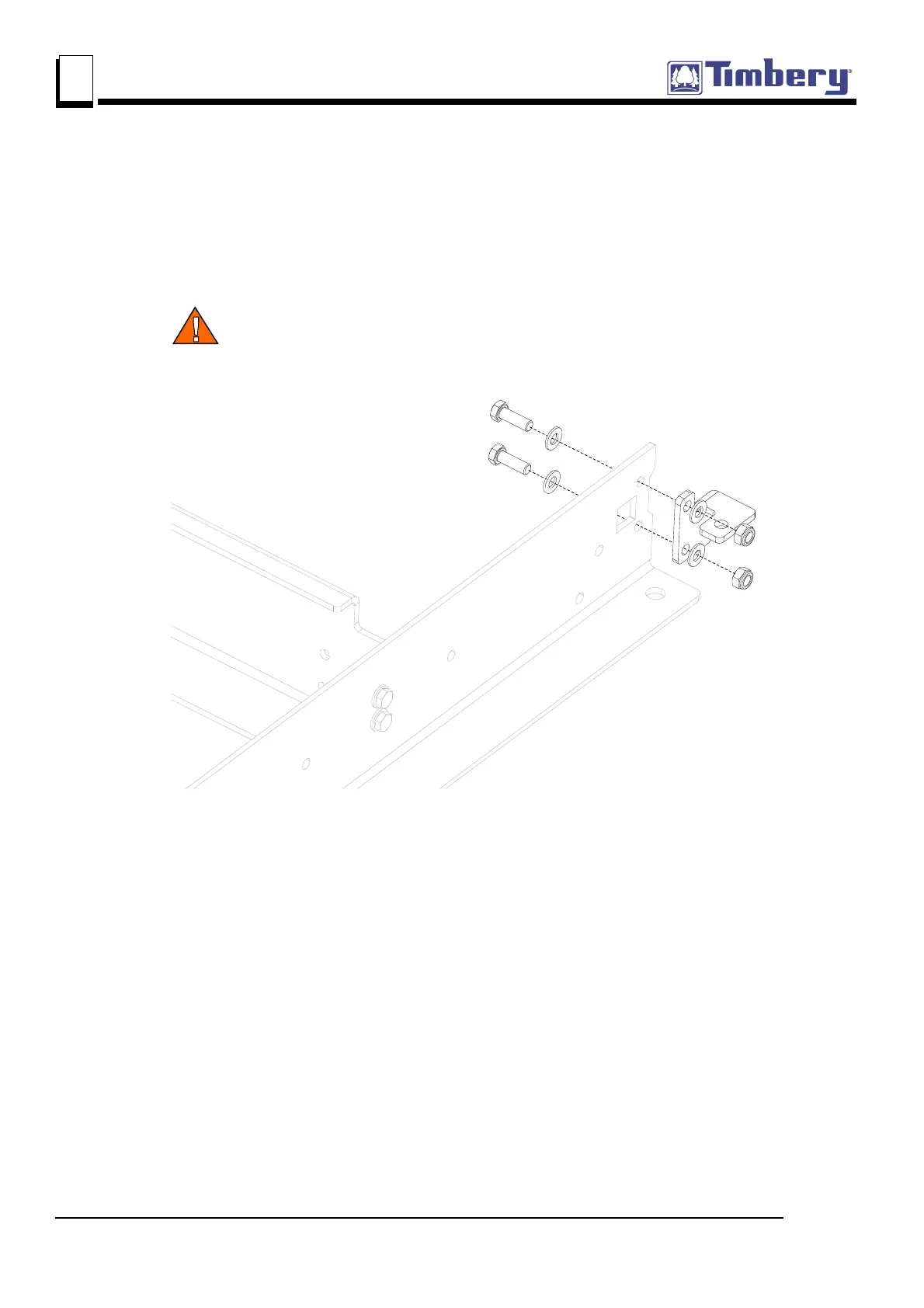

FIG. 3-14
