OPERATION Blade Guide Vertical Tilt Adjustment

OPERATION doc110819 4-14

4.12 Blade Guide Vertical Tilt Adjustment

Check that the blade guides does not tilt the blade up or down. A Blade Guide Alignment Tool is

provided to help you measure the vertical tilt of the blade.

1. Attach the alignment tool to the blade. Position the tool close to a blade guide roller. Be sure the tool

does not rest on a tooth or burr, and is lying flat against the blade.

See Figure 4-11.

2. Measure the distance from the bottom of the tool to the bed rail.

3. Move the saw head so that the front end of the tool is positioned above the bed rail.

4. Measure again the distance between the tool and bed rail.

5. The two measurements should be the same. If they are not, loosen one side set screw of the guide

assembly and adjust the blade guide in the vertical plane using the screws shown below.

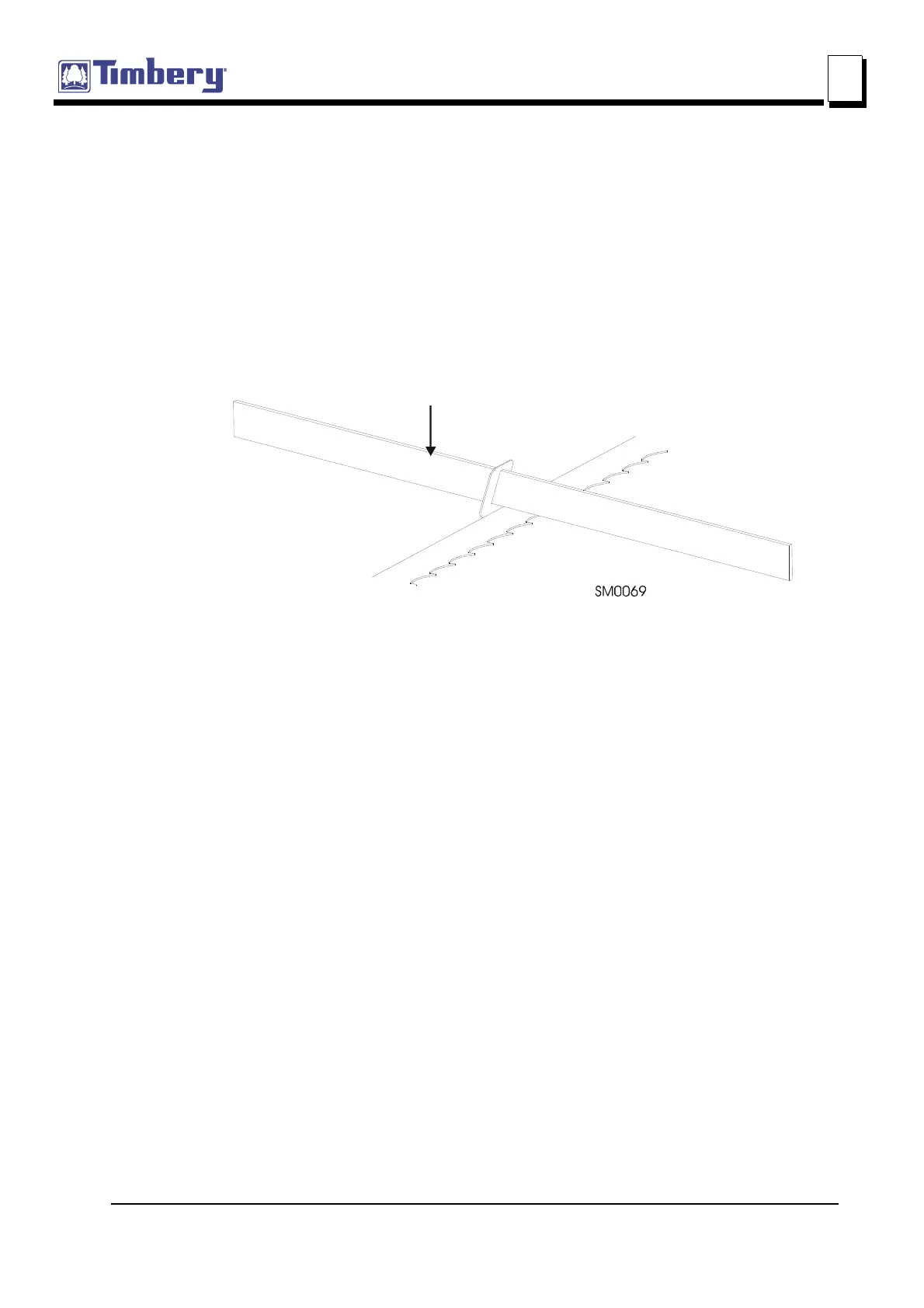

FIG. 4-11

Przypiąć przyrząd regulacyjny do piły

Clip alignment tool to blade
