SAWMILL ASSEMBLY
Saw Head Installation
SAWMILL ASSEMBLY 15doc110819 3-15
3
3.7 Saw Head Installation
WARNING! When unpacking the sawmill saw head, be extremely
careful and keep all persons away. Failure to do so may result in
serious injury or death.

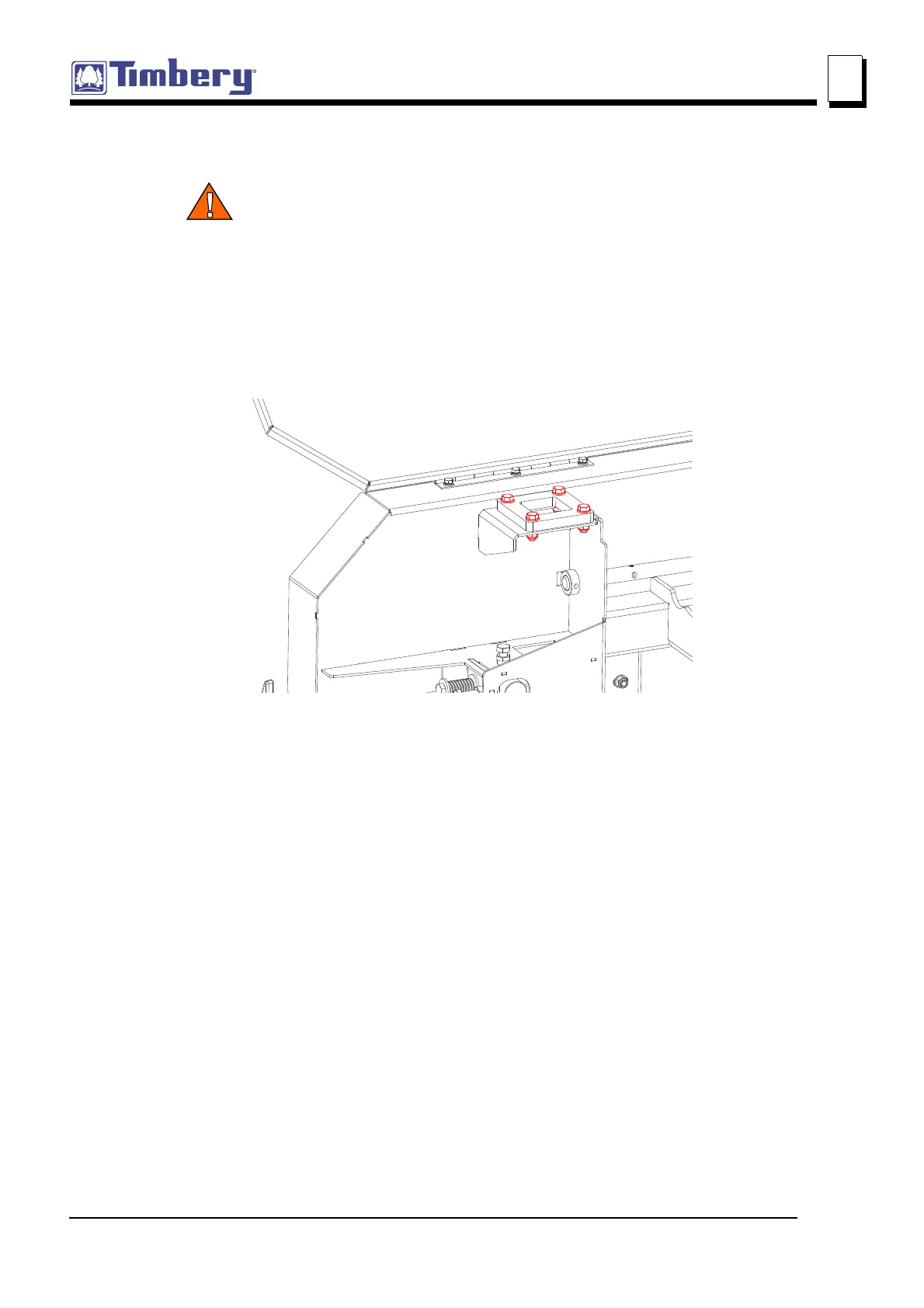

1. Before installation of the mast tubes, loosen the mounting bolts located on the mast guide bracket
shown below.
See Figure 3-11.
2. Insert the left mast tube (Part No. X100-1112) into the mast guide bracket on the left side of the
saw head (where the drive blade wheel is mouted) - see the figure below. Next, install the right
mast tube (Part No. X100-1118) in the same way on the right side of the saw head. Connect both
mast tubes with the cross tube (Part No. X100-1111) and the provided mounting hardware. Before
fastening the cross tube, make sure the water bottle mounting holes in this tube are on the right
side (the same as the operator’s handle). The left and right mast tubes can be connected with the
FIG. 3-15
