SAWMILL ASSEMBLY
Final Adjustments
3
3-32 15doc110819 SAWMILL ASSEMBLY
3.13 Final Adjustments
1. Tighten the mast guide bolts shown in Figure 3.15.
2. Adjust the track wiper so that the felt touches the track rail surface and the saw head moves freely
on the bed. Use the wing nuts to fasten the track wiper.
See Figure 3-22.
3. The side bearings must be properly clamped against the track rail so that there is no clearance
between the bearings and the track rail while the saw head is being moving. The side bearings
should lightly touch the vertical surface of the track rail. If adjustment is needed, use the bearing
nuts. Be sure to tighten the nuts to lock the bearings in the adjusted position. If the bearings press
too firmly against the rail, it will cause the saw head to not move easily on the rail and will result in
premature bearing wear. Make this adjustment for all side bearings.

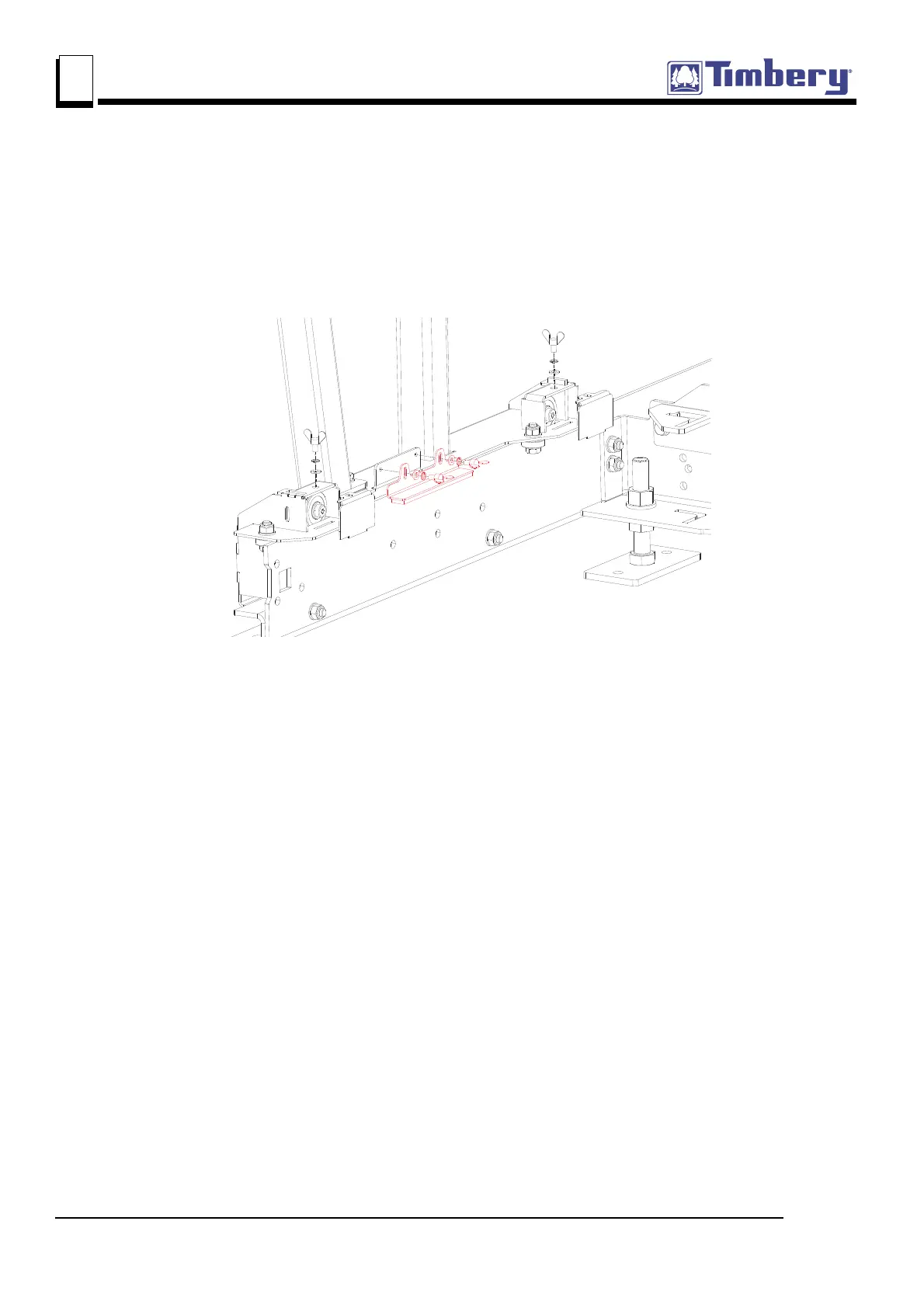

FIG. 3-27
