Timbery M120 Series - Sawdust Chute Installation

SAWMILL ASSEMBLY
Sawdust Chute Installation
SAWMILL ASSEMBLY 15doc110819 3-29
3

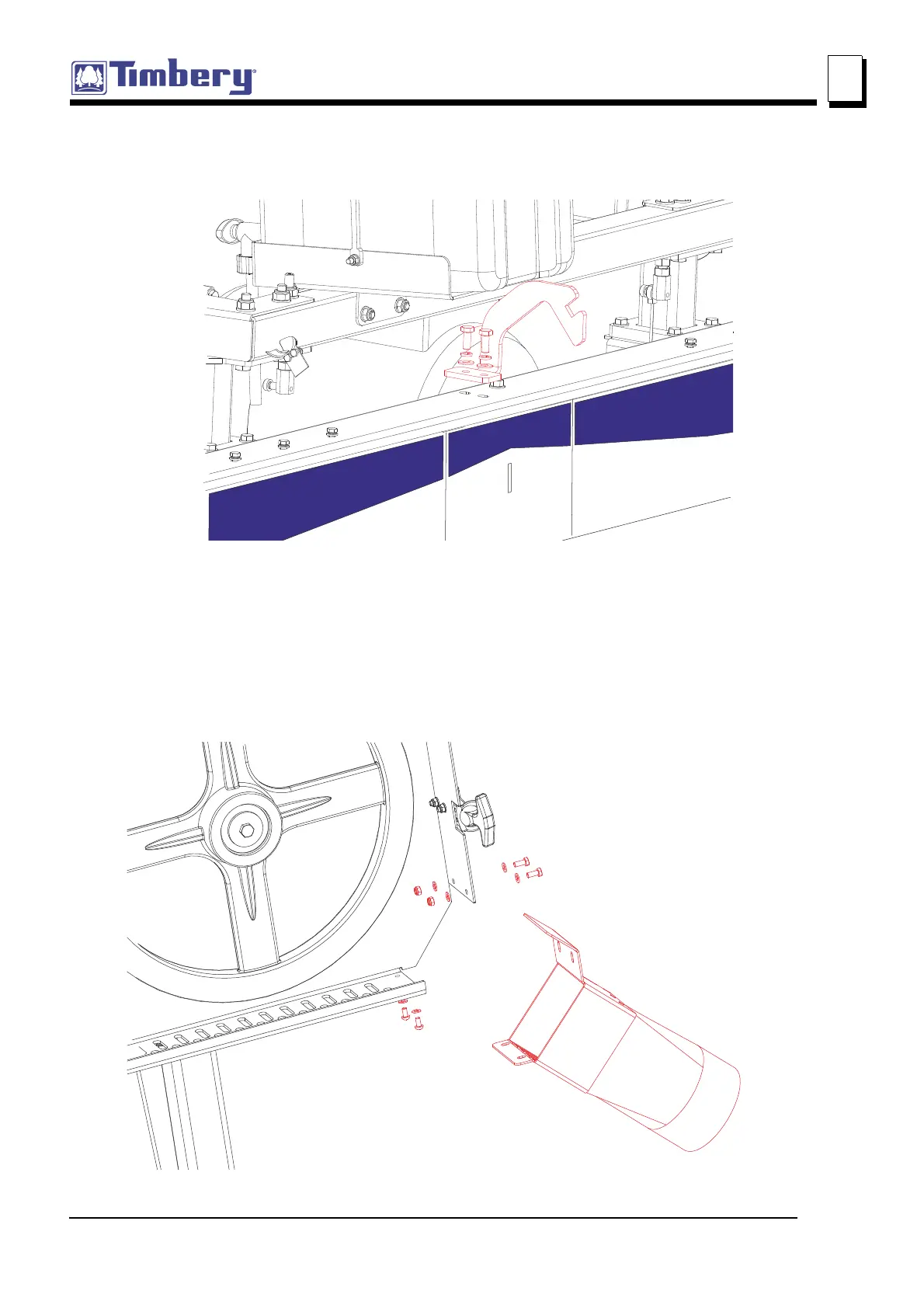

3. Install the saw head cover latch using the fasteners shown below.
See Figure 3-18.
3.10 Sawdust Chute Installation
1. Open the saw head cover and fasten the sawdust chute using the provided mouting hardware (four
hex head bolts with washers and nuts).
See Figure 3-19.
FIG. 3-23
FIG. 3-24
