SAWMILL ASSEMBLY
Water Bottle Installation
3
3-28 15doc110819 SAWMILL ASSEMBLY
place a cable clamp on one of the hex head bolts.
2. Slide the rubber water tube onto the water bottle pipe fitting. Place the other end of the water tube
on the fitting located on the blade guide.
See Figure 3-17.

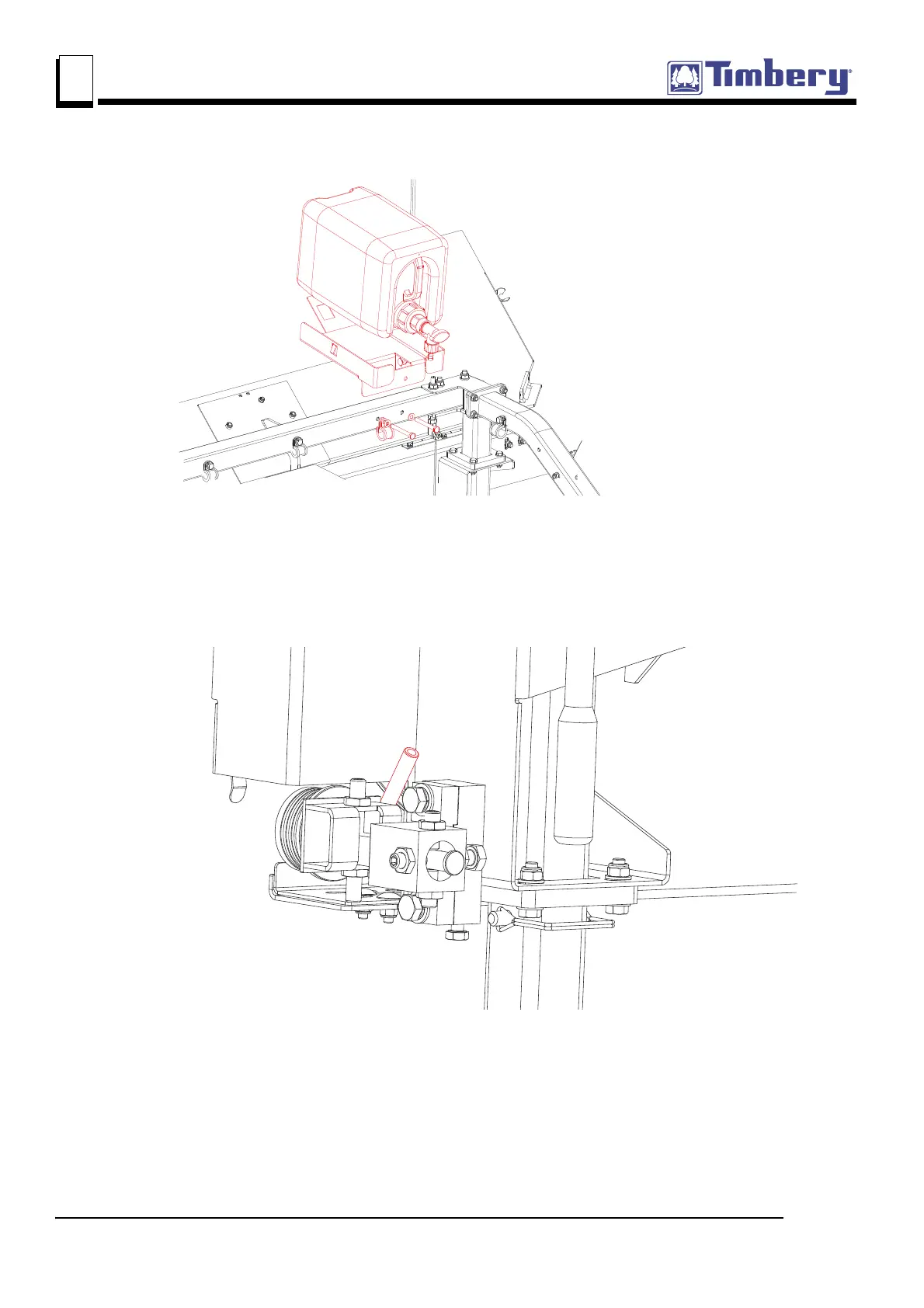

FIG. 3-21
FIG. 3-22
