SAWMILL ASSEMBLY
Water Bottle Installation
SAWMILL ASSEMBLY 15doc110819 3-27
3

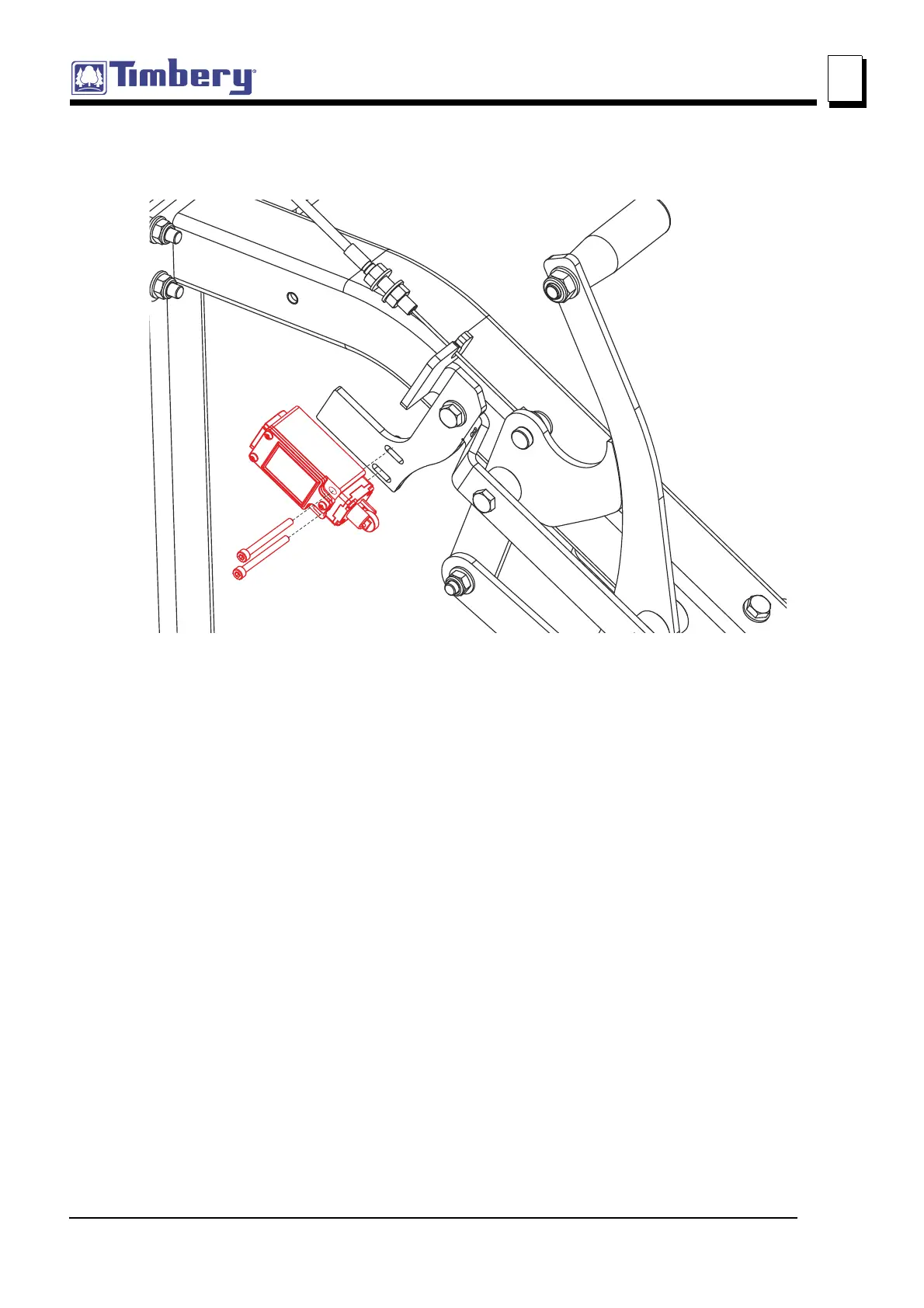

5. Install the safety switch to the clutch lever bracket using the four screws as shown below.
See Figure 3-16.
3.9 Water Bottle Installation
1. Install the water bottle tray to the mast cross tube using the fasteners shown below. Before bolting,
FIG. 3-20
