SAWMILL ASSEMBLY
Bed Leveling
3
3-12 15doc110819 SAWMILL ASSEMBLY
3.5 Bed Leveling
1. Using a min. 4-foot (120cm) level (or a laser level), level the bed in all directions.
NOTE: It is important that the bed be level for the saw head to travel smoothly over the rails.
See Figure 3-9.

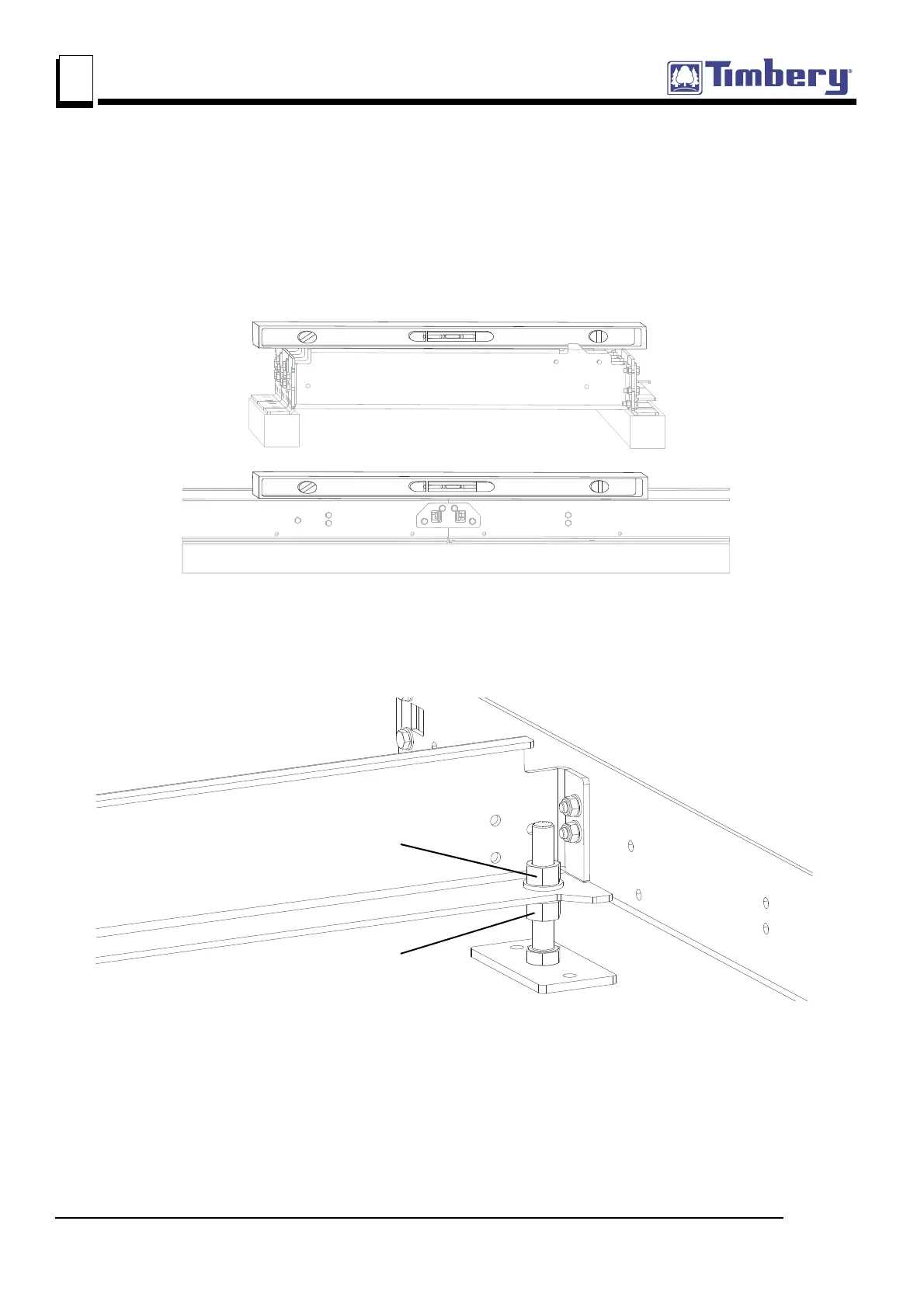

2. If your sawmill is equipped with the optional adjustable legs, use these legs to level the bed. Adjust
the bed height by turning the lower nut (B) and lock the bed position with the upper nut (A).
FIG. 3-11
FIG. 3-12
