OPERATION
4
4-5 doc110819 OPERATION
4.5 Tracking the Blade
After tensioning the blade, check its position on the blade wheels.

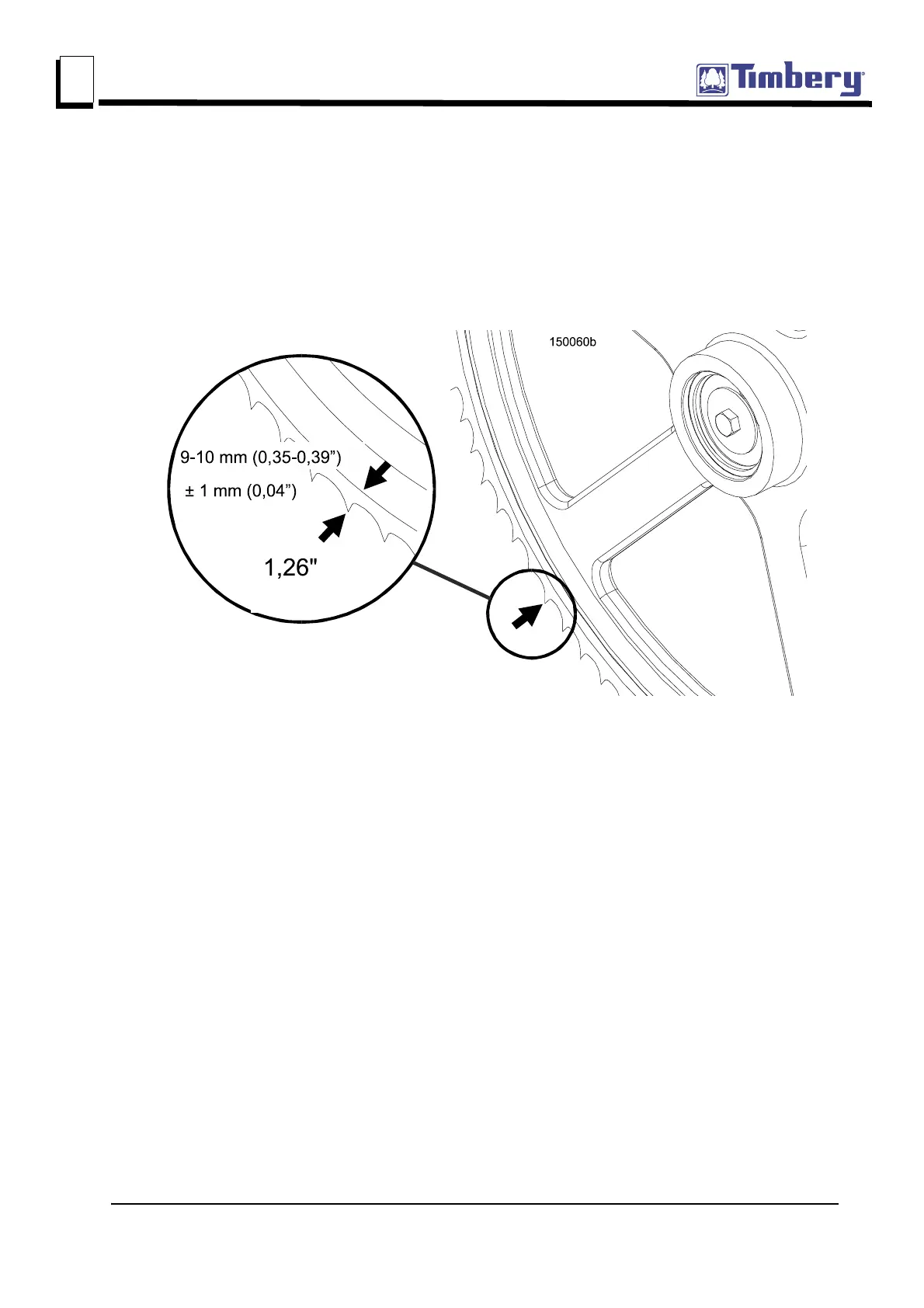

See Figure 4-2. Position 1 1/4” (32 mm) wide blades on the blade wheels so the blade teeth are
9 -10 mm (
±1 mm) out from the edge of the wheel. Make sure the rear edge of the blade is lying flat
on the wheels and is no more than 3 mm out from the edges of the blade wheel belts.
To track the blade properly on both blade wheels:
(CE electric version) - open the blade housing cover, set the key switch to the "H" position and
spin the blade wheel by hand a few times.
(Non-CE electric version) - open the blade housing cover and spin the blade wheel by hand
a few times.
(Gas engine version) - open the blade housing cover and spin the blade wheel by hand a few
times.
Cant control bolts are located at the rear of the saw head, on both sides. They can be used to
adjust where the blade travels on the blade wheels.
FIG. 4-2
