OPERATION Blade Height Scale Adjustment

OPERATION doc110819 4-18

4.15 Blade Height Scale Adjustment

After the entire sawmill has been aligned and all adjustments made, check that the blade height

scale indicates the true distance from the blade to the bed rails.

See Figure 4-15.

1. Move the saw head so the blade is positioned directly above one of the bed rails. Measure from the

bottom edge on a down-set tooth of the blade to the top of the bed rail.

2. Loosen the scale bracket mounting bolts and nuts, adjust the scale position until the scale indicator

reads the distance measured in the previous step. Retighten the bracket mounting bolts and nuts.

Example: if the measurement from blade to bed rail was 14 3/4" (375 mm), make sure the indicator

reads 14 3/4" (375 mm) on the scale.

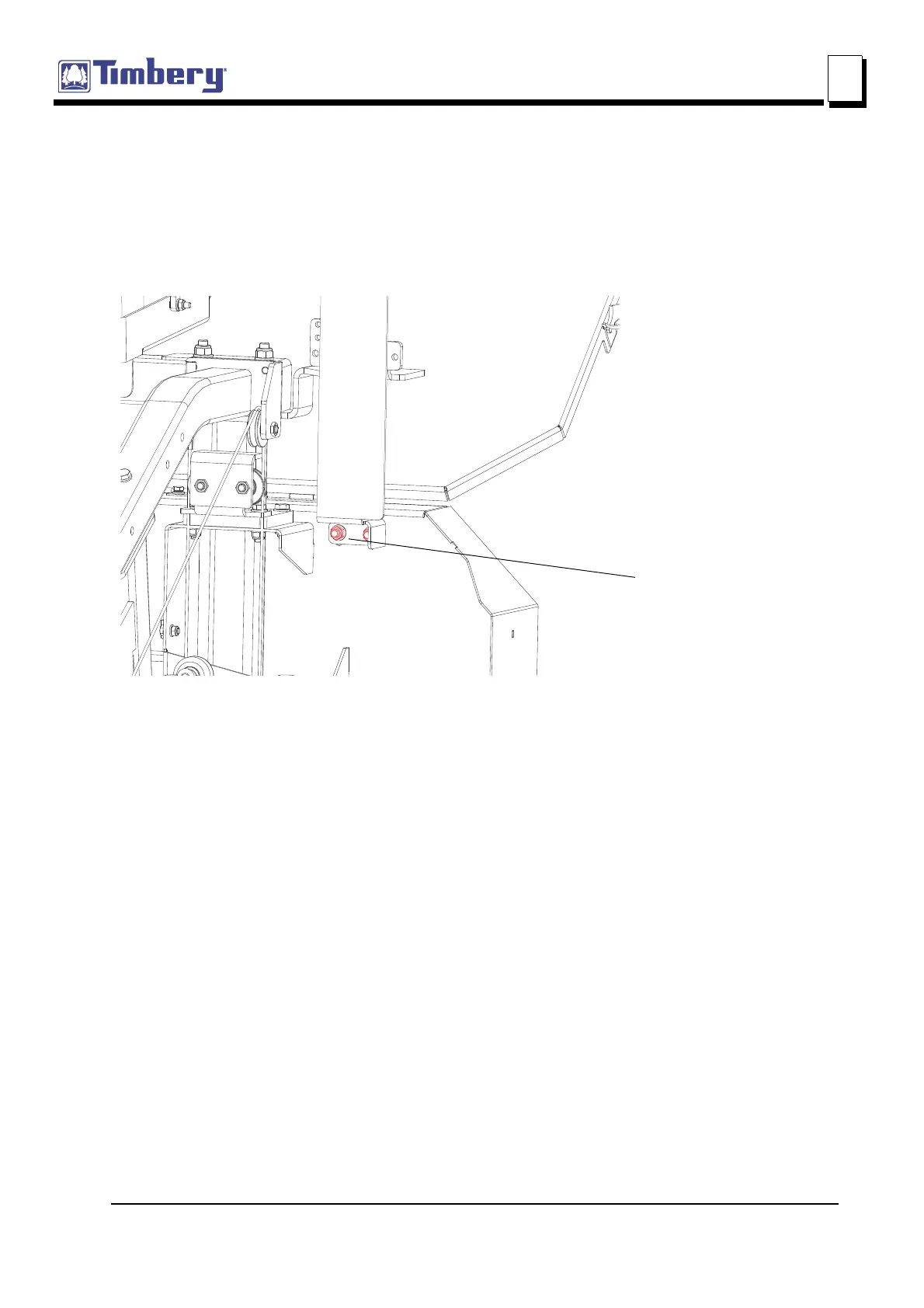

FIG. 4-15

zluzować nakrętki

mocujące wspornik

Loosen bracket

mounting nuts
