OPERATION Vertical Alignment of Idle-Side Blade Wheel

OPERATION doc110819 4-10

4.9 Vertical Alignment of Idle-Side Blade Wheel

1. Attach the alignment tool to the blade near the idle-side blade guide.

2. Measure from the bottom of the tool to the bed rail at both ends of the tool. If the measurements are

not equal (± 1,5 mm), adjust the idle-side blade wheel in the vertical plane.

See Figure 4-7. To tilt the idle-side blade wheel up, loosen the lower nut and adjustment screw

1/2 turn, loosen the nut on the upper adjustment screw and tighten the upper screw. Then tighten the

upper and lower nut.

To tilt the idle-side wheel down, loosen the upper adjustment screw 1/2 turn, loosen the nut on the

lower adjustment screw and tighten the lower screw. Tighten the upper and lower nut.

3. Recheck the vertical tilt of the idle-side blade wheel. If it is still incorrect, repeat the adjustment procedure.

4. Check the position of the blade on the blade wheel.

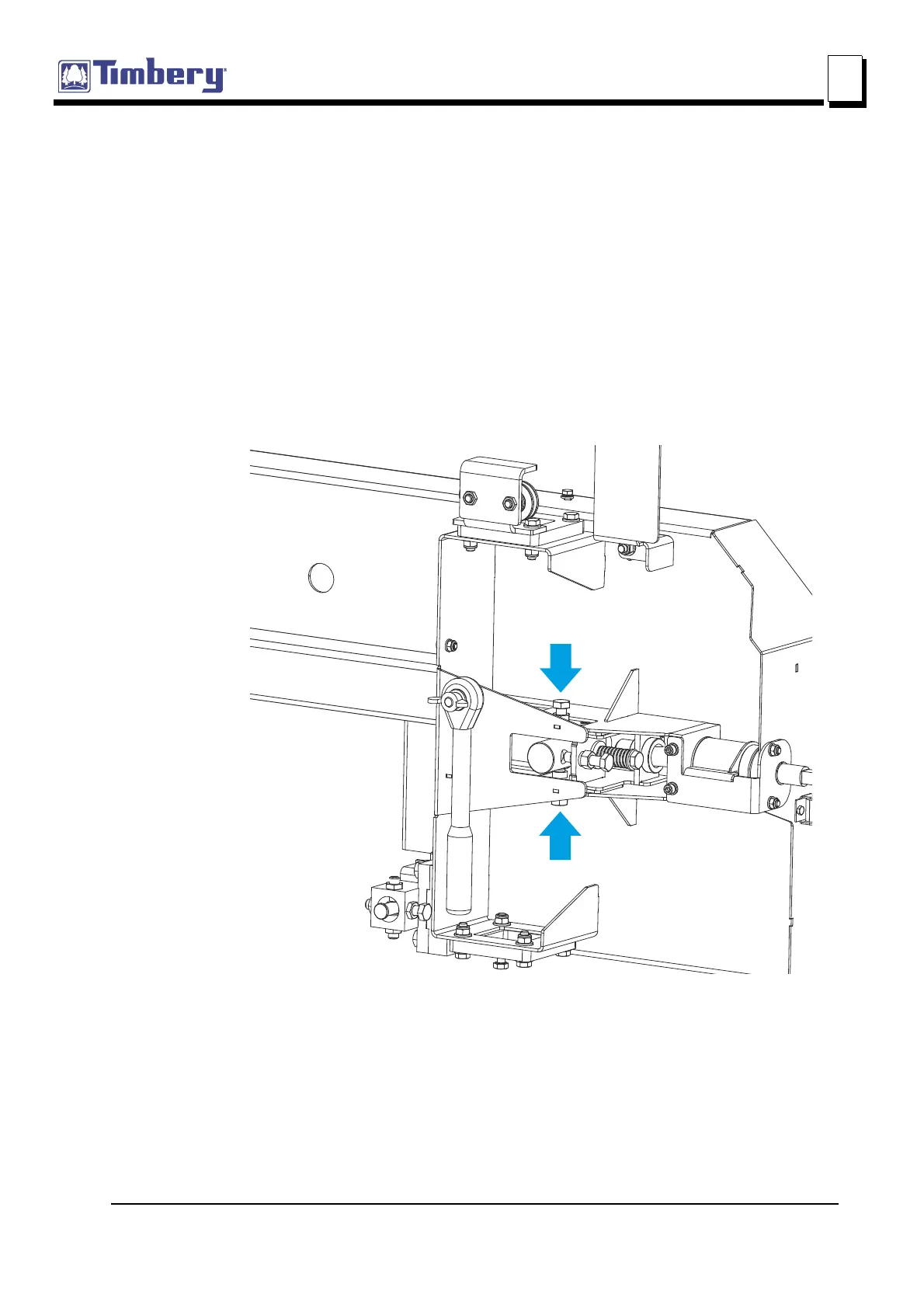

FIG. 4-7

Adjust the screws up to tilt

the idle-side wheel down;

adjust the screws down to

tilt the wheel up
