OPERATION
4
4-11 doc110819 OPERATION

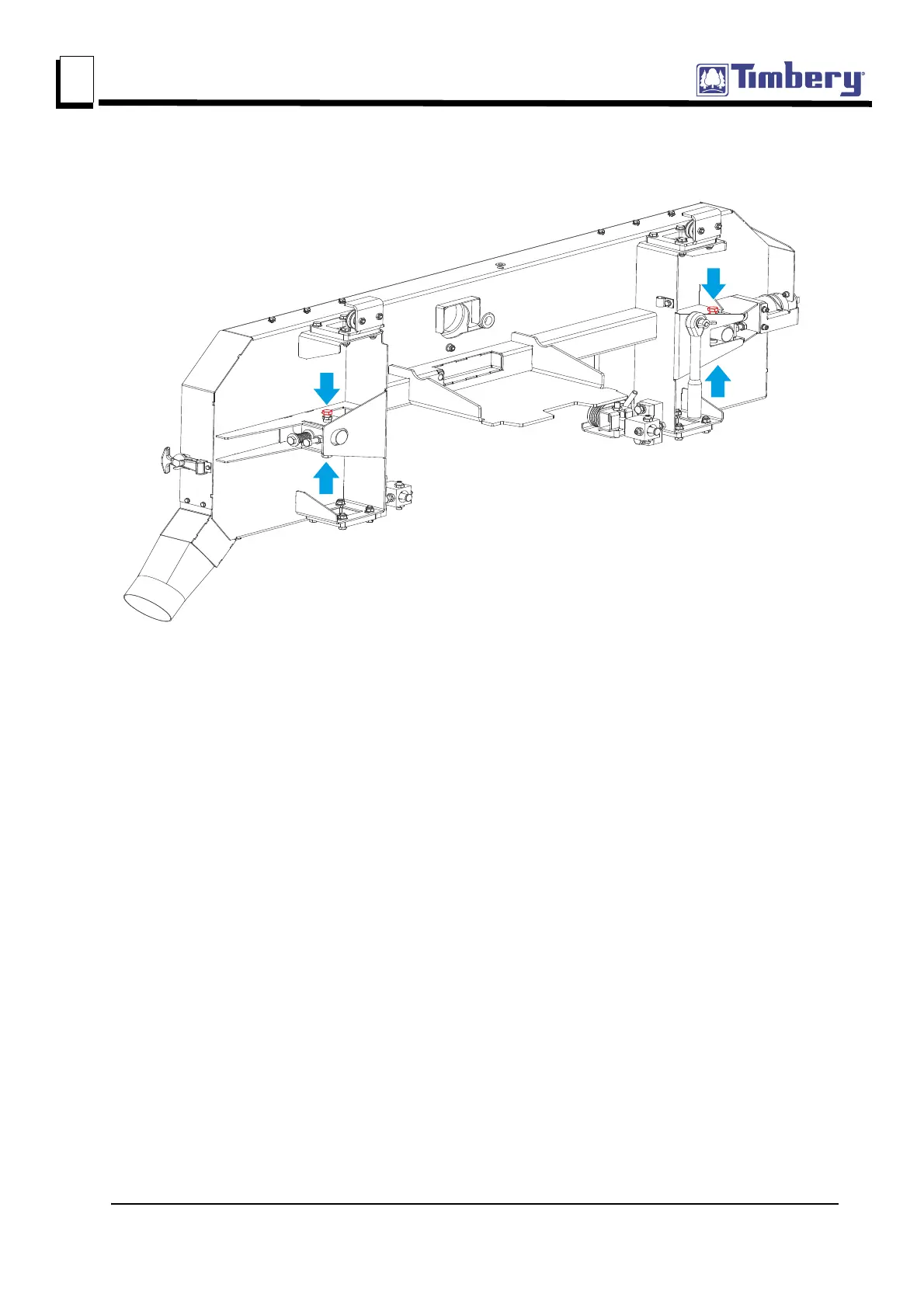

See Figure 4-8. The figure below shows the screws for aligning the blade on the blade wheels.
FIG. 4-8
