Timbery M120 Series - Sawmill Bed Assembly

SAWMILL ASSEMBLY
Sawmill Bed Assembly
3
3-8 15doc110819 SAWMILL ASSEMBLY
3.3 Sawmill Bed Assembly
WARNING! Place the sawmill bed on firm and level ground. Failure
to do so may cause the saw head to tip, causing serious injury or
death.

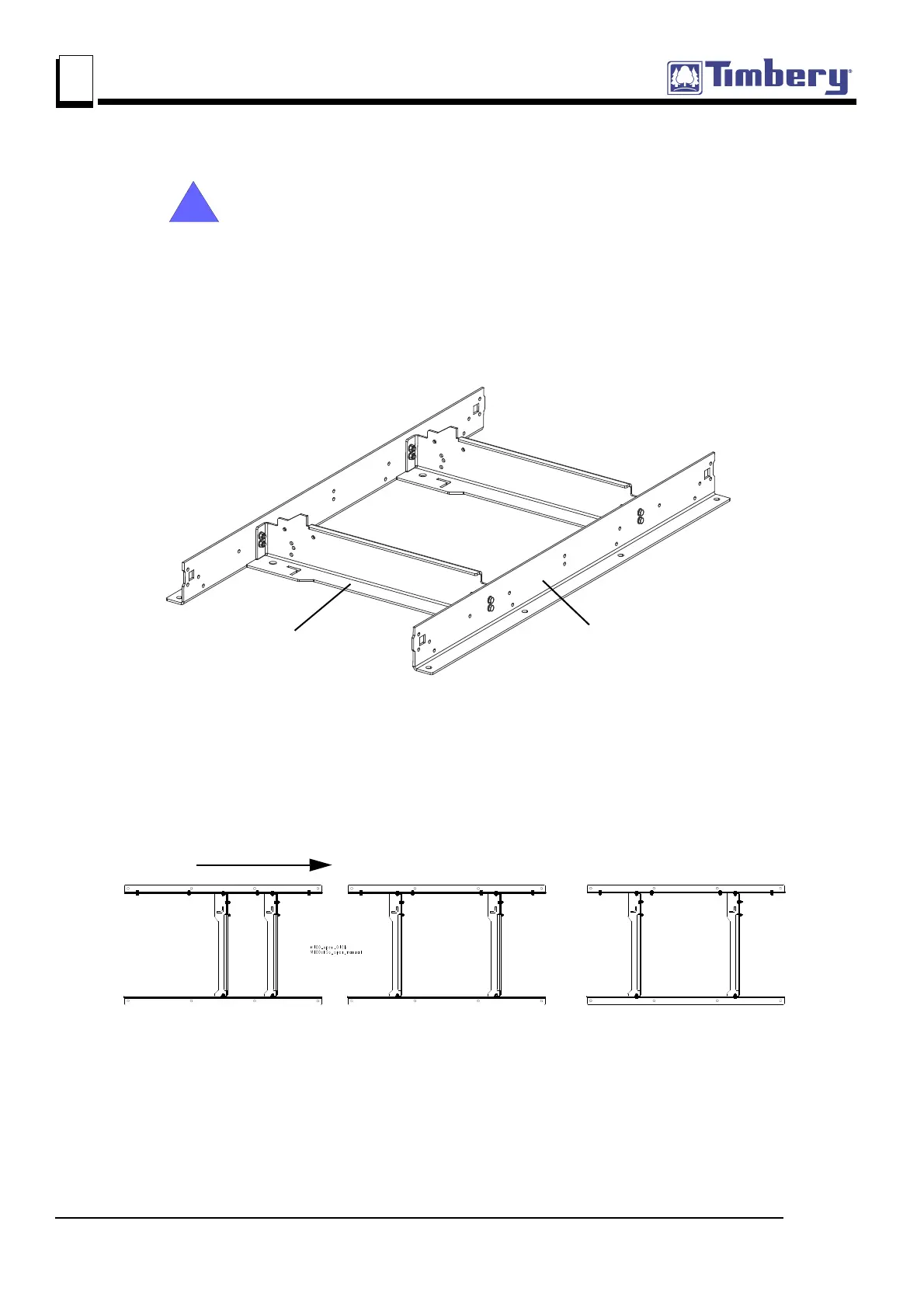

1. Assemble each bed section. To do this, place the track rails on level ground and attach them to the
cross rails using the M10x30 bolts.
See Figure 3-4.
2. Position all three assembled bed sections end-to-end in the order shown below.
See Figure 3-5.
3. Connect the bed sections using the connecting plate, clamp and bolts shown in Figure 3-6.
Set the clamp in place by inserting the larger notch
in first and tilting the clamp in then upward to
catch the smaller notch
.
FIG. 3-4
FIG. 3-5
!
Cross Rail
Track Rail
Direction of Cut
Bed Section
