SAWMILL ASSEMBLY
Saw Head Installation
3
3-16 15doc110819 SAWMILL ASSEMBLY
cross tube before inserting them into the guide brackets.
3. Place the strap around the saw head so that the saw head remains stable while it is being lifted.
Lift the saw head - using a winch or other suitable lifting equipment and the strap - and set it on any
raised surface and secure. The saw head should be set at the top position on the mast so that you
can easily access the bottom ends of the vertical mast tubes and the holes at half the height of the
tubes. Install the two head-locking stop pins in these holes on both tubes. These pins will prevent
the saw head from lowering.

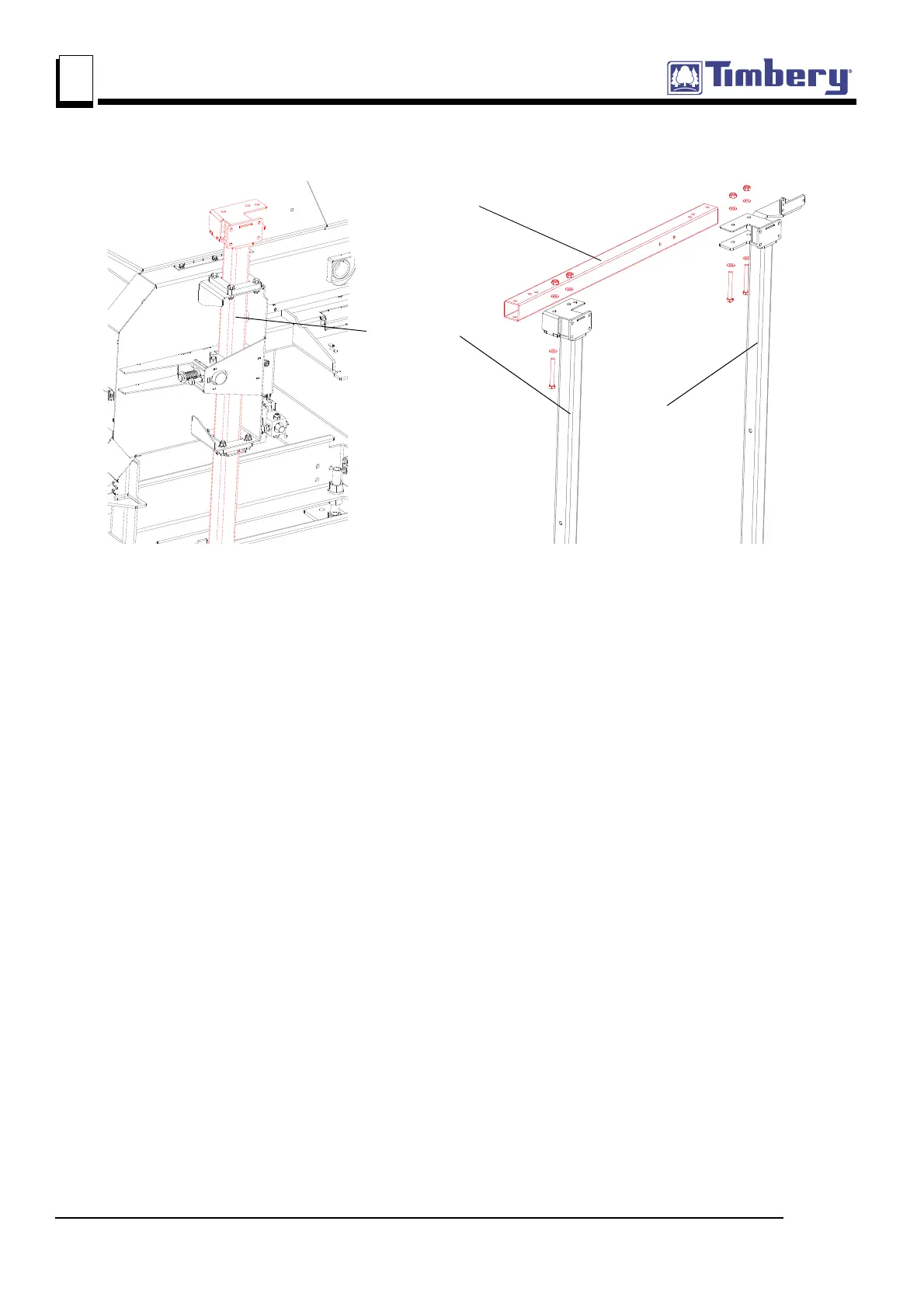

X100-1112
X100-1111
X100-1118
